Exploded View

  1. Oil Pump Exploded View

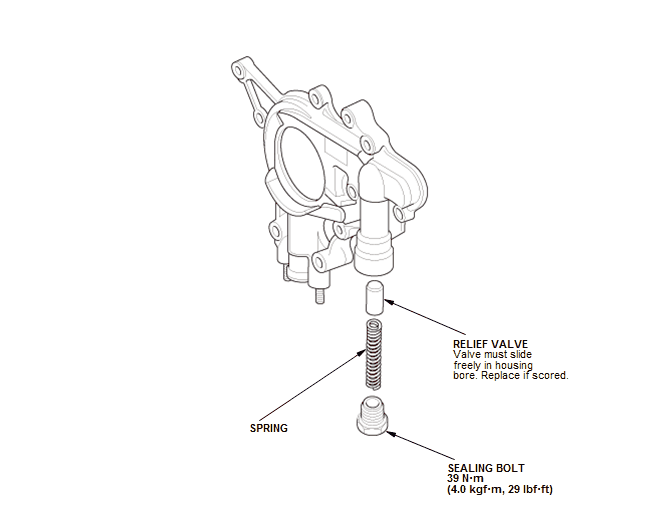

    Fig 1: Exploded View Of Oil Pump Replacement Components With Torque Specifications
    GHH99595Courtesy of HONDA, U.S.A., INC.
