PCM Connector for Inputs and Outputs (2014 2015)

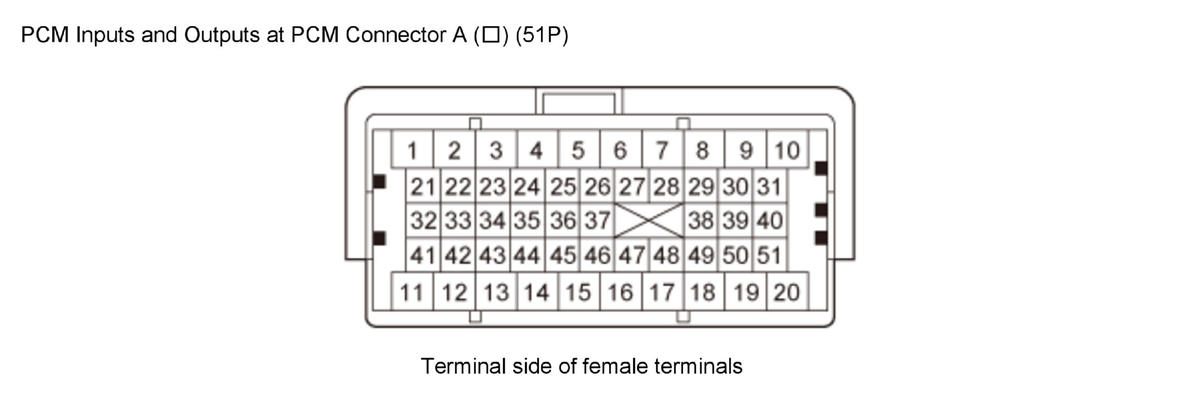

GHH319953Courtesy of HONDA, U.S.A., INC.
Terminal number Wire color Terminal name Description Signal
1 PUR IG1 VB SOL (7.5A) (POWER SOURCE FOR SOLENOID VALVES) Power source for solenoid valves With vehicle in ON mode: battery voltage
2 PNK SLS (SHIFT LOCK SOLENOID) Drives shift lock solenoid With vehicle in ON mode, in P, brake pedal pressed, and accelerator pedal released: about 0 V
3 BLK STRLY (STARTER RELAY 1) Drives starter cut relay With vehicle in ON mode: battery voltage
4 ORN STRLY2 (STARTER RELAY 2) Drives starter cut relay 2 With vehicle in ON mode: battery voltage
5 GRN FAN LO (RADIATOR FAN CONTROL) Drives radiator fan control unit With condenser fan running: duty controlled With condenser fan stopped: about 0 V
6 BRN FAN HIGH (RADIATOR FAN CONTROL) Drives radiator fan relay With radiator fan running: about 0 V With radiator fan stopped: battery voltage
7 RED M RLY (PGM-FI MAIN RELAY 1) Drives PGM-FI main relay 1 With vehicle in ON mode: about 0 V With vehicle in OFF (LOCK) mode: battery voltage
8 GRY IMOFLR (IMMOBILIZER FUEL PUMP RELAY) Drives PGM-FI main relay 2 0 V for 2 seconds after turn the vehicle to ON mode, then battery voltage
9 WHT F-CAN_H (F-CAN COMMUNICATION SIGNAL HIGH) Sends and receives communication signal With vehicle in ON mode: pulses
10 BLK F-CAN_L (F-CAN COMMUNICATION SIGNAL LOW) Sends and receives communication signal With vehicle in ON mode: pulses
11 Not used Not used
12 Not used Not used
13 WHT DBW RLY(ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY) Drives electronic throttle control system (ETCS) control relay With vehicle in ON mode: about 0 V
14 PNK LAF RLY (PGM-FI SUBRELAY) Drives PGM-FI subrelay With vehicle in ON mode: about 0 V
15 *1 RED VSS (EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE) Drives EVAP canister vent shut valve With vehicle in ON mode: about 0 V
16 WHT ATP-R (TRANSMISSION RANGE SWITCH R POSITION) Detects transmission range switch R position signal With vehicle in ON mode:
  • In R: about 0 V
  • In any position other than R: more than 5.0 V

*1: USA and Canada models

Terminal number Wire color Terminal name Description Signal
17 PNK INJ RLY (INJECTOR CONTROL MODULE RELAY) Drives injector control module relay With vehicle in ON mode: about 0 V
18 YEL IG1 FUEL PUMP (IGNITION SIGNAL) Detects ignition signal With vehicle in ON mode: battery voltage
19 *1 ORN VCC7 (SENSOR VOLTAGE) Provides sensor reference voltage With vehicle in ON mode: about 5.0 V
20 BLK SG7 (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
21 RED VGM (MASS AIR FLOW (MAF) SENSOR -SIDE) Ground for MAF sensor signal
22 Not used Not used
23 PUR ACCL (A/C CLUTCH RELAY) Drives A/C clutch relay With compressor ON: about 0 V With compressor OFF: battery voltage
24 ORN DISTANCE SW GND (BRAKE PEDAL POSITION SWITCH) Detects brake pedal position switch signal With vehicle in ON mode and brake pedal released: battery voltage With vehicle in ON mode and brake pedal pressed: about 0 V
25 PUR STOP SW (BRAKE PEDAL POSITION SWITCH) Detects brake pedal position switch signal With brake pedal released: about 0 V With brake pedal pressed: battery voltage
26 WHT STRLD (STARTER SIGNAL LOAD) Detects starter cut relay With starter ON: battery voltage
27 LT BLU STS (STARTER SWITCH SIGNAL) Detects starter switch signal With vehicle in START mode: battery voltage With vehicle in other than START mode: about 0 V
28 GRY FPCD (FUEL PUMP CONTROL MODULE DIAGNOSIS) Detects fuel pump control module diagnosis At idle: about 10.0 V
29 PNK FPC (FUEL PUMP CONTROL) Sends fuel pump control module control signal Pulses for 2 seconds after turn the vehicle to ON mode, then about 0 V At idle: pulses (battery voltage)
30 *1 PUR PTANK (FUEL TANK PRESSURE (FTP) SENSOR) Detects FTP sensor signal With vehicle in ON mode: about 2.5 V
31 RED TW2 SNSR (ENGINE COOLANT TEMPERATURE (ECT) SENSOR 2) Detects ECT sensor 2 signal With vehicle in ON mode: about 0.1-4.8 V (depending on engine coolant temperature)
32 GRN VGP (MASS AIR FLOW (MAF) SENSOR +SIDE) Detects MAF sensor signal At idle with warmed up engine and no electrical load: about 0.5-1.6 V
33 WHT SUPP (PADDLE SHIFTER + (UPSHIFT SWITCH)) Detects paddle shifter + (upshift switch) signal With vehicle in ON mode:
  • Paddle shifter + (upshift switch) pressed: about 0 V
  • Paddle shifter + (upshift switch) released: battery voltage
34 RED SDNP (PADDLE SHIFTER - (DOWNSHIFT SWITCH)) Detects paddle shifter - (downshift switch) signal With vehicle in ON mode:
  • Paddle shifter - (downshift switch) pressed: about 0 V
  • Paddle shifter - (downshift switch) released: battery voltage
35 Not used Not used
36 Not used Not used
37 LT GRN ATP-P (TRANSMISSION RANGE SWITCH P POSITION) Detects transmission range switch P position signal With vehicle in ON mode:
  • In P: about 0 V
  • In any position other than P: more than 5.0 V

*1: USA and Canada models

Terminal number Wire color Terminal name Description Signal
38 PUR S-NET (SERIAL COMMUNICATION FOR IMMOBILIZER) Sends and receives communication signal With vehicle in ON mode: pulses
39 ORN SCS (SERVICE CHECK SIGNAL) Detects service check signal With service check signal shorted : about 0 V With service check signal opened: about 5.0 V
40 GRN NEP (ENGINE SPEED PULSE) Outputs engine speed pulse With engine running: pulses
41 RED VCC3 (SENSOR VOLTAGE) Provides sensor reference voltage With vehicle in ON mode: about 5.0 V
42 LT BLU VCC4 (SENSOR VOLTAGE) Provides sensor reference voltage With vehicle in ON mode: about 5.0 V
43 BLK PGND (SENSOR GROUND Sensor ground Less than 0.2 V at all times
44 BLK SGND (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
45 GRN AP1 (ACCELERATOR PEDAL POSITION (APP) SENSOR A) Detects APP sensor A signal With vehicle in ON mode and accelerator pedal pressed: about 4.7 V With vehicle in ON mode and accelerator pedal released: about 1.0 V
46 PNK AS2 (ACCELERATOR PEDAL POSITION (APP) SENSOR B) Detects APP sensor B signal With vehicle in ON mode and accelerator pedal pressed: about 2.3 V With vehicle in ON mode and accelerator pedal released: about 0.5 V
47 Not used Not used
48 Not used Not used
49 GRN VSP OUT (VEHICLE SPEED SIGNAL OUTPUT) Sends vehicle speed signal Depending on vehicle speed: pulses
50 GRN CRK OUT (CRANKSHAFT POSITION (CKP) OUTPUT SIGNAL) Sends CKP signal to engine mount control unit With engine running: pulses
51 RED TDC OUT (CAMSHAFT POSITION (CMP) OUTPUT SIGNAL) Sends CMP signal to engine mount control unit With engine running: pulses

*1: USA and Canada models

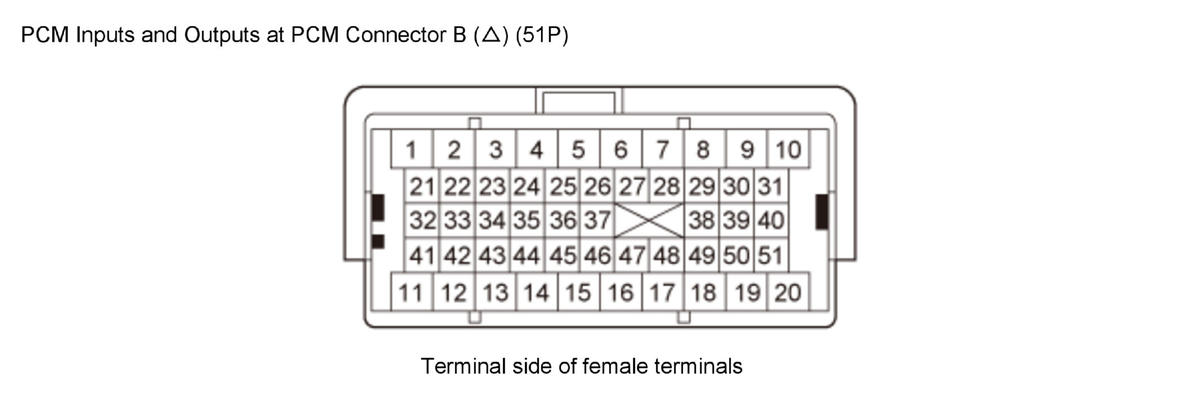

GHH319954Courtesy of HONDA, U.S.A., INC.
Terminal number Wire color Terminal name Description Signal
1 TAN IG1(VBSOL) (POWER SOURCE FOR SOLENOID VALVES) Power source for solenoid valves With vehicle in ON mode: battery voltage
Terminal number Wire color Terminal name Description Signal
2 BLU SHA (SHIFT SOLENOID VALVE A) Drives shift solenoid valve A With engine running:
  • In any gear other than 1st and 2nd: about 0 V
  • In 1st and 2nd: battery voltage
3 GRN SHC (SHIFT SOLENOID VALVE C) Drives shift solenoid valve C With engine running:
  • In N, D, and S during no lock-up condition: about 0 V
  • In P, R, D, and S during lock-up condition: battery voltage
4 PNK SHB (SHIFT SOLENOID VALVE B) Drives shift solenoid valve B With engine running:
  • In any gear other than 1st, 2nd, and 3rd (upshift condition): about 0 V
  • In 1st, 2nd, and 3rd (upshift condition): battery voltage
5 YEL PLA (LINE PRESSURE SOLENOID VALVE A) Drives line pressure solenoid valve A With engine running:
  • In low line pressure mode: about 0 V
  • In normal line pressure mode: battery voltage
6 RED LSA (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A) Drives A/T clutch pressure control solenoid valve A With vehicle in ON mode: current controlled
7 PUR LSB (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B) Drives A/T clutch pressure control solenoid valve B With vehicle in ON mode: current controlled
8 PNK LSC (A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE C) Drives A/T clutch pressure control solenoid valve C With vehicle in ON mode: current controlled
9 TAN LSD (AT CLUTCH PRESSURE CONTROL SOLENOID VALVE D) Drives A/T clutch pressure control solenoid valve D With vehicle in ON mode: current controlled
10 YEL IGP (POWER SOURCE) Power source for PCM With vehicle in ON mode: battery voltage
11 BLK GND1 (POWER GROUND) Ground for PCM Less than 0.2 V at all times
12 Not used Not used
13 Not used Not used
14 BRN INJ Ti 1 (No. 1 INJECTOR CONTROL DRIVE SIGNAL) No. 1 injector drive signal With engine running: pulses
15 RED INJ Ti 2 (No. 2 INJECTOR CONTROL DRIVE SIGNAL) No. 2 injector drive signal
16 BLU INJ Ti 3 (No. 3 INJECTOR CONTROL DRIVE SIGNAL) No. 3 injector drive signal
17 TAN INJ Ti 4 (No. 4 INJECTOR CONTROL DRIVE SIGNAL) No. 4 injector drive signal
18 PNK INJ Ti 5 (No. 5 INJECTOR CONTROL DRIVE SIGNAL) No. 5 injector drive signal
19 LT BLU INJ Ti 6 (No. 6 INJECTOR CONTROL DRIVE SIGNAL) No. 6 injector drive signal
20 BRN GND2 LG (LOGIC GROUND) Ground for PCM Less than 0.2 V at all times
21 YEL IGN PULSE5 (No. 5 IGNITION COIL PULSE) Drives No. 5 ignition coil With vehicle in ON mode: about 0 V With engine running: pulses
22 TAN IGN PULSE6 (No. 6 IGNITION COIL PULSE) Drives No. 6 ignition coil With vehicle in ON mode: about 0 V With engine running: pulses
Terminal number Wire color Terminal name Description Signal
23 LT GRN ATPD (TRANSMISSION RANGE SWITCH D POSITION) Detects transmission range switch D position signal With vehicle in ON mode:
  • In D: about 0 V
  • In any position other than D: more than 5.0 V
24 TAN OP2SW (TRANSMISSION FLUID PRESSURE SWITCH A (2ND CLUTCH)) Detects transmission fluid pressure switch A (2nd clutch) signal With engine running:
  • With 2nd clutch pressure: about 0 V
  • Without 2nd clutch pressure: battery voltage
25 LT BLU OP3SW (TRANSMISSION FLUID PRESSURE SWITCH B (3RD CLUTCH)) Detects transmission fluid pressure switch B (3rd clutch) signal With engine running:
  • With 3rd clutch pressure: about 0 V
  • Without 3rd clutch pressure: battery voltage
26 BLU OP4SW (TRANSMISSION FLUID PRESSURE SWITCH C (4TH CLUTCH)) Detects transmission fluid pressure switch C (4th clutch) signal With engine running:
  • With 4th clutch pressure: about 0 V
  • Without 4th clutch pressure: battery voltage
27 LT BLU OP5SW (TRANSMISSION FLUID PRESSURE SWITCH D (5TH CLUTCH)) Detects transmission fluid pressure switch D (5th clutch) signal With engine running:
  • With 5th clutch pressure: about 0 V
  • Without 5th clutch pressure: more than 5.0 V
28 GRY OP6SW (TRANSMISSION FLUID PRESSURE SWITCH E (6TH CLUTCH)) Detects transmission fluid pressure switch E (6th clutch) signal With engine running:
  • With 6th clutch pressure: about 0 V
  • Without 6th clutch pressure: more than 5.0 V
29 YEL ATPFWD (TRANSMISSION RANGE SWITCH FWD POSITION) Detects transmission range switch FWD position signal With vehicle in ON mode:
  • In D and S: about 0 V
  • In any position other than D and S: more than 5.0 V
30 PUR ATPN (TRANSMISSION RANGE SWITCH N POSITION) Detects transmission range switch N position signal With vehicle in ON mode:
  • In N: about 0 V
  • In any position other than N: battery voltage
31 RED THL1 (THROTTLE POSITION (TP) SENSOR A) Detects TP sensor A signal With vehicle in ON mode and accelerator pedal pressed: about 3.9 V With vehicle in ON mode and accelerator pedal released: about 0.9 V
32 BLU IGN PULSE3 (No. 3 IGNITION COIL PULSE) Drives No. 3 ignition coil With vehicle in ON mode: about 0 V With engine running: pulses
33 LT BLU IGN PULSE4 (No. 4 IGNITION COIL PULSE) Drives No. 4 ignition coil With vehicle in ON mode: about 0 V With engine running: pulses
34 RED ATPS (TRANSMISSION RANGE SWITCH S POSITION) Detects transmission range switch S position signal With vehicle in ON mode:
  • In S: about 0 V
  • In any position other than S: battery voltage
35 WHT PF (FUEL RAIL PRESSURE SENSOR) Detects fuel rail pressure sensor signal With vehicle in ON mode: about 1.4 V At idle: about 1.1 V
36 Not used Not used
37 BRN OPPLSW (LINE PRESSURE SWITCH) Detects line pressure switch signal With engine running:
  • With low line pressure mode: about 0 V
  • With normal line pressure mode: about 5.0 V
38 PNK ATPRVS (TRANSMISSION RANGE SWITCH RVS POSITION) Detects transmission range switch RVS position signal With vehicle in ON mode:
  • In R: about 0 V
  • In any position other than R: more than 5.0 V
Terminal number Wire color Terminal name Description Signal
39 GRN TATF (ATF TEMPERATURE SENSOR) Detects ATF temperature sensor signal With vehicle in ON mode: about 0.2-4.0 V (about 1.8 V at operating temperature, depending on ATF temperature)
40 TAN THL2 (THROTTLE POSITION (TP) SENSOR B) Detects TP sensor B signal With vehicle in ON mode and accelerator pedal pressed: about 4.1 V With vehicle in ON mode and accelerator pedal released: about 1.7 V
41 WHT IGN PULSE1 (No. 1 IGNITION COIL PULSE) Drives No. 1 ignition coil With vehicle in ON mode: about 0 V With engine running: pulses
42 PUR IGN PULSE2 (No. 2 IGNITION COIL PULSE) Drives No. 2 ignition coil With vehicle in ON mode: about 0 V With engine running: pulses
43 GRN VCC2 (SENSOR VOLTAGE) Provides sensor reference voltage With vehicle in ON mode: about 5.0 V
44 BLU VCC5 (SENSOR VOLTAGE) Provides sensor reference voltage With vehicle in ON mode: about 5.0 V
45 GRY SG2 (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
46 GRN SG5 (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
47 PUR OP SENSOR (ENGINE OIL PRESSURE) Detects rocker arm oil pressure sensor signal With vehicle in ON mode: about 0.8 V (depending on engine oil pressure)
48 RED NM (INPUT SHAFT (MAINSHAFT) SPEED SENSOR) Detects input shaft (mainshaft) speed sensor signal With vehicle in ON mode: about 0 V or about 5.0 V With engine running in N: pulses
49 Not used Not used
50 YEL LIN (LOCAL INTERCONNECT NETWORK) Sends and receives communication signal With vehicle in ON mode: pulses
51 GRY TDC (CAMSHAFT POSITION (CMP) SENSOR) Detects CMP sensor signal With engine running: pulses

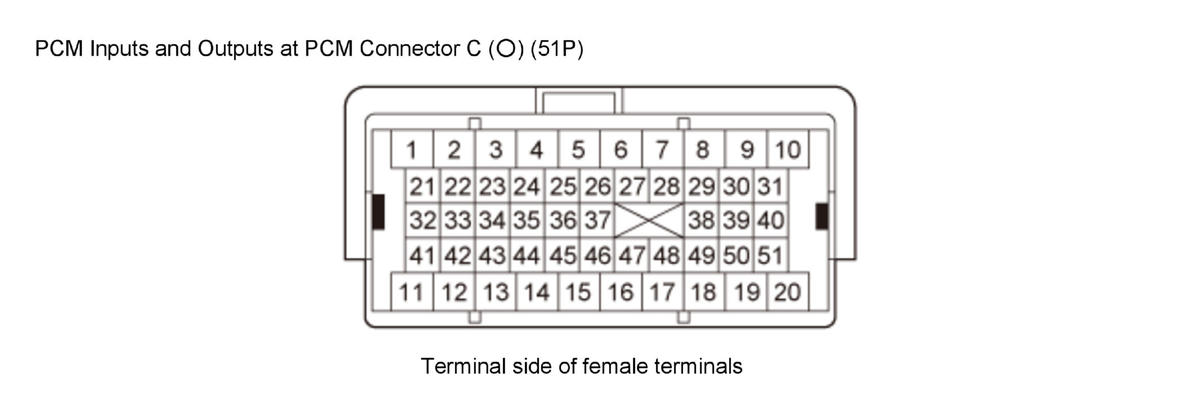

GHH319955Courtesy of HONDA, U.S.A., INC.
Terminal number Wire color Terminal name Description Signal
1 BLK PGM (POWER GROUND) Ground for PCM Less than 0.2 V at all times
2 LT BLU MTR2 (THROTTLE ACTUATOR +SIDE) Drives throttle actuator With vehicle in ON mode: about 0 V
3 WHT MTR1 (THROTTLE ACTUATOR -SIDE) Ground for throttle actuator With vehicle in ON mode: about 0 V
4 GRN IG1M (IGNITION SIGNAL ETCS) Detects ignition signal With vehicle in ON mode: battery voltage
Terminal number Wire color Terminal name Description Signal
5 PUR SO2HT B1 (REAR SECONDARY HEATED OXYGEN SENSOR (REAR SECONDARY HO2S (BANK 1, SENSOR 2) HEATER CONTROL) Drives rear secondary HO2S (Bank 1, sensor 2) heater With vehicle in ON mode: battery voltage With warmed up engine running: duty controlled
6 TAN AFHT B1 (REAR AIR FUEL RATIO (REAR A/F) SENSOR (BANK 1, SENSOR 1) HEATER CONTROL) Drives rear A/F sensor (Bank 1, sensor 1) heater With vehicle in ON mode: battery voltage With warmed up engine running: about 0 V or duty controlled
7 RED SO2HT B2 (FRONT SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S (BANK 2, SENSOR 2) HEATER CONTROL) Drives front secondary HO2S (Bank 2, sensor 2) heater With vehicle in ON mode: battery voltage With warmed up engine running: duty controlled
8 GRY AFHT B2 (FRONT AIR FUEL RATIO (FRONT A/F) SENSOR (BANK 2, SENSOR 1) HEATER CONTROL) Drives front A/F sensor (Bank 2, sensor 1) heater With vehicle in ON mode: battery voltage With warmed up engine running: about 0 V or duty controlled
9 Not used Not used
10 Not used Not used
11 BLU CRK (CRANKSHAFT POSITION (CKP) SENSOR) Detects CKP sensor signal With engine running: pulses
12 RED PCS (EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE) Drives EVAP canister purge valve With engine running, engine coolant below 140 °F (60 °C) (Mexico models: 149 °F (65 °C)): battery voltage With engine running, engine coolant above 140 °F (60 °C) (Mexico models: 149 °F (65 °C)): duty controlled
13 PUR E EGR (EXHAUST GAS RECIRCULATION (EGR) VALVE) Drives EGR valve With EGR operating: duty controlled With EGR not operating: about 0 V
14 GRN CSS (ROCKER ARM OIL CONTROL SOLENOID B (BANK 1)) Drives rocker arm oil control solenoid B (Bank 1) With vehicle in ON mode or at idle: about 0 V
15 LT GRN VTSB1 (ROCKER ARM OIL CONTROL SOLENOID A (BANK 1)) Drives rocker arm oil control solenoid A (Bank 1) At idle: about 0 V
16 LT BLU VTSB2 (ROCKER ARM OIL CONTROL SOLENOID A (BANK 2)) Drives rocker arm oil control solenoid A (Bank 2) At idle: about 0 V
17 LT GRN INJF1 (INJECTOR DIAG SIGNAL1) No. 1, No. 5 injector return signal With vehicle in ON mode: about 5.0 V With engine running: pulses
18 GRY INJF2 (INJECTOR DIAG SIGNAL2) No. 3, No. 4 injector return signal With vehicle in ON mode: about 5.0 V With engine running: pulses
19 PUR INJF3 (INJECTOR DIAG SIGNAL3) No. 2, No. 6 injector return signal With vehicle in ON mode: about 5.0 V With engine running: pulses
20 BLK GND3 (POWER GROUND) Ground for PCM Less than 0.2 V at all times
21 TAN NC (OUTPUT SHAFT (COUNTERSHAFT) SPEED SENSOR) Detects output shaft (countershaft) speed sensor signal With vehicle in ON mode: about 0 V or about 5.0 V While driving: pulses
Terminal number Wire color Terminal name Description Signal
22 PUR VTMB1 (ROCKER ARM OIL PRESSURE SWITCH A (BANK 1)) Detects rocker arm oil pressure switch A (Bank 1) signal With vehicle in ON mode: about 0 V With engine running: pulses
23 LT GRN VTMB2 (ROCKER ARM OIL PRESSURE SWITCH A (BANK 2)) Detects rocker arm oil pressure switch A (Bank 2) signal With vehicle in ON mode: about 0 V With engine running: pulses
24 Not used Not used
25 LT GRN VSB1 (VS CELL + BANK 1) Detects rear A/F sensor (Bank 1, sensor 1) VS CELL signal With warmed up engine running: about 3.4-4.8 V
26 RED VCENTB1 (VIRTUAL GROUND BANK 1) Provides reference voltage for rear A/F sensor (Bank 1, sensor 1) With warmed up engine at idle: about 3.4-3.8 V
27 Not used Not used
28 WHT VSB2 (VS CELL + BANK 2) Detects front A/F sensor (Bank 2, sensor 1) VS CELL signal With warmed up engine running: about 3.4-4.8 V
29 YEL VCENTB2 (VIRTUAL GROUND BANK 2) Provides reference voltage for front A/F sensor (Bank 2, sensor 1) With warmed up engine at idle: about 3.4-4.8 V
30 GRN SO2B1 (REAR SECONDARY HEATED OXYGEN SENSOR (REAR SECONDARY HO2S (BANK 1, SENSOR 2))) Detects rear secondary HO2S (Bank 1, sensor 2) signal With throttle fully opened from idle and warmed up engine: about 0.6 V With throttle quickly closed: below 0.4 V
31 BLU SO2B2 (FRONT SECONDARY HEATED OXYGEN SENSOR (FRONT SECONDARY HO2S (BANK 2, SENSOR 2))) Detects front secondary HO2S (Bank 2, sensor 2) signal With throttle fully opened from idle and warmed up engine: about 0.6 V With throttle quickly closed: below 0.4 V
32 PNK VCC1 (SENSOR VOLTAGE) Provides sensor reference voltage With vehicle in ON mode: about 5.0 V
33 BLU SG1 (SENSOR GROUND) Sensor ground Less than 0.2 V at all times
34 TAN VCMSW (ROCKER ARM OIL PRESSURE SWITCH B (BANK 1)) Detects rocker arm oil pressure switch B (Bank 1) signal With vehicle in ON mode or at idle: battery voltage
35 Not used Not used
36 Not used Not used
37 GRN IPB1 (IP CELL + BANK 1) Detects rear A/F sensor (Bank 1, sensor 1) pump cell With engine running: about 2.0-5.6 V
38 PUR IPB2 (IP CELL + BANK 2) Detects front A/F sensor (Bank 2, sensor 1) pump cell With engine running: about 2.0-5.6 V
39 WHT SO2SGB1 (REAR SECONDARY HEATED OXYGEN SENSOR (REAR SECONDARY HO2S (BANK 1, SENSOR 2)) SENSOR GROUND) Sensor ground for rear secondary HO2S (Bank 1, sensor 2) With vehicle in ON mode: about 1.5 V
Terminal number Wire color Terminal name Description Signal
40 YEL SO2SGB2 (FRONT SECONDARY HEATED OXYGEN SENSOR (FRONT SECONDARY HO2S (BANK 2, SENSOR 2)) SENSOR GROUND) Sensor ground for front secondary HO2S (Bank 2, sensor 2) With vehicle in ON mode: about 1.5 V
41 RED KSB1 (KNOCK SENSOR 1 (BANK 1)) Detects knock sensor 1 (Bank 1) signal With engine knocking: about 2.5 V
42 GRN KSSGB1 (KNOCK SENSOR 1 (BANK 1) GROUND) Sensor ground for knock sensor 1 (Bank 1) Less than 0.2 V at all times
43 WHT KSB2 (KNOCK SENSOR 2 (BANK 2)) Detects knock sensor 2 (Bank 2) signal With engine knocking: about 2.5 V
44 BLK KSSGB2 (KNOCK SENSOR 2 (BANK 2) GROUND) Sensor ground for knock sensor 2 (Bank 2) Less than 0.2 V at all times
45 PUR PB (MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR) Detects MAP sensor signal With vehicle in ON mode: about 3.0 V At idle: about 1.0 V (depending on engine speed)
46 LT BLU EGRL (EXHAUST GAS RECIRCULATION (EGR) VALVE POSITION SENSOR) Detects EGR valve position sensor signal With engine running: about 1.2-3.0 V (depending on EGR valve lift)
47 Not used Not used
48 PNK TW (ENGINE COOLANT TEMPERATURE SENSOR (ECT) SENSOR 1) Detects ECT sensor 1 signal With vehicle in ON mode: about 0.1-4.8 V (depending on engine coolant temperature)
49 TAN TA (INTAKE AIR TEMPERATURE (IAT) SENSOR) Detects IAT sensor signal With vehicle in ON mode: about 0.1-4.8 V (depending on intake air temperature)
50 GRN FPF (HIGH PRESSURE FUEL PUMP) Detects high pressure fuel pump return signal With vehicle in ON mode: about 5.0 V With engine running: pulses
51 WHT HPT1 (HIGH PRESSURE FUEL PUMP) Detects high pressure fuel pump drive signal With vehicle in ON mode: about 0 V With engine running: duty controlled
scientia non olet · About LEMON Manuals
