Description
>>
Keyless/Power Door Locks/Security System Description - System Diagram (2016-17)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

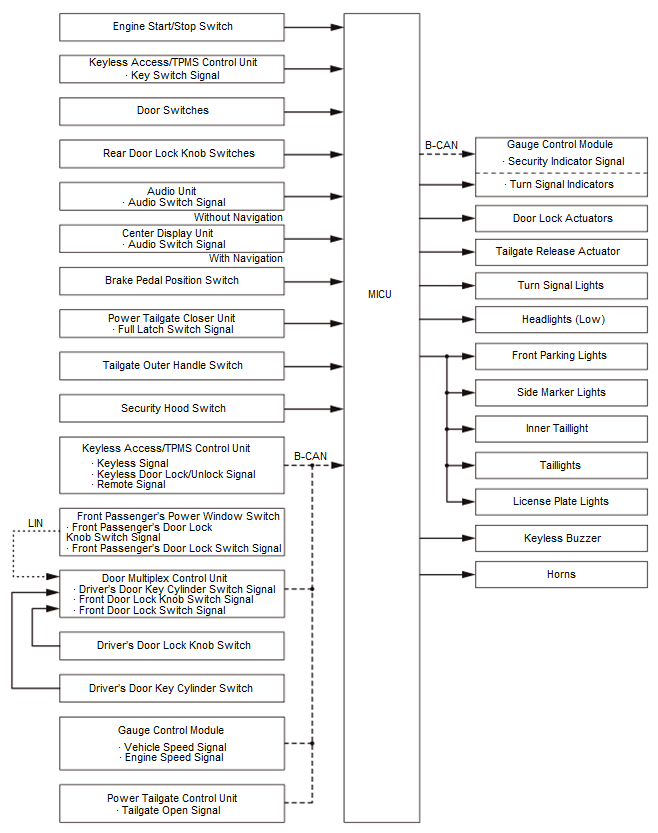

Keyless/Power Door Locks/Security System Description - System Diagram (2016-17)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
