Navigation System Component Location Index (2016-17)

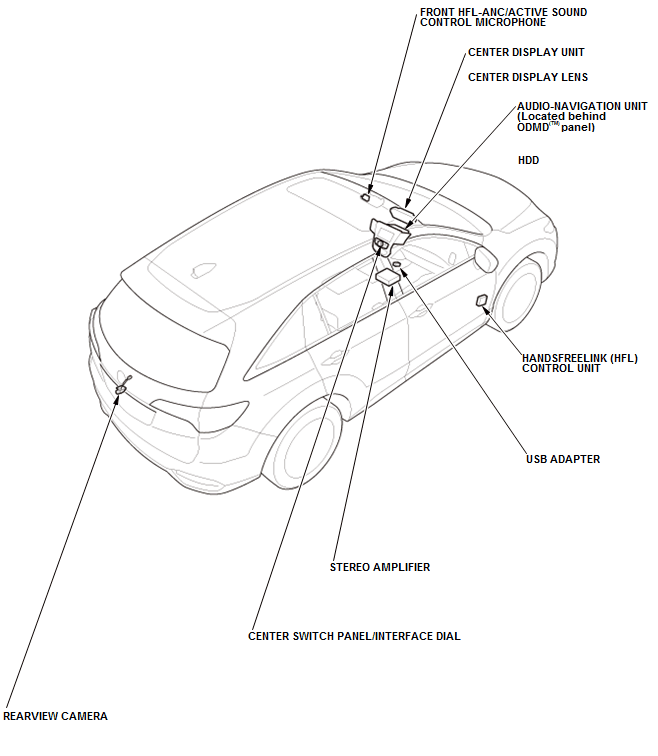

GHH68716Courtesy of HONDA, U.S.A., INC.

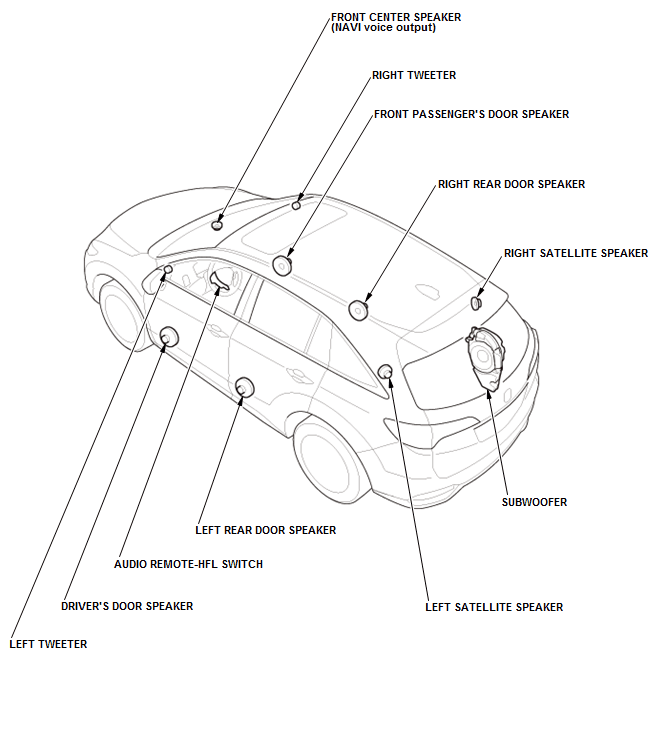

GHH68717Courtesy of HONDA, U.S.A., INC.

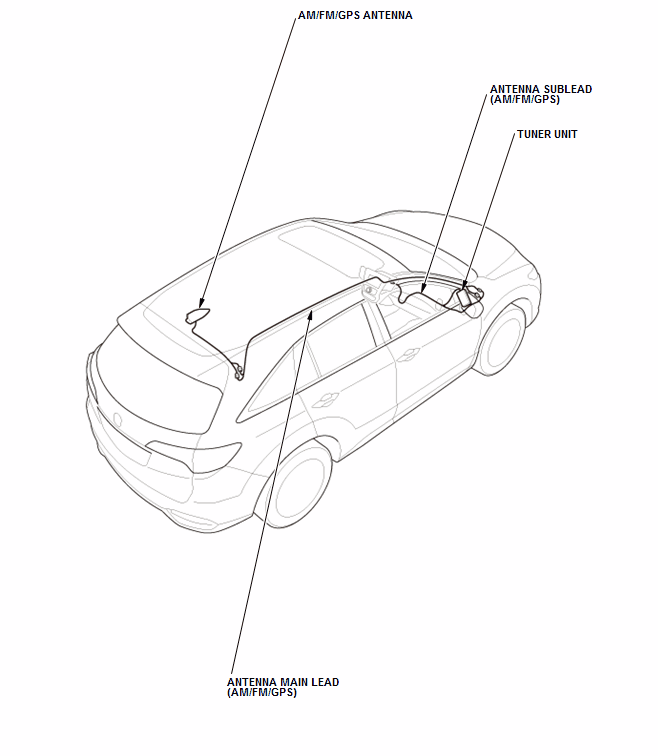

GHH68718Courtesy of HONDA, U.S.A., INC.

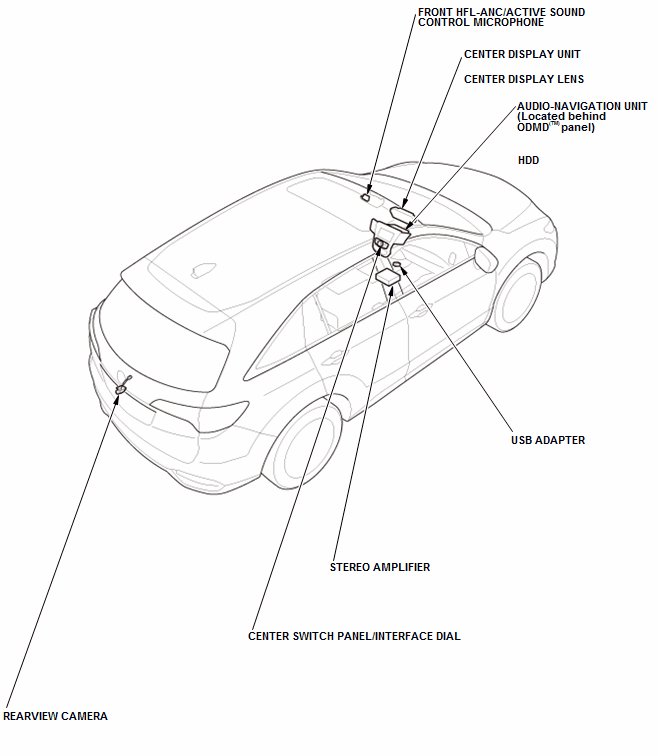

GHH68719Courtesy of HONDA, U.S.A., INC.

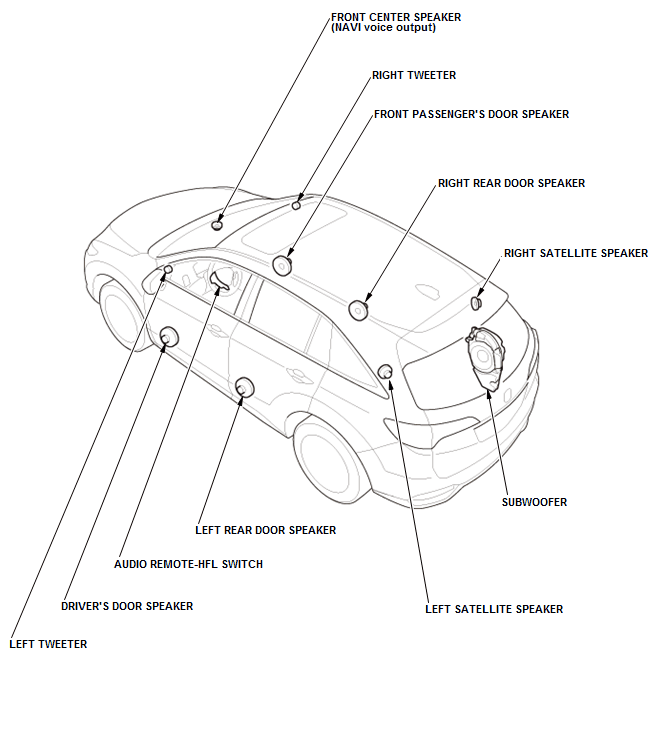

GHH68720Courtesy of HONDA, U.S.A., INC.

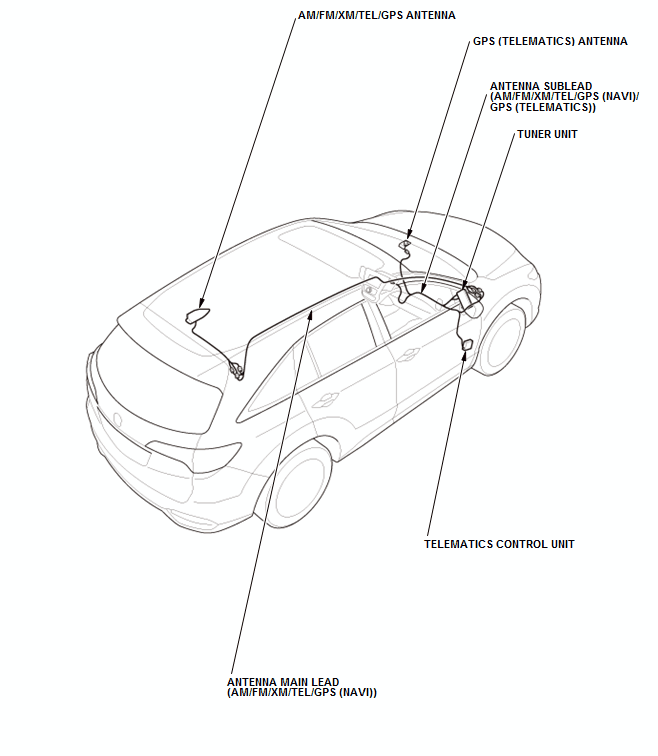

GHH68721Courtesy of HONDA, U.S.A., INC.
