ANC/Active Sound Control Microphone Connector for Inputs and Outputs (2013-17)
Front
NOTE:
The front HFL-ANC/active sound control microphone and the front HFL-navigation-ANC/active sound control microphone are the same parts.

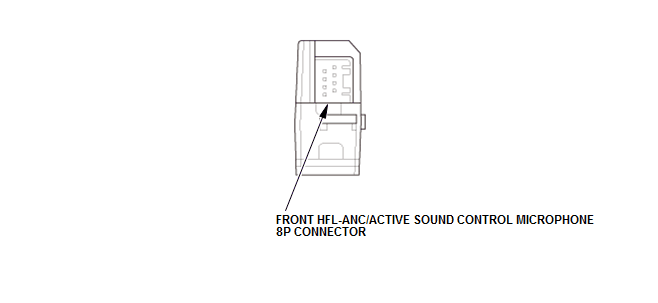

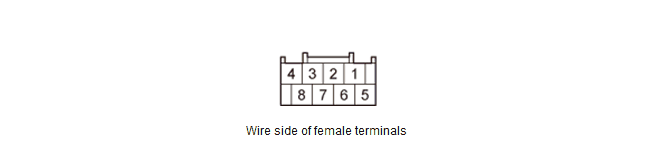

FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE 8P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | PUR | ACC | Power source for accessories |
| 2 | GRN | MIC+ | Outputs microphone signal |
| 3 | RED | MIC- | Ground for microphone signal |
| 4 | BLK | GND | Ground for microphone (G501) |
| 5 | GRN | +B BACK UP | Continuous power source |
| 6 | Not used | Not used | - - - |
| 7 | LT GRN | HFT MUTE | HFL mute signal |
| 8 | WHT | ANC F MIC + 8V | Outputs front ANC/active sound control microphone signal positive |
Rear

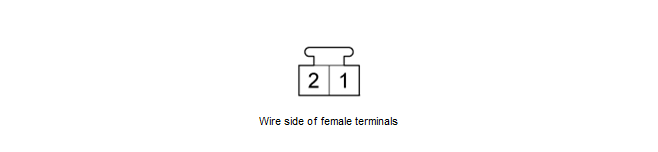

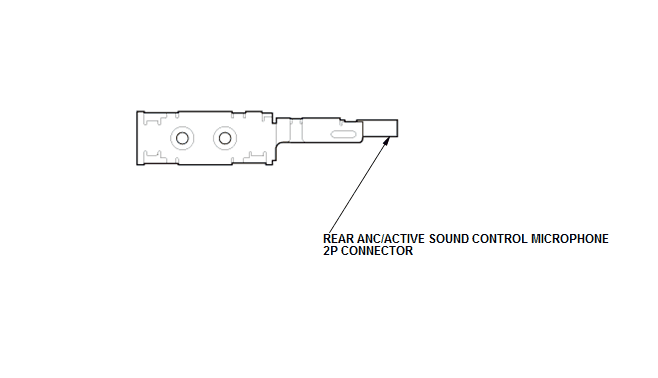

REAR ANC/ACTIVE SOUND CONTROL MICROPHONE 2P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | WHT | ANC R MIC + 8V | Outputs rear ANC/active sound control microphone signal positive |
| 2 | GRY | SH ANC F MIC | Shield for terminal No. 2 |
