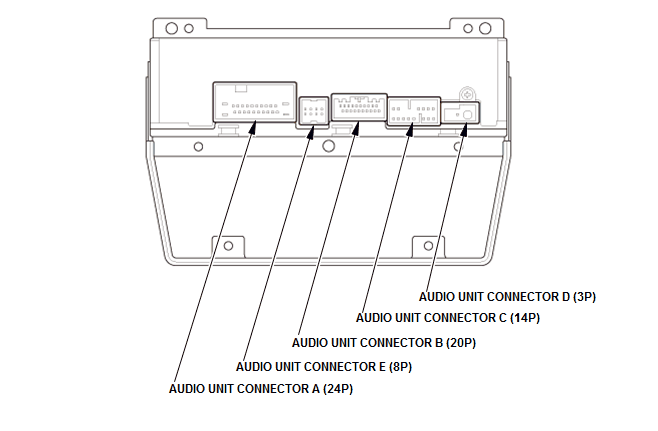

Audio Unit Connector for Inputs and Outputs (2013-15)
 Courtesy of HONDA, U.S.A., INC.
|

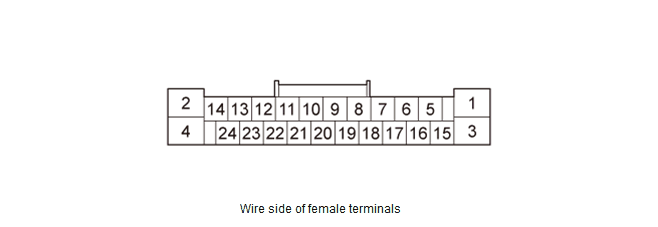

AUDIO UNIT CONNECTOR A (24P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| A1 |
BLK |
GND |
Ground for audio unit (G504) |
| A2 |
Not used |
Not used |
- - - |
| A3 |
GRN |
+ B BACK UP |
Continuous power source |
| A4 |
Not used |
Not used |
- - - |
| A5 |
LT BLU |
RL PRE+ |
Outputs sound signal for left rear channel |
| A6 |
PUR |
RL PRE- |
Outputs sound signal for left rear channel |
| A7 |
GRY |
SH RL PRE |
Shield for terminals No. 5 and No. 6 |
| Cavity |
Wire Color |
Terminal Name |
Description |
| A8 |
GRY |
SH RR PRE |
Shield for terminals No. 9 and No. 10 |
| A9 |
BRN |
RR PRE+ |
Outputs sound signal for right rear channel |
| A10 |
YEL |
RR PRE- |
Outputs sound signal for right rear channel |
| A11 |
BRN |
REMOTE SW GND |
Audio remote-HFL switch ground |
| A12 |
YEL |
SCTY RADIO SW |
Security signal from MICU |
| A13 |
LT BLU |
K LINE |
Detects scan tool signal (serial data) |
| A14 |
Not used |
Not used |
- - - |
| A15 |
BLU |
FL PRE+ |
Outputs sound signal for left front channel |
| A16 |
PNK |
FL PRE- |
Outputs sound signal for left front channel |
| A17 |
GRY |
SH FL PRE |
Shield for terminals No. 15 and No. 16 |
| A18 |
GRY |
SH FR PRE |
Shield for terminals No. 19 and No. 20 |
| A19 |
GRN |
FR PRE+ |
Outputs sound signal for right front channel |
| A20 |
RED |
FR PRE- |
Outputs sound signal for right front channel |
| A21 |
YEL |
SWD+B |
Outputs signal for stereo amplifier switching on/off |
| A22 |
PNK |
AUDIO REMOTE SW |
Detects control signal from audio remote switch |
| A23 |
Not used |
Not used |
- - - |
| A24 |
PUR |
ACC |
Power source for accessories |

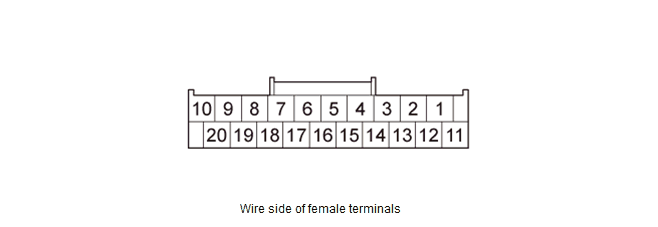

AUDIO UNIT CONNECTOR B (20P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| B1 |
GRY |
SH TELEM SIG |
Shield for terminals No. 2 and No. 12 |
| B2 |
RED |
TELEM SIG- |
Inputs HFL prompts and telephone sound signal from HandsFreeLink control unit |
| B3 |
BLU |
B CAN-L |
Communication signal |
| B4 |
RED |
DUET RX |
Communication signal to audio display unit |
| B5 |
GRN |
DUET TX |
Communication signal to audio display unit |
| B6 |
YEL |
AUX GND |
Ground for auxiliary jack assembly |
| B7 |
GRY |
SH AUX |
Shield for terminals No. 8, No. 17, and No. 18 |
| B8 |
PNK |
AUX SGND |
Ground for sound signal from auxiliary jack assembly |
| B9 |
WHT |
COMPASS TX+ |
Communication signal to electrical compass unit |
| Cavity |
Wire Color |
Terminal Name |
Description |
| B10 |
RED |
COMPASS TX- |
Communication signal to electrical compass unit |
| B11 |
Not used |
Not used |
- - - |
| B12 |
GRN |
TELEM SIG+ |
Inputs HFL prompts and telephone sound signal from HandsFreeLink control unit |
| B13 |
PNK |
B CAN-H |
Communication signal |
| B14 |
LT BLU |
DUET CONT |
DUET control signal |
| B15 |
GRY |
SH DUET |
Shield for terminals No. 4 and No. 5 |
| B16 |
PUR |
AUX DET |
Detects connection signal for auxiliary jack assembly |
| B17 |
GRN |
AUX R CH |
Inputs sound signal from auxiliary jack assembly |
| B18 |
BLU |
AUX L CH |
Inputs sound signal from auxiliary jack assembly |
| B19 |
BLU |
COMPASS RX+ |
Communication signal to electrical compass unit |
| B20 |
ORN |
COMPASS RX- |
Communication signal to electrical compass unit |

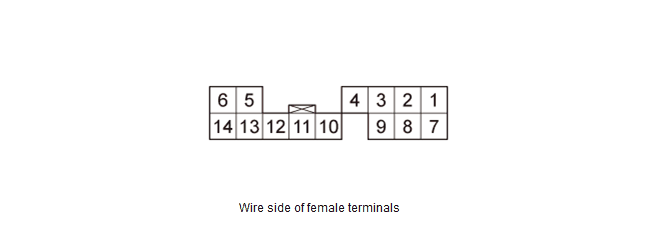

AUDIO UNIT CONNECTOR C (14P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| C1 |
BLK |
GA AUDIO L+ |
Inputs sound signal from GA-Net related units |
| C2 |
RED |
GA AUDIO R+ |
Inputs sound signal from GA-Net related units |
| C3 |
GRY |
SH GA AUDIO |
Shield for terminals No. 1, No. 2, No. 7, and No. 8 |
| C4 |
GRY |
SH GA BUS |
Shield for terminals No. 11 and No. 12 |
| C5 |
YEL |
GA SYS ON |
Output signal for GA-Net related units switching on/off |
| C6 |
RED |
GA +B |
Outputs power source for GA-Net related units |
| C7 |
GRN |
GA AUDIO L- |
Inputs sound signal from GA-Net related unit(s) |
| C8 |
WHT |
GA AUDIO R- |
Inputs sound signal from GA-Net related unit(s) |
| C9 |
Not used |
Not used |
- - - |
| C10 |
BRN |
GA GND |
GA-Net related units ground |
| C11 |
PUR |
GA BUS- |
GA-Net bus communication signal |
| C12 |
LT BLU |
GA BUS+ |
GA-Net bus communication signal |
| C13 |
Not used |
Not used |
- - - |
| Cavity |
Wire Color |
Terminal Name |
Description |
| C14 |
Not used |
Not used |
- - - |

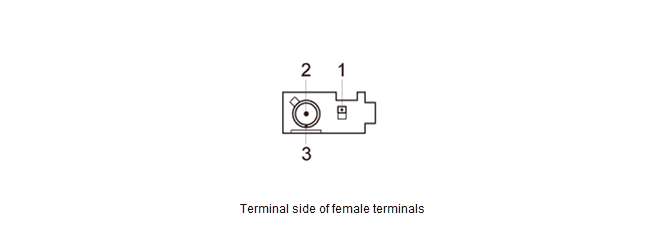

AUDIO UNIT CONNECTOR D (3P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| D1 |
- - - |
SWD +B |
Power source for AM/FM/XM antenna |
| D2 |
- - - |
AM/FM |
Inputs AM/FM signal |
| D3 |
- - - |
SH (AM/FM) |
Shield for terminal No. 2 |

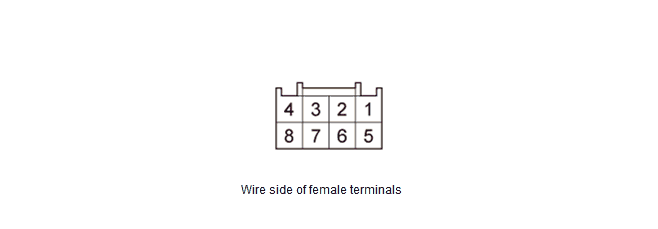

AUDIO UNIT CONNECTOR E (8P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| E1 |
Not Used |
Not Used |
- - - |
| E2 |
Not Used |
Not Used |
- - - |
| E3 |
Not Used |
Not Used |
- - - |
| E4 |
GRN |
ANC CHK2 |
Outputs ANC test signal |
| E5 |
BLU |
SUB W PRE + |
Outputs sound signal for subwoofer channel |
| E6 |
GRY |
SH SUB W |
Shield for terminals No. 5 and No. 7 |
| E7 |
PNK |
SUB W PRE - |
Outputs sound signal for subwoofer channel |
| E8 |
ORN |
AMP MUTE |
Outputs stereo amplifier mute signal |
