Audio-Navigation Switch Panel Connector for Inputs and Outputs (2013-17)
Audio-Navigation Switch Panel Connector for Inputs and Outputs

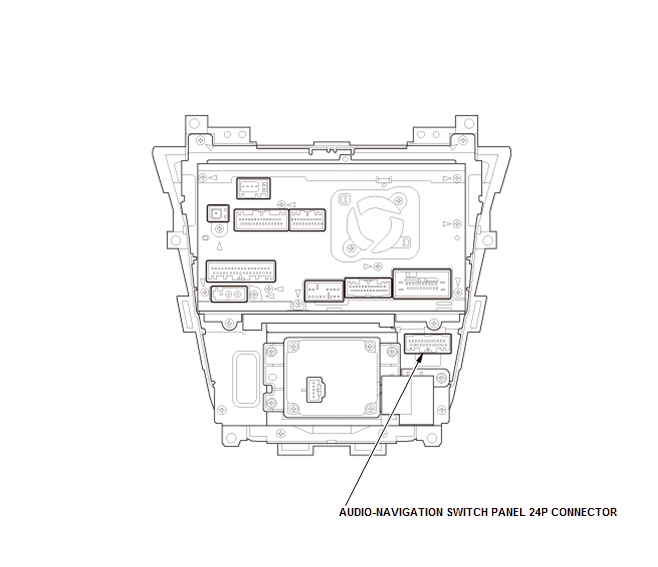

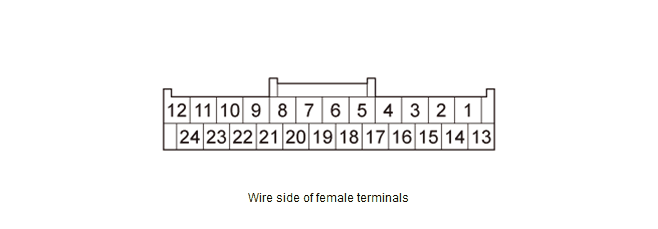

AUDIO-NAVIGATION SWITCH PANEL 24P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | RED | ILLUMI- (BULB) | Detects illumination control signal |
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 2 | YEL | ILL- (LED) | Detects illumination control signal |
| 3 | BLK | GND | Ground for audio-navigation switch panel (G503) |
| 4 | Not used | Not used | - - - |
| 5 | Not used | Not used | - - - |
| 6 | WHT | A/C CLK | Communication signal to climate control unit |
| 7 | BRN | OPERA TX | Communication signal for audio-navigation switch panel buttons |
| 8 | GRY | SH OPERA | Shield for terminals No. 7 and No. 19 |
| 9 | GRY | SH DUET | Shield for terminals No. 21 and No. 22 |
| 10 | LT BLU | DUET CONT | DUET control signal |
| 11 | GRY | SH VOL ENC | Shield for terminals No. 12, No. 23, and No. 24 |
| 12 | GRN | VOL ENC- | Outputs volume encoder signal |
| 13 | Not used | Not used | - - - |
| 14 | GRY | ILLUMI+ | Detects parking light on signal |
| 15 | GRN | +B BACK UP | Continuous power source |
| 16 | BRN | IG2 A/C | IG2 power source |
| 17 | Not used | Not used | - - - |
| 18 | RED | A/C SO | Communication signal to climate control unit |
| 19 | YEL | OPERA RX | Communication signal for audio-navigation switch panel buttons |
| 20 | GRN | OPERA CONT | OPERA control signal |
| 21 | GRN | DUET TX | Communication signal for audio-navigation switch panel display |
| 22 | RED | DUET RX | Communication signal for audio-navigation switch panel display |
| 23 | PNK | PWR SW | Outputs POWER switch on/off signal |
| 24 | BLU | VOL ENC+ | Outputs volume encoder signal |
