HandsFreeLink Control Unit Connector for Inputs and Outputs (2013-17)
 Courtesy of HONDA, U.S.A., INC.
|

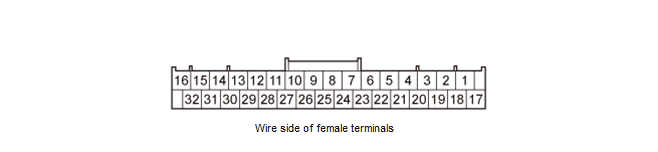

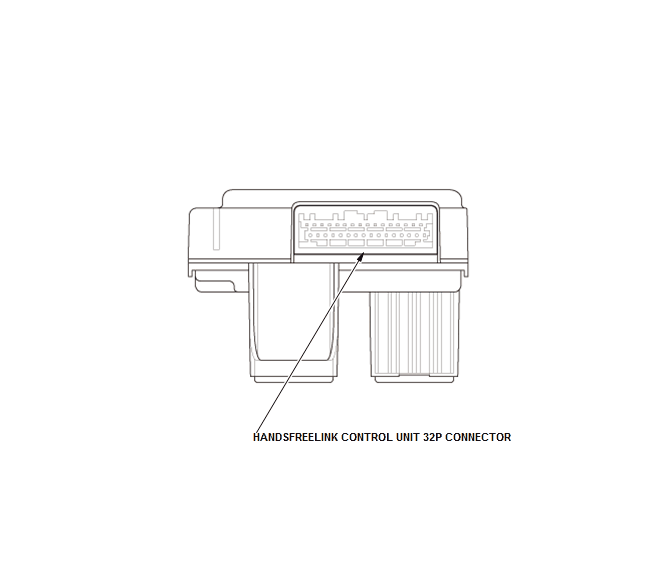

HANDSFREELINK CONTROL UNIT 32P CONNECTOR
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| 1 |
RED |
MIC - |
Inputs microphone signal negative |
| 2 |
GRN |
MIC + |
Inputs microphone signal positive |
| 3 |
GRY |
SH MIC |
Shield for terminals No. 1 and No. 2 |
| 4 |
GRN |
TELEM SIG + |
Outputs HFL prompts and telephone sound signal |
| Cavity |
Wire Color |
Terminal Name |
Description |
| 5 |
BLK |
GA AUDIO L + |
Outputs sound signal |
| 6 |
RED |
GA AUDIO R + |
Outputs sound signal |
| 7 |
Not used |
Not used |
- - - |
| 8 |
Not used |
Not used |
- - - |
| 9*2 |
GRY |
SH HFT-HIP/NAVI COMM |
Shield for terminals No. 10, No. 11, No. 26, and No. 27 |
| 10*2 |
GRN |
HFT-HIP/NAVI COMM3 |
Communication signal to AcuraLink control unit (XM receiver) |
| 11*2 |
BLK |
HFT-HIP/NAVI COMM4 |
Communication signal to AcuraLink control unit (XM receiver) |
| 12 |
PUR |
GA BUS - |
GA-Net bus communication signal |
| 13 |
LT BLU |
GA BUS + |
GA-Net bus communication signal |
| 14 |
LT GRN |
HFT MUTE |
HFL mute signal |
| 15 |
BLU |
HFT/NAVI REMOTE SW |
Detects control signal from HFL switch |
| 16 |
BRN |
GA GND |
Ground for HandsFreeLink control unit |
| 17*1 |
PNK |
HFT-NAVI MIC - |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| 18*1 |
BLU |
HFT-NAVI MIC + |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| 19 |
GRY |
SH TELEM SIG |
Shield for terminals No. 4 and No. 20 |
| 20 |
RED |
TELEM SIG - |
Outputs HFL prompts and telephone sound signal |
| 21 |
GRN |
GA AUDIO L - |
Outputs sound signal |
| 22 |
WHT |
GA AUDIO R - |
Outputs sound signal |
| 23 |
GRY |
SH GA AUDIO |
Shield for terminals No. 5, No. 6, No. 21, and No. 22 |
| 24 |
YEL |
GA SYS ON |
Inputs signal for HandsFreeLink control unit switching ON/OFF |
| 25 |
Not used |
Not used |
- - - |
| 26*2 |
RED |
HFT-HIP/NAVI COMM2 |
Communication signal to AcuraLink control unit (XM receiver) |
| 27*2 |
WHT |
HFT-HIP/NAVI COMM1 |
Communication signal to AcuraLink control unit (XM receiver) |
| 28 |
GRY |
SH GA BUS |
Shield for terminals No. 12 and No. 13 |
| 29 |
Not used |
Not used |
- - - |
| 30 |
Not used |
Not used |
- - - |
| 31 |
Not used |
Not used |
- - - |
| 32 |
RED |
GA +B |
Continuous power source from audio unit or audio-navigation unit |
| *1: |
With navigation |
| *2: |
USA models with navigation |
