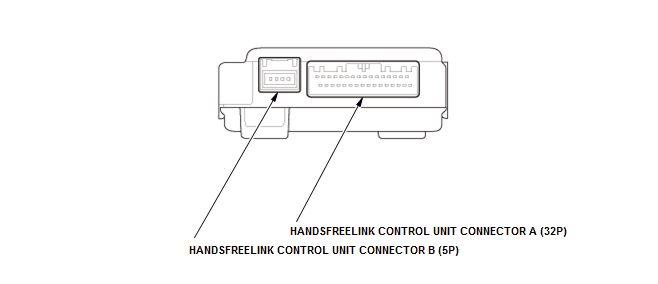

HandsFreeLink Control Unit Connector for Inputs and Outputs(With navigation) (2016-17)
 Courtesy of HONDA, U.S.A., INC.
|

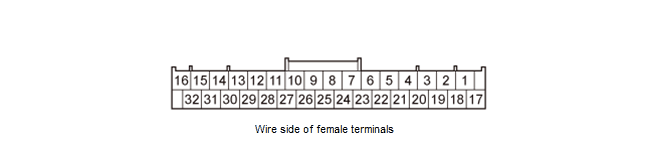

HANDSFREELINK CONTROL UNIT CONNECTOR A (32P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| A1 |
RED |
MIC GND |
Ground for HFL microphone |
| A2 |
WHT |
MIC + |
Inputs microphone signal positive |
| A3 |
BLK |
SH MIC |
Shield for terminal No. 2 |
| A4 |
GRN |
TELEM SIG + |
Outputs HFL prompts and telephone sound signal |
| A5 |
BLK |
GA AUDIO L + |
Outputs sound signal |
| A6 |
RED |
GA AUDIO R + |
Outputs sound signal |
| A7 |
WHT |
MIC PWR |
Power source for HFL microphone |
| A8 |
Not used |
Not used |
- - - |
| A9 |
Not used |
Not used |
- - - |
| A10 |
Not used |
Not used |
- - - |
| A11 |
YEL |
HFT SIRI SIG |
Outputs voice signal for server voice recognition |
| A12 |
PUR |
GA BUS - |
GA-Net bus communication signal |
| A13 |
LT BLU |
GA BUS+ |
GA-Net bus communication signal |
| A14 |
LT GRN |
HFT MUTE |
HFL mute signal |
| A15 |
BLU |
HFT/NAVI REMOTE SW |
Detects control signal from HFL switch |
| A16 |
BRN |
GA GND |
Ground for HandsFreeLink control unit |
| A17 |
PNK |
HFT-NAVI MIC - |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A18 |
BLU |
HFT-NAVI MIC + |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A19 |
GRY |
SH TELEM SIG |
Shield for terminals No. 4 and No. 20 |
| A20 |
RED |
TELEM SIG - |
Outputs HFL prompts and telephone sound signal |
| A21 |
GRN |
GA AUDIO L - |
Outputs sound signal |
| Cavity |
Wire Color |
Terminal Name |
Description |
| A22 |
WHT |
GA AUDIO R - |
Outputs sound signal |
| A23 |
GRY |
SH GA AUDIO |
Shield for terminals No. 5, No. 6, No. 21, and No. 22 |
| A24 |
YEL |
GA SYS ON |
Inputs signal for HandsFreeLink control unit switching on/off |
| A25 |
Not used |
Not used |
- - - |
| A26 |
GRY |
SH HFT SIRI |
Shield for terminals No. 11 and No. 27 |
| A27 |
BRN |
HFT SIRI GND |
Outputs voice signal for server voice recognition |
| A28 |
GRY |
SH GA BUS |
Shield for terminals No. 12 and No. 13 |
| A29 |
Not used |
Not used |
- - - |
| A30 |
Not used |
Not used |
- - - |
| A31 |
Not used |
Not used |
- - - |
| A32 |
RED |
GA +B |
Continuous power source from audio-navigation unit |

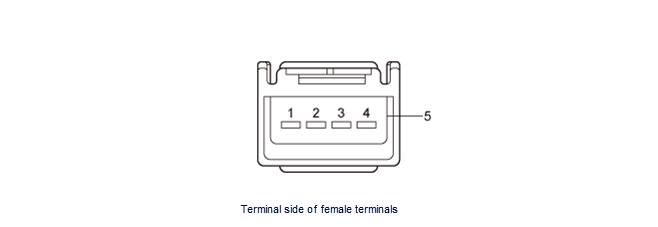

HANDSFREELINK CONTROL UNIT CONNECTOR B (5P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| B1 |
- - - |
HFT USB GND |
Ground for communication signal |
| B2 |
- - - |
HFT USB DATA + |
Communication signal |
| B3 |
- - - |
HFT USB DATA - |
Communication signal |
| B4 |
- - - |
HFT USB VBUS |
Outputs power source for USB device |
| B5 |
- - - |
HFT USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
