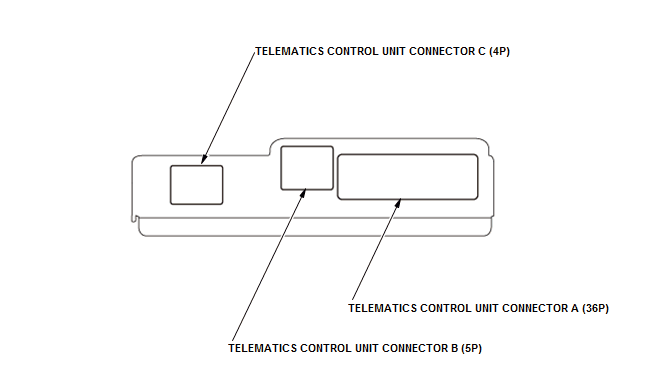

Telematics Control Unit Connector for Inputs and Outputs (2016-17)
 Courtesy of HONDA, U.S.A., INC.
|

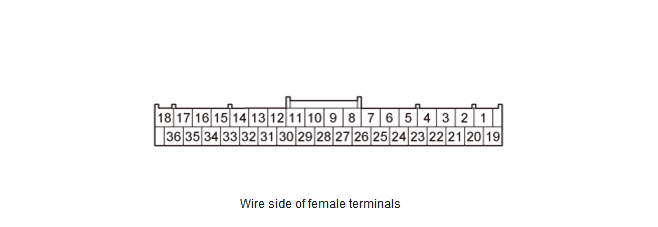

TELEMATICS CONTROL UNIT CONNECTOR A (36P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| A1 |
GRN |
LED-GRN |
Outputs drive signal for AcuraLink system status indicator LED (green) |
| A2 |
LT BLU |
TELEMA SW+ |
Detects signal from AcuraLink buttons |
| A3 |
RED |
MIC GND |
Ground for HFL microphone signal |
| A4 |
WHT |
MIC+ |
Inputs HFL microphone signal |
| A5 |
BLK |
SH MIC |
Shield for terminal No. 3 |
| A6 |
GRN |
TELEM SIG+ |
Outputs HFL prompts and telephone sound signal |
| A7 |
BLK |
GA AUDIO L+ |
Outputs sound signal |
| A8 |
RED |
GA AUDIO R+ |
Outputs sound signal |
| A9 |
WHT |
MIC PWR |
Power source for HFL microphone |
| A10 |
Not used |
Not used |
- - - |
| A11 |
YEL |
HFT SIRI SIG |
Outputs voice signal for server voice recognition |
| A12 |
BRN |
HFT SIRI GND |
Outputs voice signal for server voice recognition |
| Cavity |
Wire Color |
Terminal Name |
Description |
| A13 |
GRY |
SH HFT SIRI |
Shield for terminals No. 11 and No. 12 |
| A14 |
PUR |
GA BUS - |
GA-Net bus communication signal |
| A15 |
LT BLU |
GA BUS + |
GA-Net bus communication signal |
| A16 |
LT GRN |
HFT MUTE |
HFL mute signal |
| A17 |
BLU |
HFT/NAVI REMOTE SW |
Detects control signal from HFL switch |
| A18 |
BLK |
GND |
Ground for telematics control unit (G506) |
| A19 |
GRY |
LED-RED |
Outputs drive signal for AcuraLink system status indicator LED (red) |
| A20 |
BRN |
TELEMA SW - |
AcuraLink buttons ground |
| A21 |
PNK |
HFT-NAVI MIC- |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A22 |
BLU |
HFT-NAVI MIC+ |
Outputs Voice Recognition (VR) prompts to audio-navigation unit |
| A23 |
GRY |
SH TELEM SIG |
Shield for terminals No. 6 and No. 24 |
| A24 |
RED |
TELEM SIG - |
Outputs HFL prompts and telephone sound signal |
| A25 |
GRN |
GA AUDIO L - |
Outputs sound signal |
| A26 |
WHT |
GA AUDIO R - |
Outputs sound signal |
| A27 |
GRY |
SH GA AUDIO |
Shield for terminals No. 7, No. 8, No. 25, and No. 26 |
| A28 |
YEL |
GA SYS ON |
Inputs signal for telematics control unit switching on/off |
| A29 |
Not used |
Not used |
- - - |
| A30 |
BRN |
IG1 METER |
Power source for IG1 |
| A31 |
PUR |
CDS |
Inputs collision detection signal |
| A32 |
GRY |
SH GA BUS |
Shield for terminals No. 14 and No. 15 |
| A33 |
PNK |
B-CAN_H |
B-CAN bus communication signal |
| A34 |
BLU |
B-CAN_L |
B-CAN bus communication signal |
| A35 |
PUR |
ACC |
Power source for accessories |
| A36 |
GRN |
+B BACK UP |
Continuous power source |

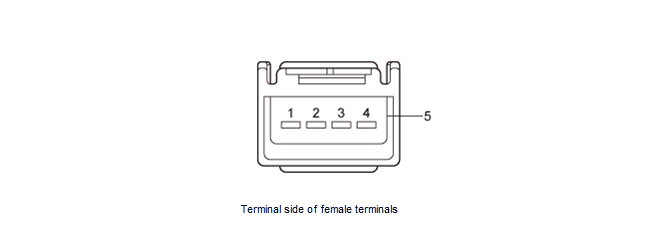

TELEMATICS CONTROL UNIT CONNECTOR B (5P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| B1 |
- - - |
HFT USB GND |
Ground for communication signal |
| B2 |
- - - |
HFT USB DATA+ |
Communication signal |
| B3 |
- - - |
HFT USB DATA- |
Communication signal |
| B4 |
- - - |
HFT USB VBUS |
Outputs power source for USB device |
| B5 |
- - - |
HFT USB SH |
Shield for terminals No. 1, No. 2, No. 3, and No. 4 |

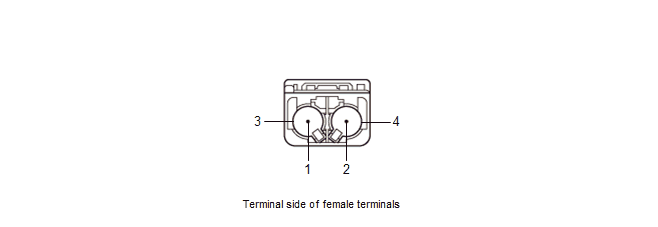

TELEMATICS CONTROL UNIT CONNECTOR C (4P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| C1 |
- - - |
TEL |
Inputs TEL signal |
| C2 |
- - - |
GPS ANT |
Inputs GPS signal |
| C3 |
BLK |
SH (TEL) |
Shield for terminal No. 1 |
| C4 |
BLK |
GPS SH |
Shield for terminal No. 2 |
