Audio Display Unit Connector for Inputs and Outputs (2013-15)
Audio Display Unit Connector for Inputs and Outputs

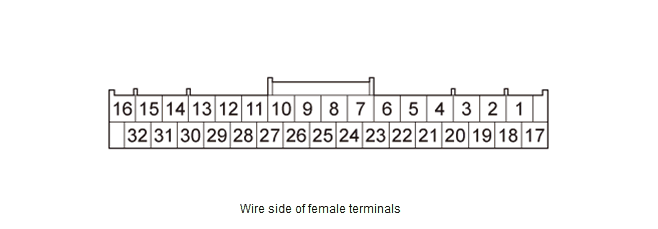

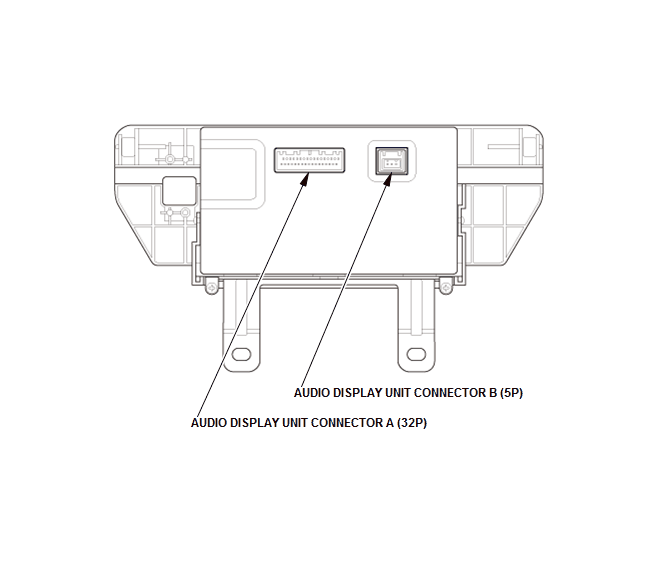

AUDIO DISPLAY UNIT CONNECTOR A (32P)
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| A1 | Not used | Not used | - - - |
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| A2 | GRY | SH CAMERA | Shield for terminals No. 3, No. 18, No. 19, and No. 20 |
| A3 | GRN | CAMERA GND | Ground for rearview camera |
| A4 | LT GRN | CAMERA BIT0 | Mode select signal for rearview camera |
| A5 | YEL | CAMERA BIT1 | Mode select signal for rearview camera |
| A6 | Not used | Not used | - - - |
| A7 | Not used | Not used | - - - |
| A8 | RED | GA AUDIO R + | Outputs sound signal |
| A9 | BLK | GA AUDIO L + | Outputs sound signal |
| A10 | BLK | GND | Ground for audio display unit (G506) |
| A11 | PUR | GA BUS- | GA-Net bus communication signal |
| A12 | GRY | SH GA BUS | Shield for terminals No. 11 and No. 27 |
| A13 | RED | DUET RX | Communication signal to audio unit |
| A14 | GRY | BACK LT | Detects reverse signal of select lever from reverse relay circuit |
| A15 | BLU | B CAN-L | Communication signal |
| A16 | GRN | +B BACK UP | Power source for accessories |
| A17 | Not used | Not used | - - - |
| A18 | RED | CAMERA V GND | Ground for video signal |
| A19 | WHT | CAMERA V | Video signal for rearview camera |
| A20 | BLK | CAMERA VCC | Power source for rearview camera |
| A21 | YEL | CAMERA ADPT | Control signal for rearview camera |
| A22 | Not used | Not used | - - - |
| A23 | Not used | Not used | - - - |
| A24 | WHT | GA AUDIO R- | Outputs sound signal |
| A25 | GRN | GA AUDIO L- | Outputs sound signal |
| A26 | GRY | SH GA AUDIO | Shield for terminals No. 8, No. 9, No. 24, and No. 25 |
| A27 | LT BLU | GA BUS+ | GA-Net bus communication signal |
| A28 | Not used | Not used | - - - |
| A29 | GRN | DUET TX | Communication signal to audio unit |
| A30 | LT BLU | DUET CONT | DUET control signal |
| A31 | PNK | B CAN-H | Communication signal |
| A32 | YEL | GA SYS ON | Inputs signal for audio display unit switching ON/OFF |

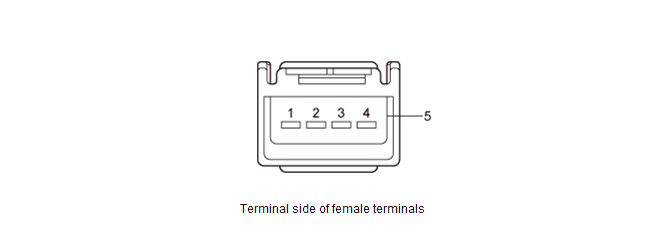

AUDIO DISPLAY UNIT CONNECTOR B (5P)
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| B1 | - - - | USB GND | Ground for communication signal |
| B2 | - - - | USB DATA+ | Communication signal |
| B3 | - - - | USB DATA- | Communication signal |
| B4 | - - - | USB VBUS | Outputs power source for USB device |
| B5 | - - | USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
