Center Switch Panel/Interface Dial Connector for Inputs and Outputs (2016-17)
Center Switch Panel/Interface Dial Connector for Inputs and Outputs

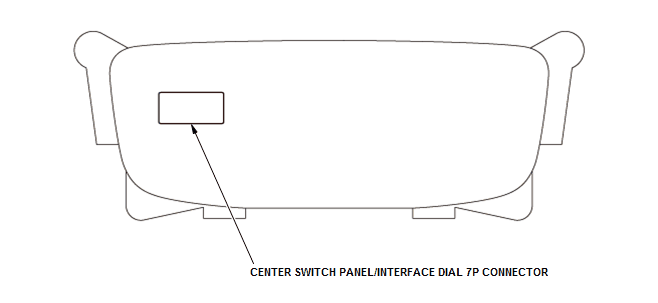

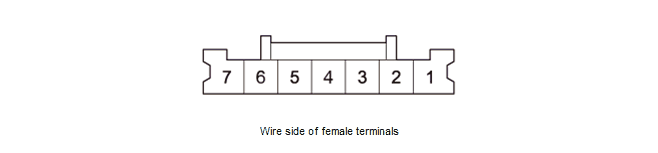

CENTER SWITCH PANEL/INTERFACE DIAL 7P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | PUR | ACC | Power source for center switch panel/interface dial |
| 2 | GRY | ILLUMI + | Detects parking light on signal |
| 3 | Not used | Not used | - - - |
| 4 | WHT | JOG | Outputs center switch panel/interface dial operation signal |
| 5 | BLK | SH JOG | Shield for terminal No. 4 |
| 6 | BLK | GND | Ground for center switch panel/interface dial (G506) |
| 7 | YEL | ILL - (LED) | Detects illumination control signal |
