Manifold Absolute Pressure (MAP) Sensor

The MAP sensor converts manifold absolute pressure into electrical signals that are sent to the ECM/PCM.

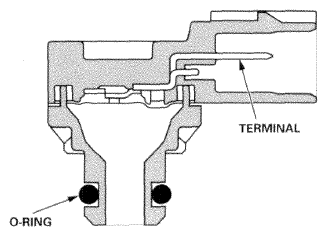

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
