Component Location Index

EVAP System

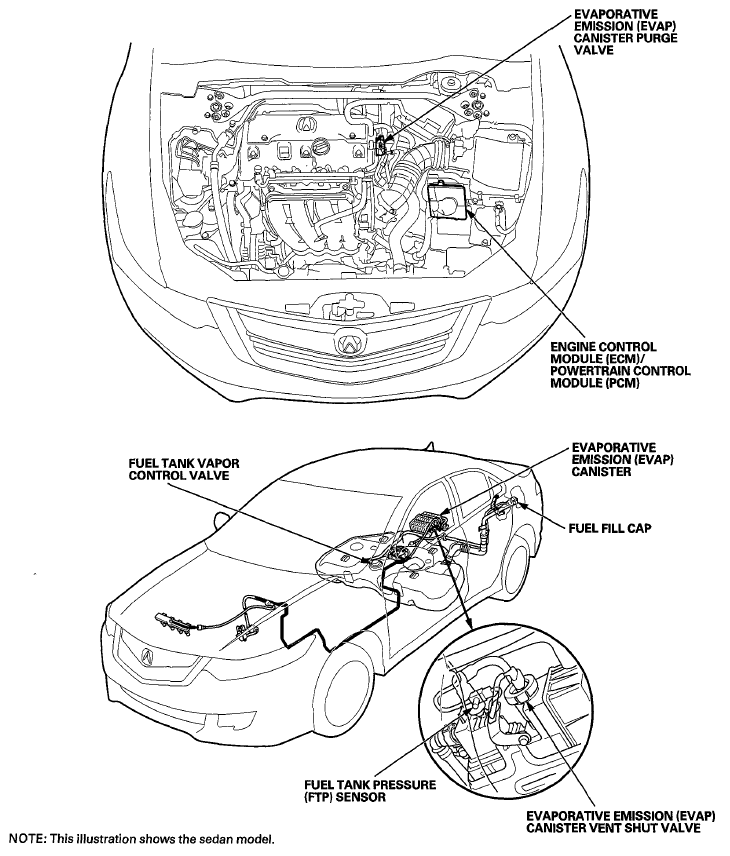

Fig 1: Identifying Evaporative Emission Component Location
G07768013Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: This illustration shows the sedan model.
