Audio Unit Connector for Inputs and Outputs (with ELS audio)

WARNING: This page is about a different variant/trim than selected.

NOTE: Refer to the navigation system section for audio-navigation unit connector G and J inputs and outputs (see NAVIGATION UNIT CONNECTOR FOR INPUTS AND OUTPUTS ).

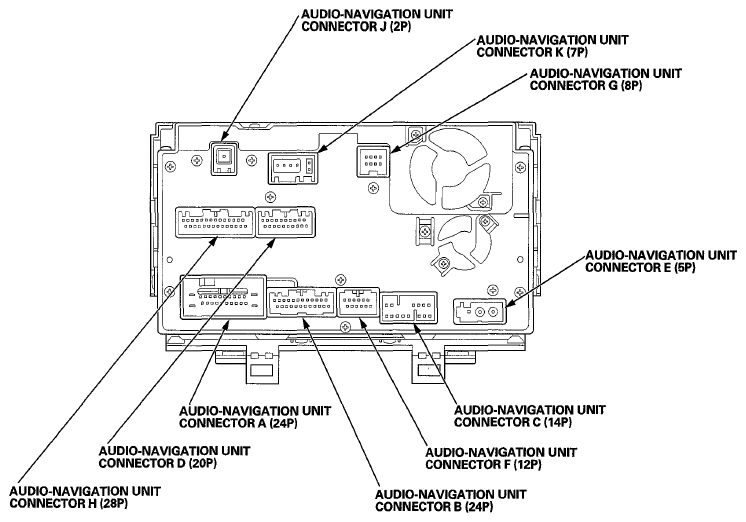

Fig 1: Identifying Audio Unit Connector For Inputs And Outputs (With ELS Audio)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
