AcuraLink Control Unit (XM Receiver) Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

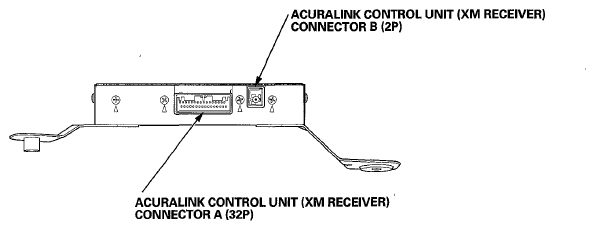

Fig 1: Identifying AcuraLink Control Unit Inputs And Outputs Connector (XM Receiver)
G06947488Courtesy of AMERICAN HONDA MOTOR CO., INC.

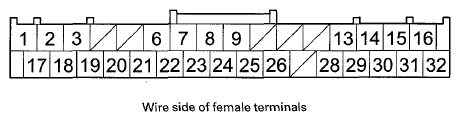

Fig 2: Identifying AcuraLink Control Connector (XM Receiver) A (32P)
G06947489Courtesy of AMERICAN HONDA MOTOR CO., INC.

AcuraLink Control Unit (XM Receiver) Connector A (32P)

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR TERMINAL REFERENCE

Cavity Wire Color Terminal Name Connects to
A1 WHT + B No. 15 (10 A) fuse in the under-hood fuse/relay box
A2 BRN IG1 No. 5 (7.5 A) fuse in the driver's under-dash fuse/relay box
A3 PUR ACC No. 18 (7.5 A) fuse in the driver's under-dash fuse/relay box
A6 RED F-CAN L F-CAN bus line
A7 WHT F-CANH- F-CAN bus line
A8 BLU B-CAN L B-CAN bus line
A9 PNK B-CAN H B-CAN bus line
A13 GRN AUDIO R+ Audio-navigation unit, HandsFreeLink control unit
A14 WHT AUDIO R- Audio-navigation unit, HandsFreeLink control unit
A15 BLK AUDIO L+ Audio-navigation unit, HandsFreeLink control unit
A16 RED AUDIO L- Audio-navigation unit, HandsFreeLink control unit
A17 WHT NAVI COMM1 Audio-navigation unit
A18 RED NAVI COMM2 Audio-navigation unit
A19 GRN NAVI COMM3 Audio-navigation unit
A20 BLK NAVI COMM4 Audio-navigation unit

AcuraLink Control Unit (XM Receiver) Connector A (32P)

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR TERMINAL REFERENCE

Cavity Wire Color Terminal Name Connects to
A21 GRY(1) NAVI COMM SH Shield for terminals No. 17, No. 18, No. 19, and No. 20
A22 RED HFL COMM3 HandsFreeLink control unit
A23 WHT HFL COMM4 HandsFreeLink control unit
A24 BLK HFL COMM1 HandsFreeLink control unit
A25 GRN HFL COMM2 HandsFreeLink control unit
A26 GRY(1) HFL COMM SH Shield for terminals No. 22, No. 23, No. 24, and No. 25
A28 BLK GND Body ground to G651
A29 GRY(1) GA-NET BUS SH Shield for terminals No. 30 and No. 31
A30 RED GA-NET BUS + Audio-navigation unit, HandsFreeLink control unit. Navigation display unit
A31 GRN GA-NET BUS- Audio-navigation unit, HandsFreeLink control unit, Navigation display unit
A32 GRY(1) AUDIO SH Shield for terminals No. 13, No. 14, No. 15, and No. 16
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR B (2P)

Fig 3: Identifying Acuralink Control Unit (XM Receiver) Connector B (2P)
G06947490Courtesy of AMERICAN HONDA MOTOR CO., INC.

AcuraLink Control Unit (XM Receiver) Connector B (2P)

ACURALINK CONTROL UNIT (XM RECEIVER) CONNECTOR TERMINALS REFERENCE

Cavity Wire Color Terminal Name Connects to
B1 -- SAT/TER XM antenna
B2 -- SAT/TER SH GND XM antenna
