Accelerator Pedal Module Removal and Installation: Removal

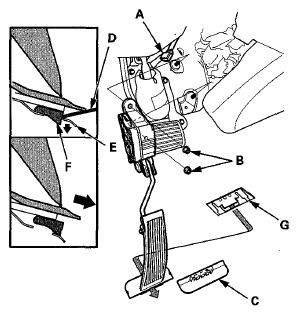

1. Disconnect the APP sensor 6P connector (A).
   Fig 1: Removing Accelerator Pedal Pad

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the two mounting nuts (B), then remove the clip (C). Using a flat-tip screwdriver (D), push the lock (E), then remove the accelerator pedal pad (F) from the pedal stop (G).
3. Remove the accelerator pedal module.
   NOTE:

   • The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

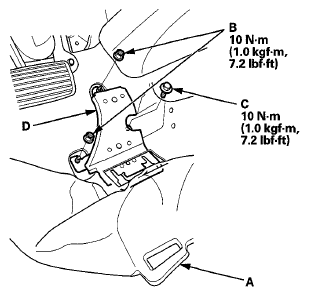

   • If the pedal stop is damaged, replace it by pulling back the carpet (A), and removing the nuts (B), the bolt (C), and the pedal stop (D).

Fig 2: Carpet, Nuts, Bolt And Pedal Stop With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
