IMT Actuator Replacement

  1. Disconnect the IMT actuator 5P connector (A).

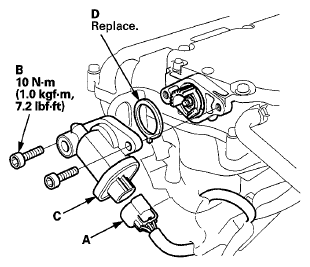

    Fig 1: IMT Actuator 5P Connector, Bolts And IMT Actuator With Torque Specifications
    G06944390Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (B) and the IMT actuator (C).
  3. Install the parts in the reverse order of removal with a new O-ring (D).
