Intake Air Resonator Removal/Installation

Remove the air intake cover (A).

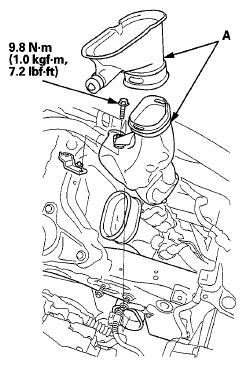

Fig 1: Identifying Air Intake Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the PCM (see PCM REPLACEMENT ).
Remove the air cleaner (see THROTTLE BODY CLEANING ).
Remove the battery base (A).

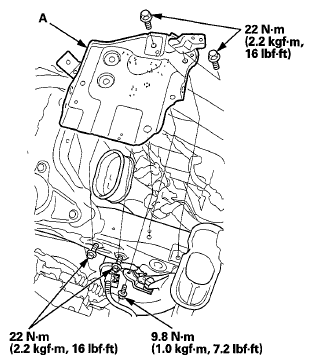

Fig 2: Battery Base With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air ducts (A).

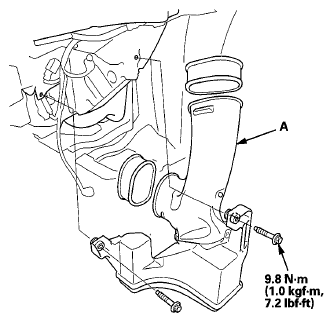

Fig 3: Intake Air Ducts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the front bumper (see FRONT BUMPER REMOVAL/INSTALLATION ).
Remove the intake air resonator (A).

Fig 4: Intake Air Resonator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
Do the battery installation procedure (see RECONNECTION ).
