Driving Position Memory Switch Test: Test

  1. Front Door Panel - Remove
  2. Driving Position Memory Switch - Test

    1. Disconnect the driving position memory switch connector, then check the driving position memory switch (A) according to the table.

    NOTE:

    • When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
    • Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

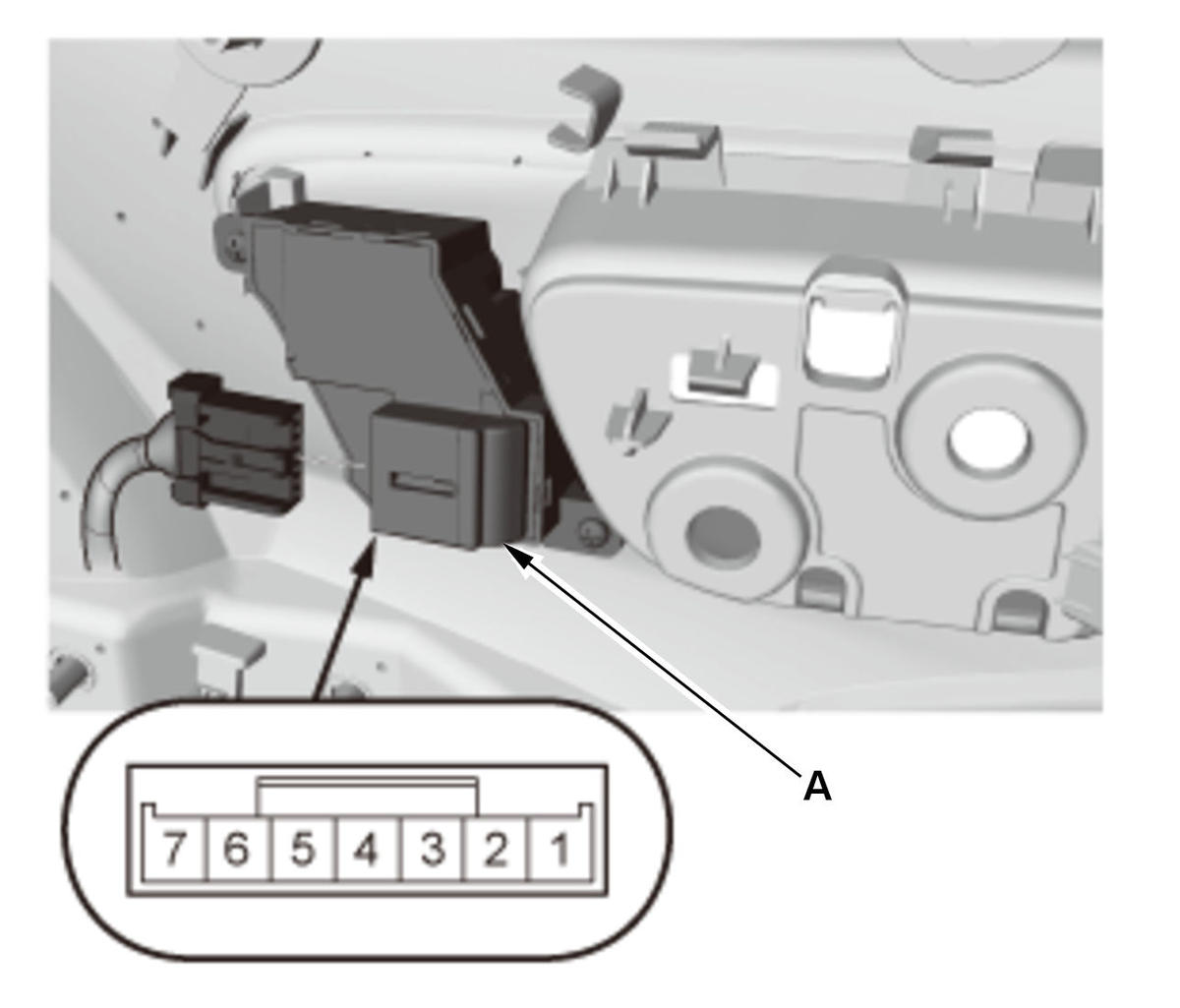

    GHH323011Courtesy of HONDA, U.S.A., INC.

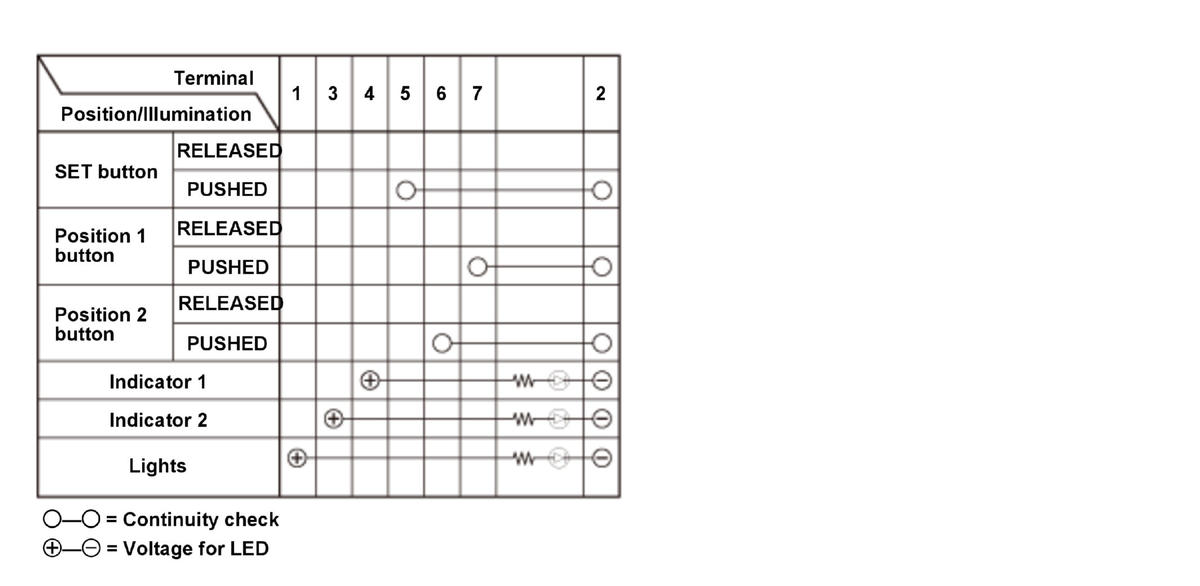

    GHH323012Courtesy of HONDA, U.S.A., INC.

    2. If the result is not as specified, replace the driving position memory switch .

  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
