Audio System Component Location Index (2013-17)

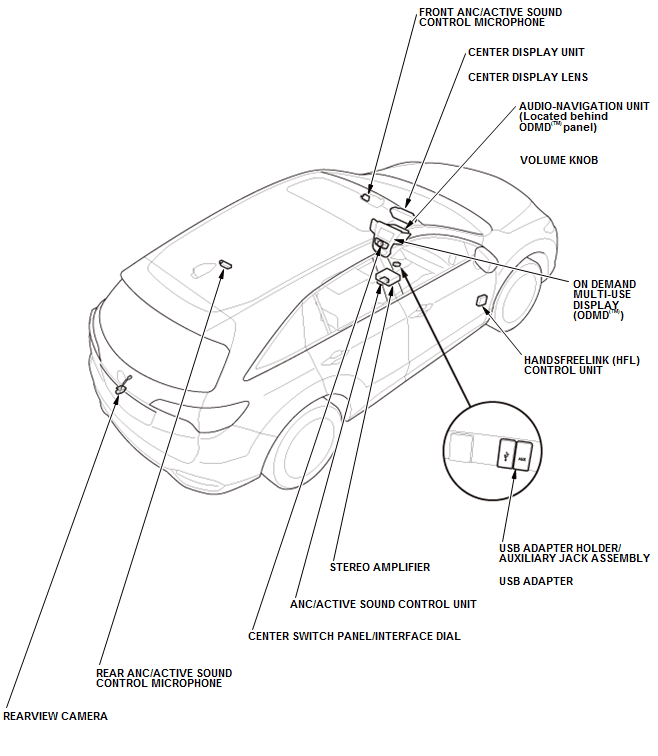

GHH68700

Courtesy of HONDA, U.S.A., INC.

GHH68701

Courtesy of HONDA, U.S.A., INC.

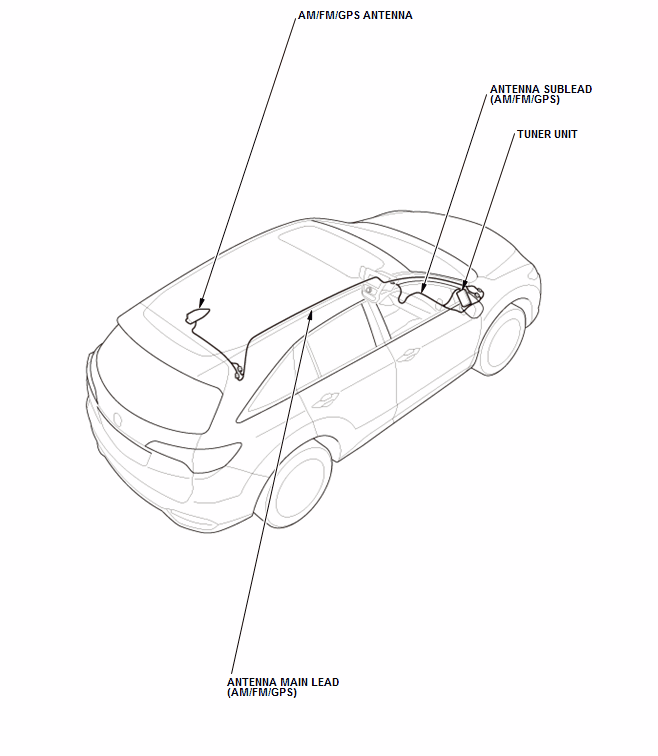

GHH68702

Courtesy of HONDA, U.S.A., INC.

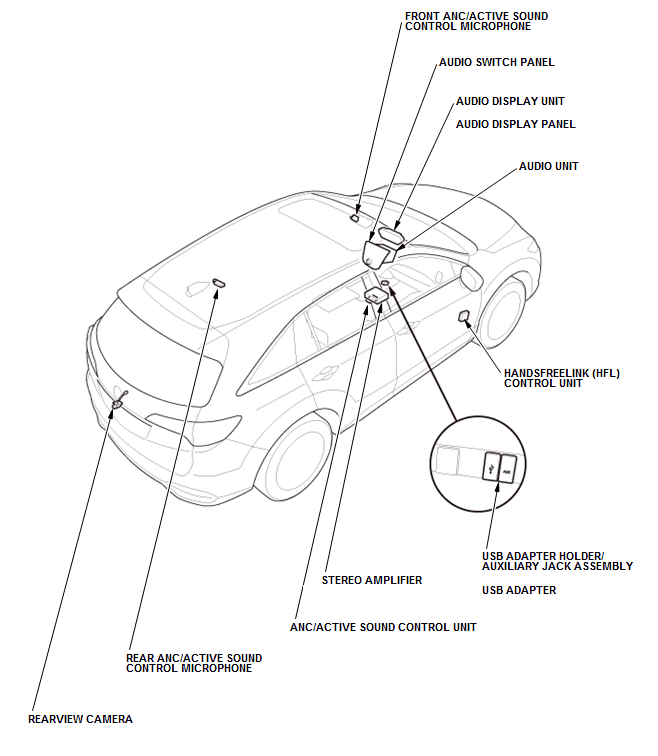

GHH68703

Courtesy of HONDA, U.S.A., INC.

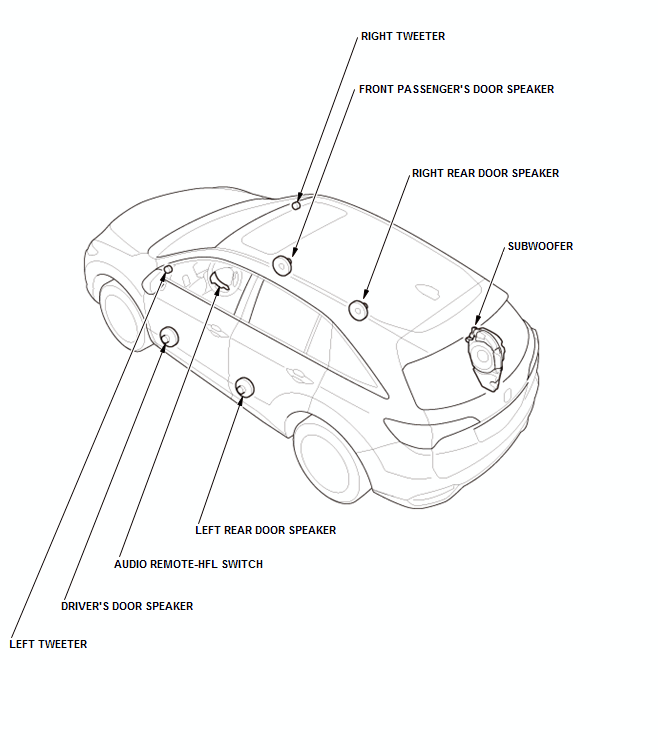

GHH68704

Courtesy of HONDA, U.S.A., INC.

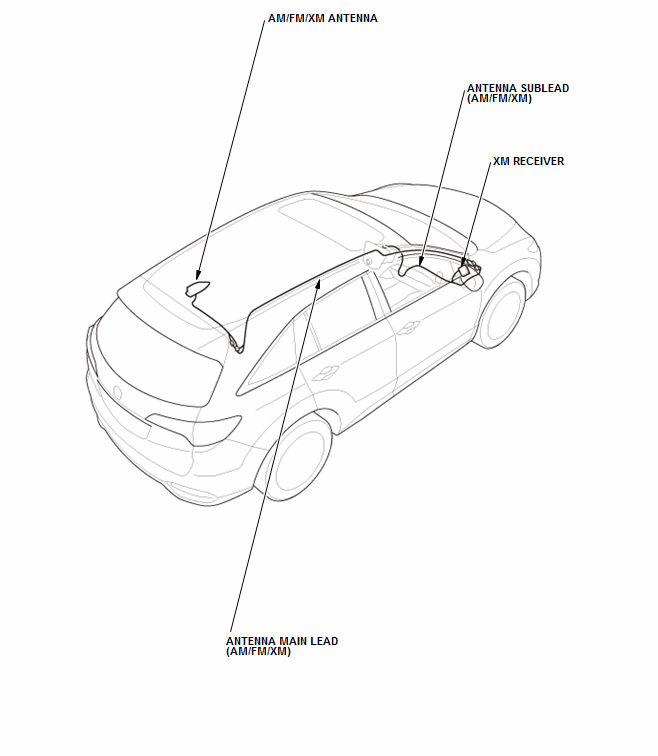

GHH68705

Courtesy of HONDA, U.S.A., INC.

GHH68706

Courtesy of HONDA, U.S.A., INC.

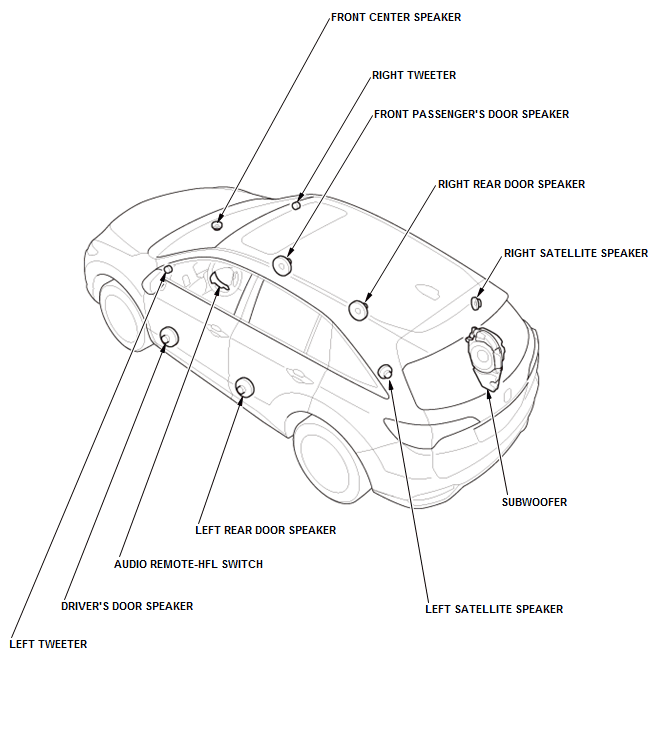

GHH68707

Courtesy of HONDA, U.S.A., INC.

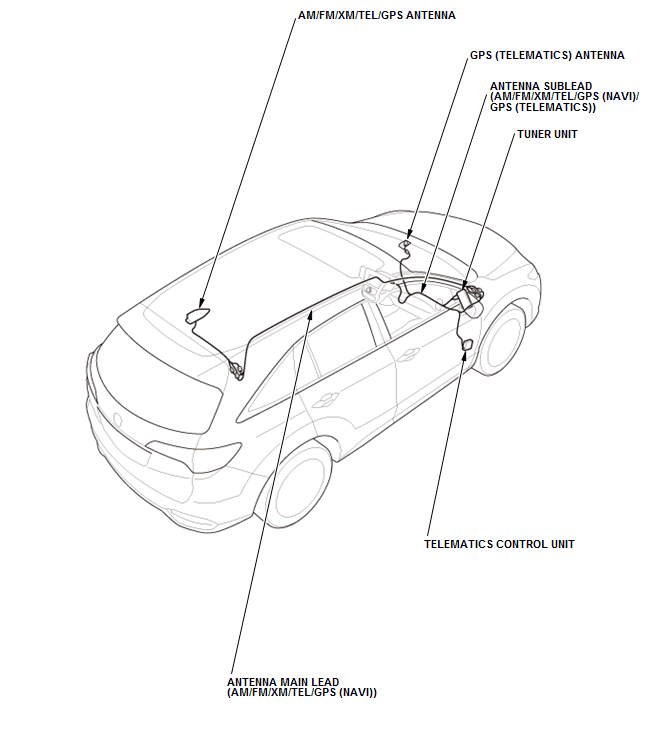

GHH68708

Courtesy of HONDA, U.S.A., INC.
