Exploded View

  1. Balancer Shaft/Balancer Shaft Holder

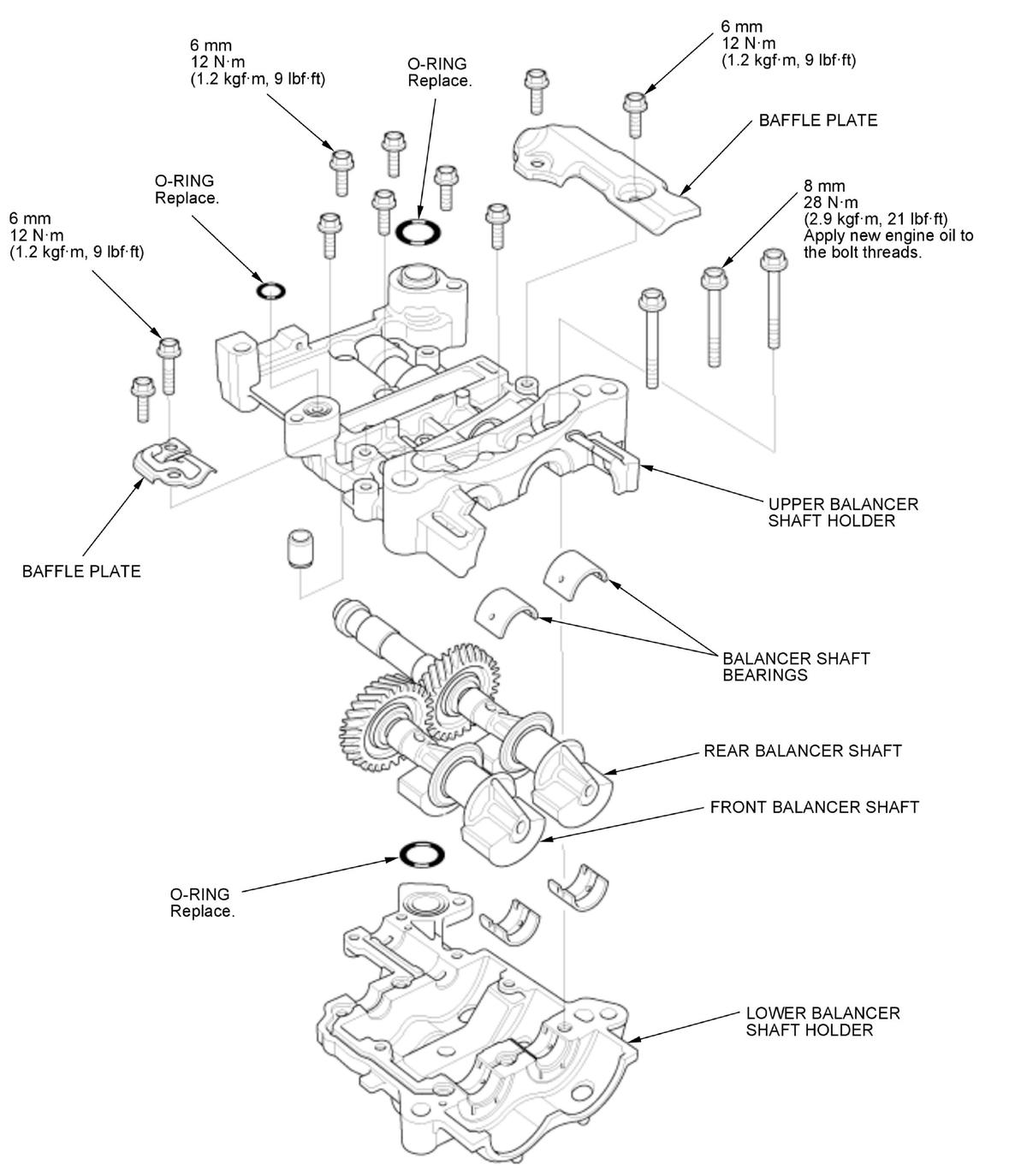

    Fig 1: Balancer Shaft/Balancer Shaft Holder With Torque Specifications
    GHH467460Courtesy of HONDA, U.S.A., INC.
