VTEC Rocker Arm (R20A5) (2013 2014 2015): Test

  1. Cylinder Head Cover - Remove
    1. Remove the cylinder head cover .
  2. VTEC Rocker Arm - Test
    GHH469022Courtesy of HONDA, U.S.A., INC.
    		 1. Rotate the crankshaft pulley clockwise. Make sure that intake secondary rocker arm A and intake secondary rocker arm B are separated and that intake secondary rocker arm A and intake secondary rocker arm B should move independently:
    • If intake secondary rocker arm A and intake secondary rocker arm B move together, remove the secondary rocker arms as an assembly, then check that the pistons in the secondary rocker arms move smoothly. If any rocker arm needs replacing, replace the primary and the secondary rocker arms as an assembly, then retest.
    • If intake secondary rocker arm A moves independently, go to step 2.

    2. Check that the air pressure on the shop air compressor gauge indicates over 400 kPa (4.0 kgf/cm 2, 57 psi).

    3. Inspect the valve clearance

    .

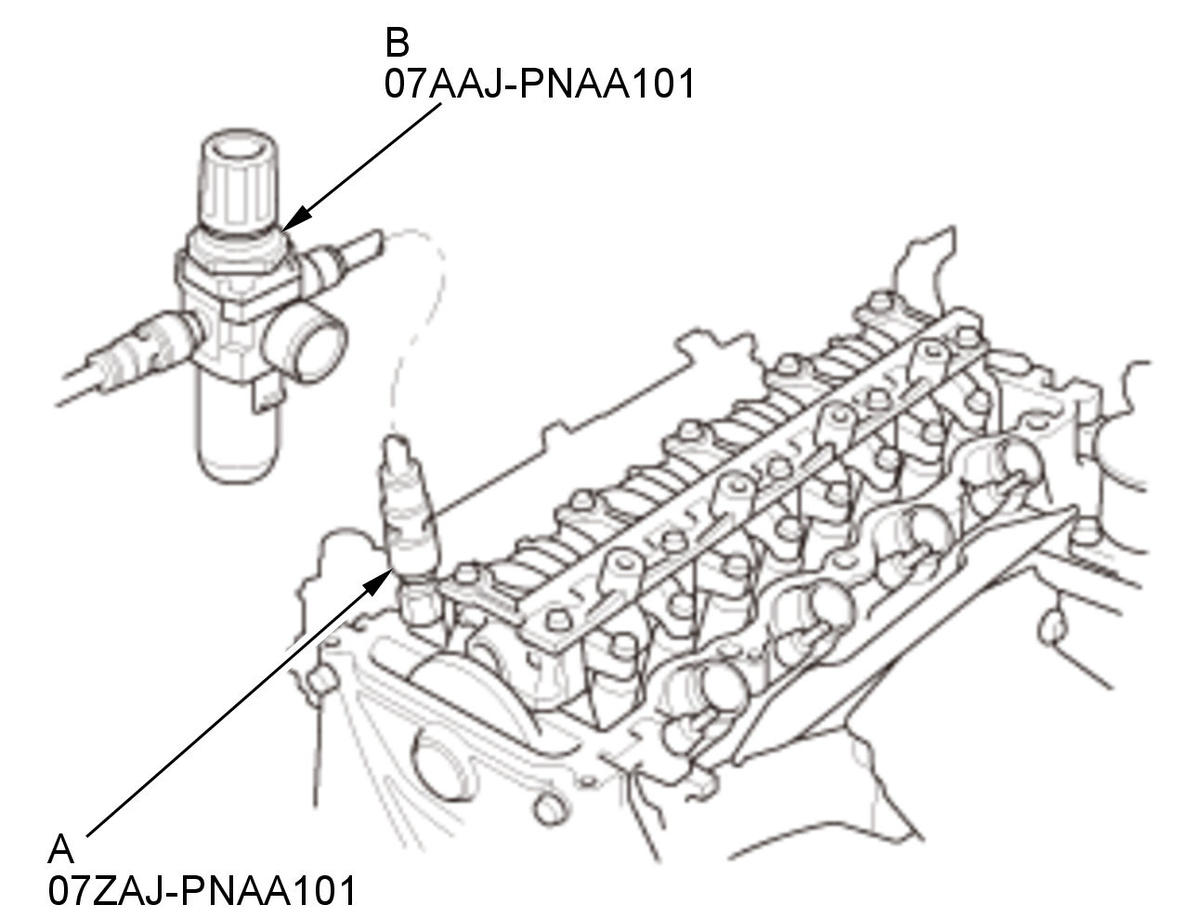

    GHH469023Courtesy of HONDA, U.S.A., INC.
    		 4. Install the VTEC air adapter (A) to the inspection hole, then connect the air pressure regulator (B).

    5. Loosen the valve on the air pressure regulator, and apply the specified air pressure.
    Specified Air Pressure:
    290 kPa (3.0 kgf/cm 2, 42 psi)

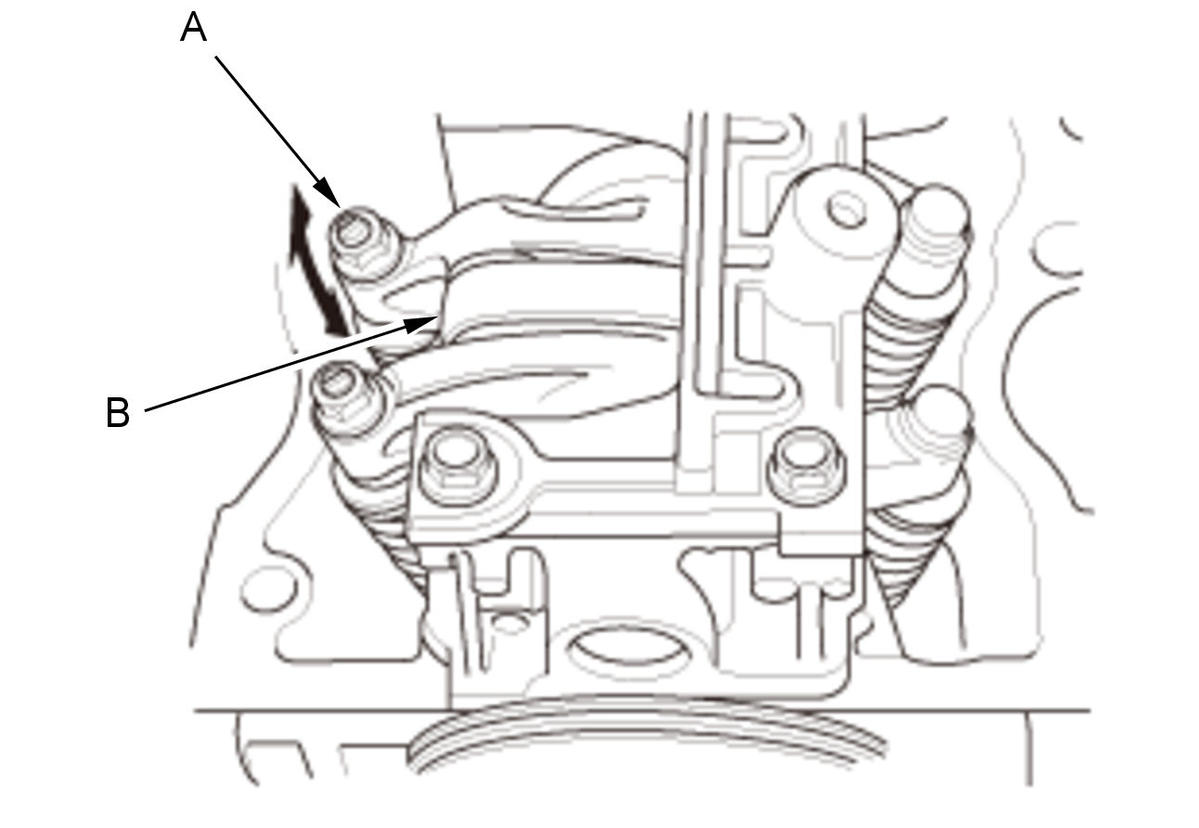

    GHH469024Courtesy of HONDA, U.S.A., INC.
    		 6. With the specified air pressure applied, rotate the crankshaft pulley clockwise. Intake secondary rocker arm A should move together with intake secondary rocker arm B:
    • If intake secondary rocker arm A and intake secondary rocker arm B move independently, remove the secondary rocker arms as an assembly, and check that the pistons in the secondary rocker arms move smoothly. If any rocker arm needs replacing, replace the primary and the secondary rocker arms as an assembly, then retest.
    • If intake secondary rocker arm A and intake secondary rocker arm B move together, go to step 7.

    7. Remove the air pressure regulator and the VTEC air adapter.
  3. Cylinder Head Cover - Install
    1. Install the cylinder head cover .
