AcuraLink Control Unit (XM Receiver) Update (2013-17): Procedure

NOTE:
  • Before you update an AcuraLink control unit (XM receiver), read the procedure. The order of connecting and disconnecting connectors is critical, and some steps must be done within a specified period of time. If the steps are not followed exactly, you may have to repeat the procedure from the start, and in some cases, you may damage the GNA600 or the AcuraLink control unit (XM receiver).
  • Before you update the AcuraLink control unit (XM receiver), test the vehicle battery , and only proceed if the results are good. Make sure the battery is connected to a battery booster (not a battery charger) while updating the AcuraLink control unit (XM receiver). If the battery is not in good condition, or it dies during the updating procedure, you may damage the AcuraLink control unit (XM receiver).
  • Whenever you install a new AcuraLink control unit (XM receiver), you must update the AcuraLink control unit (XM receiver) with the latest software.
  • The GNA600 is the only tool currently available to update the AcuraLink control unit (XM receiver).
  • If you are updating a AcuraLink control unit (XM receiver) in a new vehicle, make sure all the fuses are installed.
  • Make sure the iN workstation has the latest HDS software installed (The AcuraLink update software is contained in the HDS update CD.).
  • The update may take up to 60 minutes.
  • You cannot update an AcuraLink control unit (XM receiver) with its current or previous software versions. It will only accept a new software version.
  • If you encounter errors in the software, follow the on-screen instructions, or if necessary, reboot the iN workstation, and try again.
  • There are five process involved in updating the AcuraLink control unit (XM receiver):
    • Setting up the GNA600
    • Capturing the current program ID from the AcuraLink control unit (XM receiver)
    • Download the new software to the GNA600
    • Update the software in the vehicle's AcuraLink control unit (XM receiver)
    • Confirm the AcuraLink self-diagnosis
  • While updating the AcuraLink control unit (XM receiver), do not press the engine start/stop button to select the OFF mode.
  • To prevent damage to the AcuraLink control unit (XM receiver), do not operate anything electrical (brakes, head lights, etc.) during the update.
  • Check any official Honda service website for more service information about updating the AcuraLink control unit (XM receiver).
  1. AcuraLink Control Unit (XM Receiver) - Update

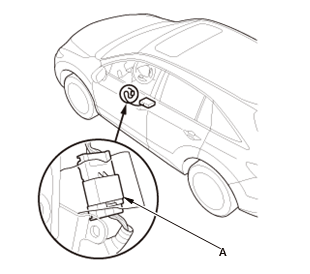

    GHH67971Courtesy of HONDA, U.S.A., INC.
    1. Remove the driver's center console side cover .
    2. Make sure the vehicle is in OFF mode.
    3. Connect the GNA600 to the AcuraLink connector (A), not the DLC.
    4. Launch the AcuraLink Update program, and follow the on-screen instructions to complete the update.
    NOTE:
    • If the software in the AcuraLink control unit (XM receiver) is the latest, disconnect the update tool from the AcuraLink connector.
    • If the update is part of a troubleshooting or a repair procedure, return to that procedure and continue troubleshooting or repairing the vehicle.

    5. Install the driver's center console side cover .
