Door Key Cylinder Switch Test: Test

  1. Front Door Panel - Remove

    Remove the driver's door panel .

  2. Door Key Cylinder Switch - Test
    GHH350599GHH350600Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH350599GHH350600Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

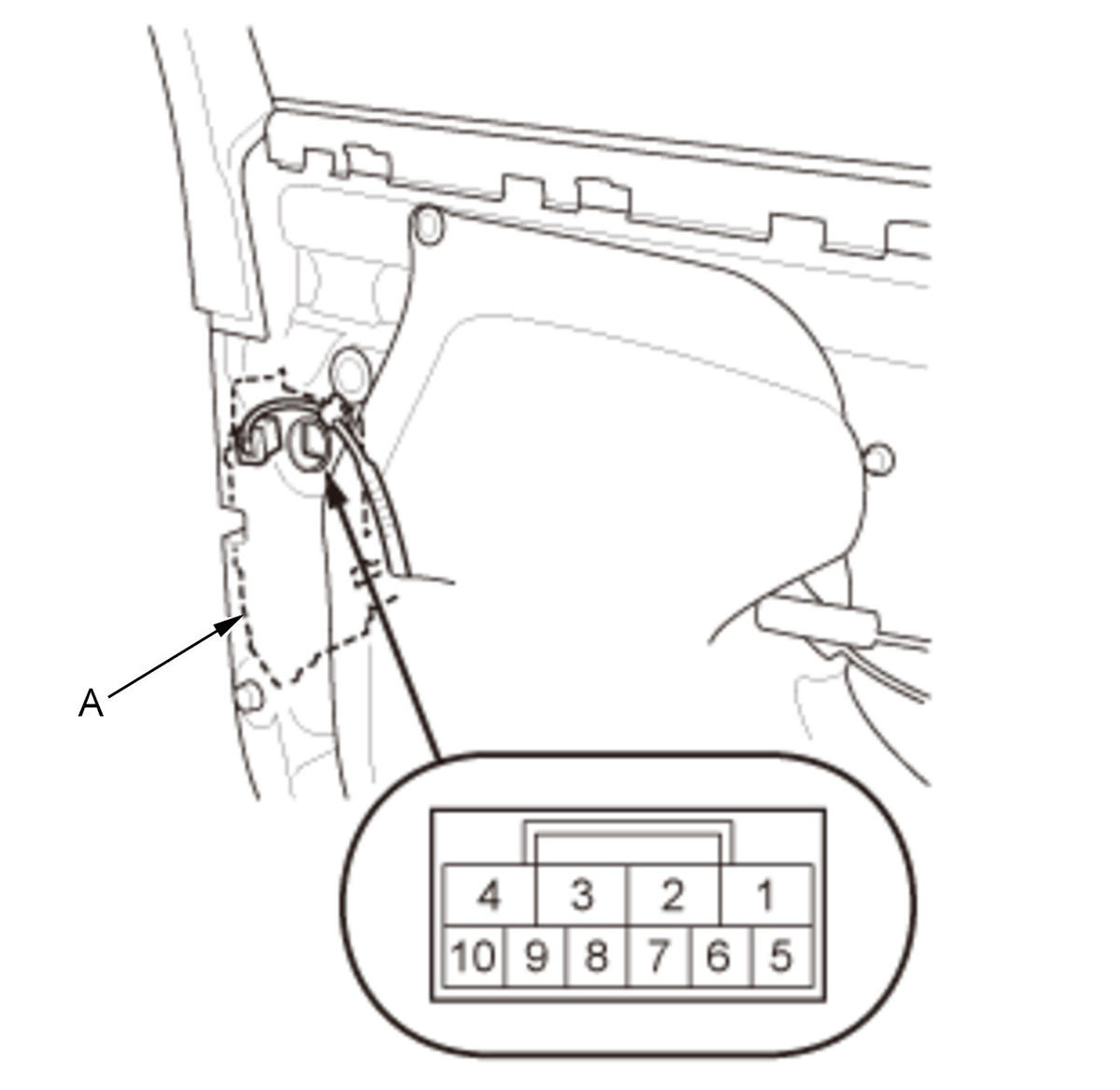

    		 1. Disconnect the driver's door latch connector.

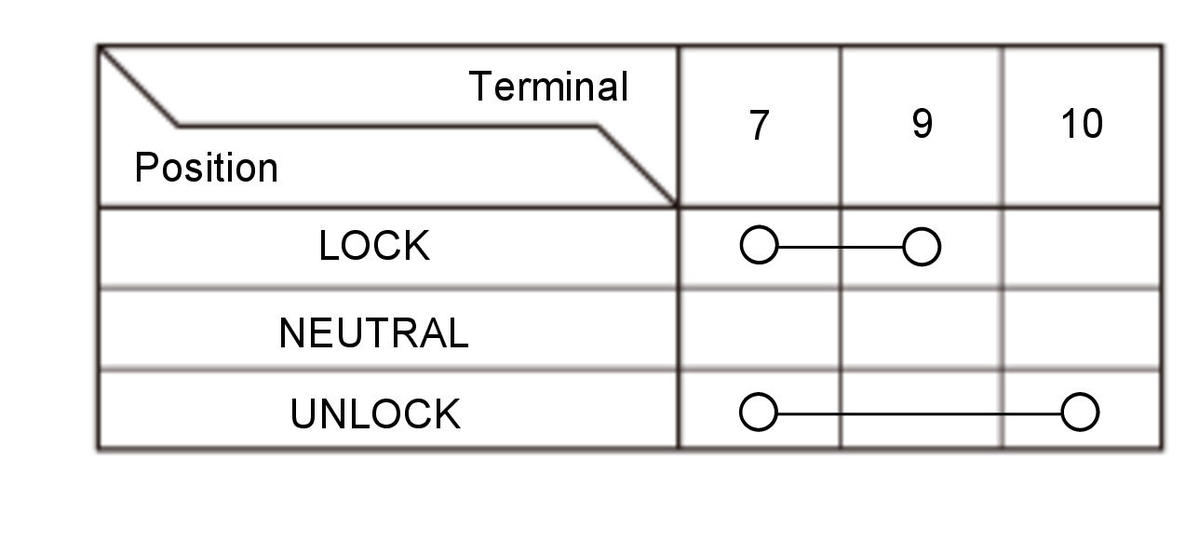

    2. Check for continuity between the terminals in each switch position according to the table.

    3. If the continuity is not as specified, the driver's door key cylinder switch is faulty; replace the driver's door latch (A).

    4. Connect the driver's door latch connector.
  3. Front Door Panel - Install

    Install the driver's door panel .
