Engine Oil Jet Bolt: Inspection

Oil Jet Bolt - Remove
Remove the oil jet bolt .
Oil Jet Bolt - Inspect

Courtesy of HONDA, U.S.A., INC.

Inspect the oil jet bolt as follows:

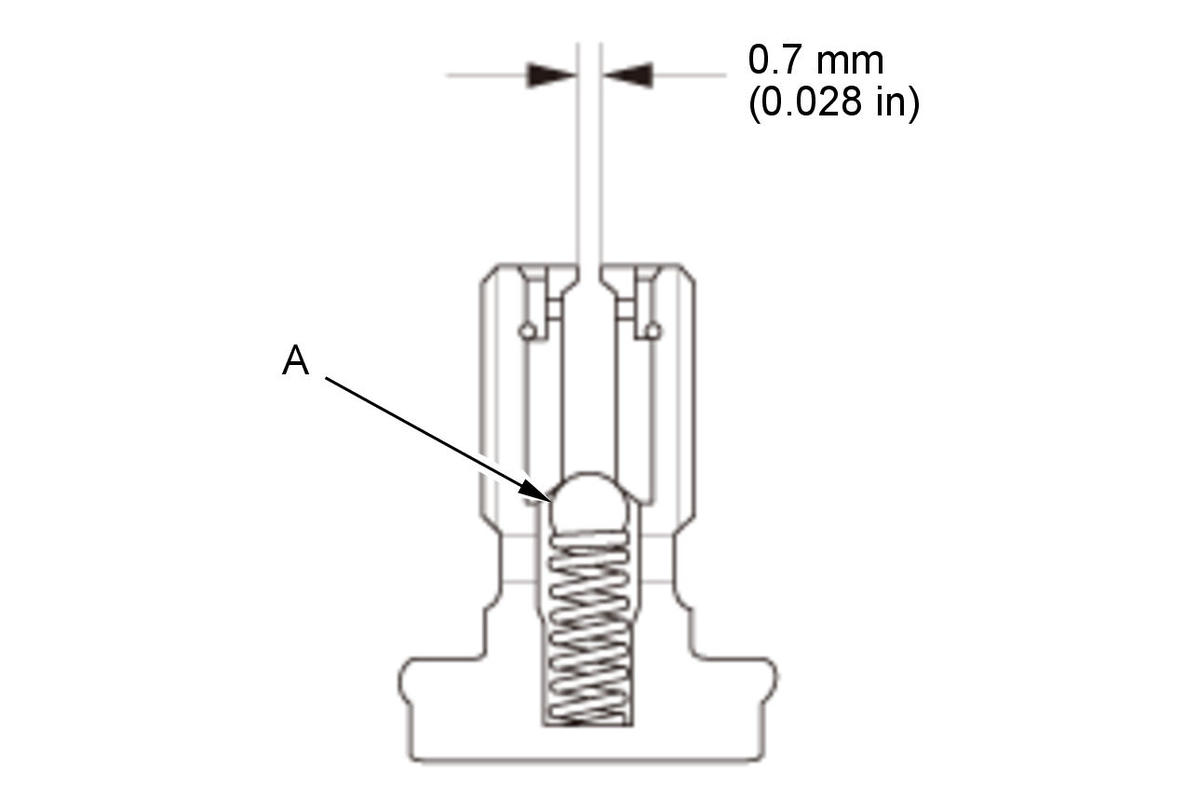

- Make sure that a 0.6 mm (1/64 in) diameter drill bit will go through the oil intake (0.7 mm (0.028 in) diameter). Make sure the check ball (A) moves smoothly and has a stroke of about 4.0 mm (0.157 in).
- Check the oil jet bolt operation with an air nozzle. It should take at least 314 kPa (3.20 kgf/cm 2, 45.5 psi) to unseat the check ball.
Oil Jet Bolt - Install
Install the oil jet bolt .
