Keyless Access Backup Control Unit: Removal

  1. Keyless Access Control Unit - Remove
    1. Remove the keyless access control unit .
  2. Backup Control Unit - Remove

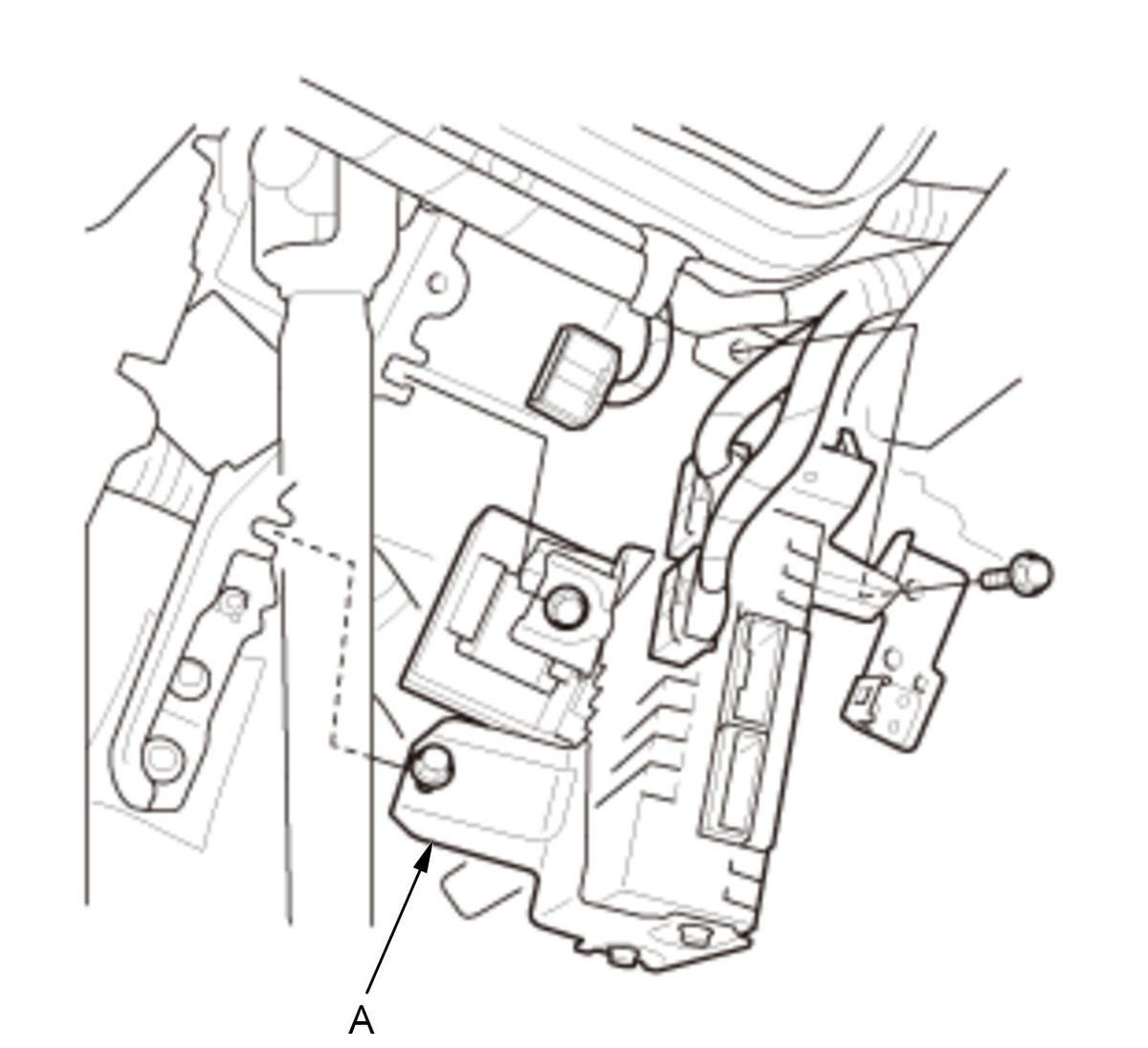

    GHH474039Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the stereo amplifier connector.

    2. Remove the bracket (A).

    3. Remove the backup control unit connector.

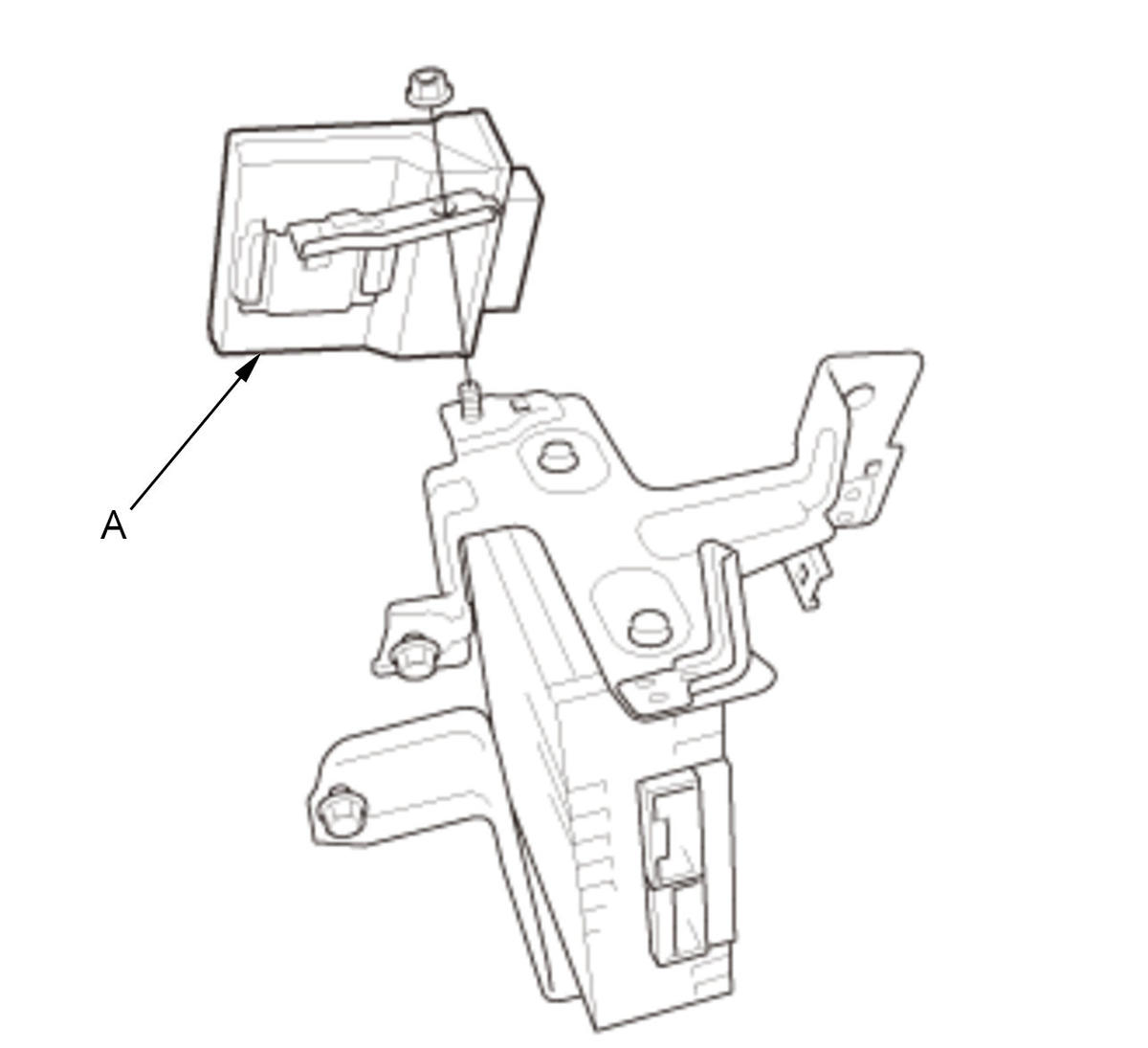

    GHH474040Courtesy of HONDA, U.S.A., INC.
    		 4. Remove the backup control unit (A) from the bracket.
