How to Check Error History (Navigation DTCs)

NOTE: The navigation DTCs cannot be retrieved with the HDS.

The Error History feature is to record intermittent navigation issues that occur while the client is using the system. Sometimes the client complaint cannot be duplicated. The error history may record the information needed to diagnose the problem. To check the error history.

1. Start the engine.

2. Press and hold the DEST/ROUTE, the MAP/GUIDE, and the CANCEL buttons for 3 seconds, or connect the SCS service connector to the navigation service check connector located by the center console driver's side.

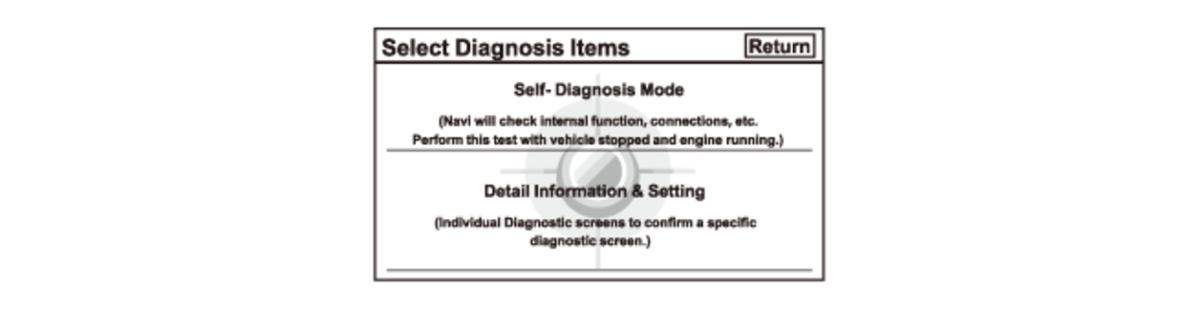

3. When the Select Diagnosis Items menu is displayed, select the Self-Diagnosis Mode.

Courtesy of HONDA, U.S.A., INC.

4. When the audio-navigation unit has hard error codes, the Error History icon appears yellow when the Self-Diagnosis Mode (System Link) screen is displayed. When no hard error codes are stored, the icon appears gray. To view the errors with their navigation DTC, select the Error History icon.

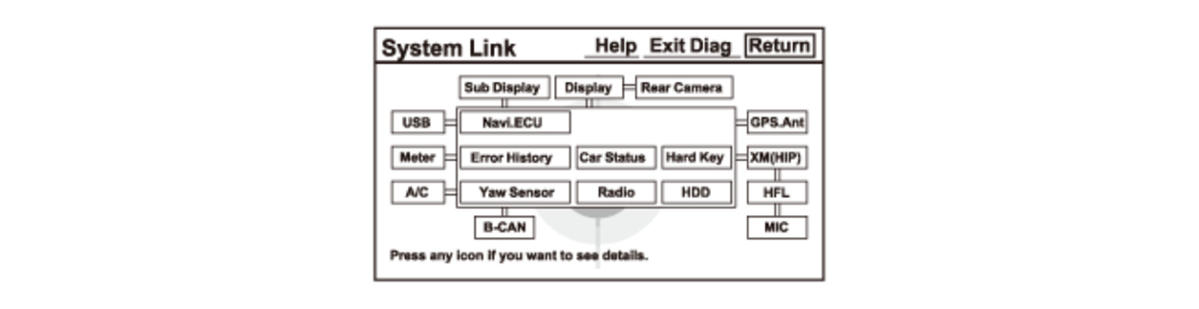

USA models

Courtesy of HONDA, U.S.A., INC.

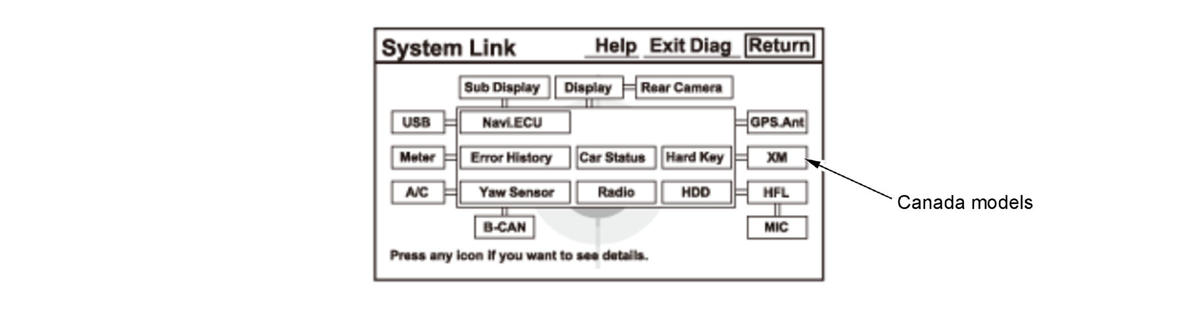

Except USA models

Courtesy of HONDA, U.S.A., INC.

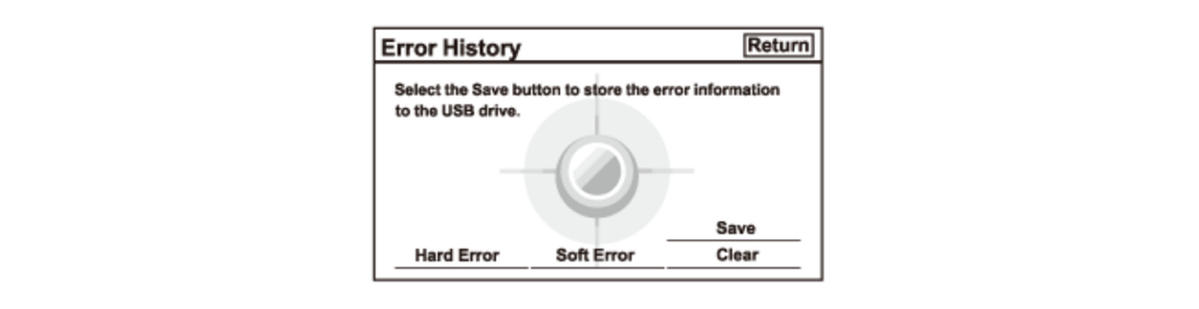

5. Select Hard Error in the Error History main menu.

NOTE: Soft Error is for factory use only.

Courtesy of HONDA, U.S.A., INC.

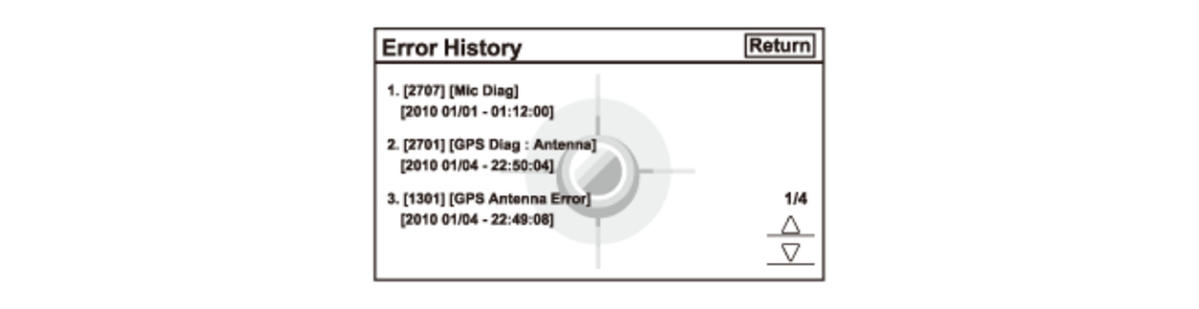

Hardware Error History

6. The Hard Error screen displays the following information for each error:

The navigation DTC for the error.
A brief description of the navigation DTC.
The date and time when the error occurred.

NOTE:

To see additional errors, use the interface dial to select UP or DOWN.
Select Clear to delete the error history. The Save feature is for factory use only.
Write down the navigation DTCs and error history before deleting.

7. Use the navigation DTC Troubleshooting table to troubleshoot the error.

Courtesy of HONDA, U.S.A., INC.

8. Select Return to exit the Error History main menu.

Software Error (Soft error) History

Software errors are not available. They are for factory use only.
