VSA Modulator-Control Unit Connector for Inputs and Outputs (2013 2014 2015)

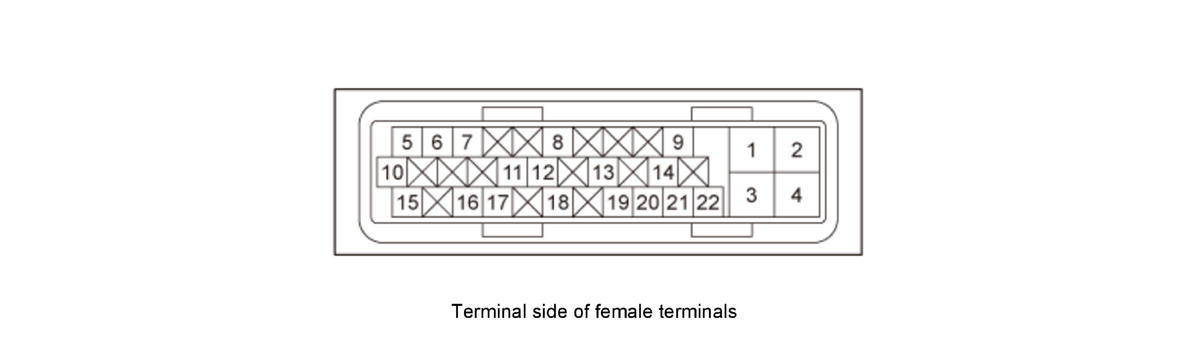

VSA Modulator-Control Unit Inputs and Outputs for 22P Connector (Connector Disconnected)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Wire color	Terminal sign	Description	Signal
1	BRN	ABS GND	Ground for the VSA modulator-control unit	Continuity to ground
2	BRN	ABS GND	Ground for the pump motor	Continuity to ground
3	WHT	+B ABS/VSA FSR	Power source for the fail-safe relay	Battery voltage (about 12 V) at all times
4	RED	+B ABS/VSA MTR	Power source for the motor relay	Battery voltage (about 12 V) at all times
5	Not used	Not used	---	---
6	Not used	Not used
7	Not used	Not used
8	GRY	IG1 VSA/ABS	Power source for activating the system	With vehicle in ON mode: battery voltage (about 12 V)
9	Not used	Not used	---	---
10	WHT	F CAN-H	F-CAN communication circuit
11	LT GRN	RR R ABS SNSR+	Detects right-rear wheel speed sensor signal
12	ORN	FR L ABS SNSR+	Detects left-front wheel speed sensor signal
13	BLU	RR L ABS SNSR+	Detects left-rear wheel speed sensor signal
14	GRN	FR R ABS SNSR+	Detects right-front wheel speed sensor signal
15	RED	F CAN-L	F-CAN communication circuit
16	LT BLU	K LINE	Communication with HDS	Pulse voltage (digital signal)
17	WHT	RR R ABS SNSR-	Detects right-rear wheel speed sensor signal	---
18	GRY	FR L ABS SNSR-	Detects left-front wheel speed sensor signal
19	PUR	RR L ABS SNSR-	Detects left-rear wheel speed sensor signal
20	Not used	Not used	---
21	PNK	FR R ABS SNSR-	Detects right-front wheel speed sensor signal
22	Not used	Not used	---
