VTEC Rocker Arm (K24Z7) (2013 2014 2015): Test

  1. Cylinder Head Cover - Remove
    1. Remove the cylinder head cover .
  2. VTEC Rocker Arm - Test

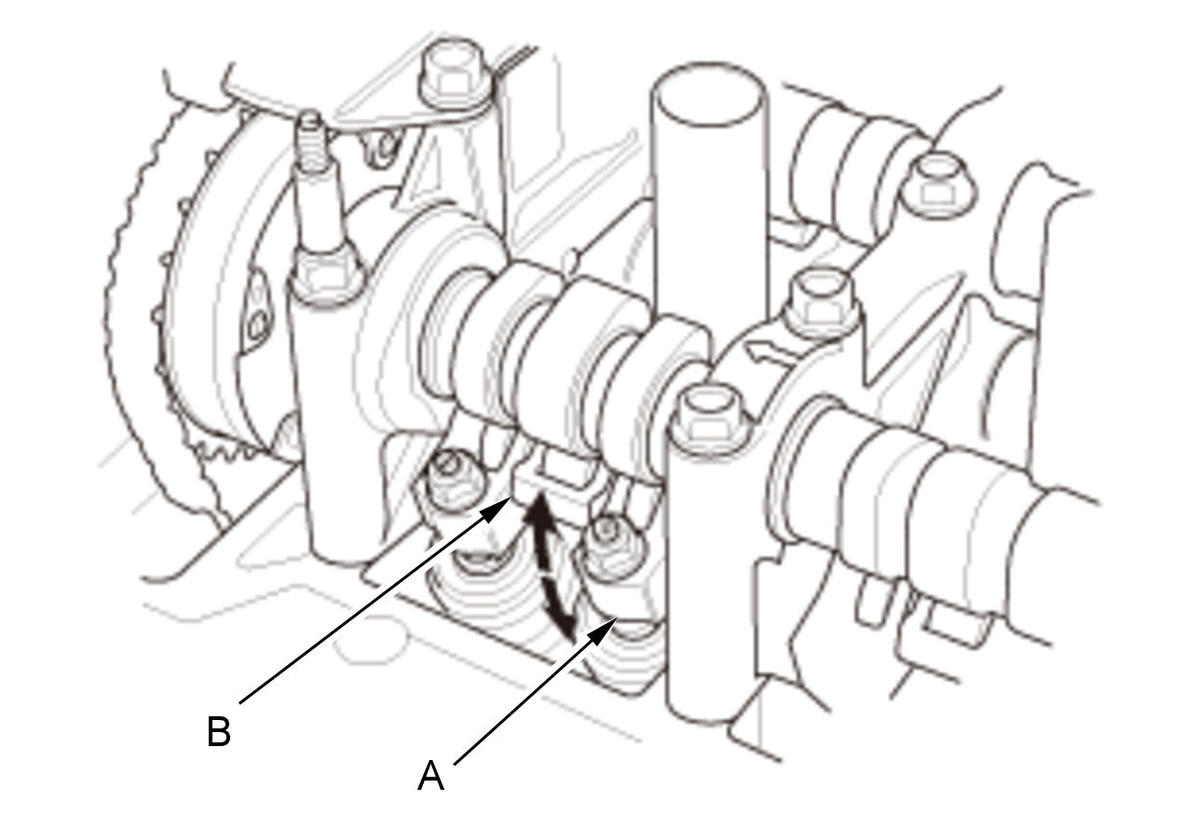

    GHH469019Courtesy of HONDA, U.S.A., INC.
    		 1. Rotate the crankshaft pulley clockwise. Make sure that the intake secondary rocker arm (A) and the intake mid rocker arm (B) are separated and that the intake secondary rocker arm and the intake mid rocker arm should move independently:
    • If the mid and secondary rocker arms move together, remove the mid, primary, and secondary rocker arms as an assembly, and check that the pistons in the rocker arms move smoothly. If any rocker arm needs replacing, replace the mid, primary, and secondary rocker arms as an assembly, then retest.
    • If the secondary rocker arm moves independently, go to step 2.

    2. Check that the air pressure on the shop air compressor gauge indicates over 400 kPa (4.08 kgf/cm 2, 58.0 psi).

    3. Inspect the valve clearance

    .

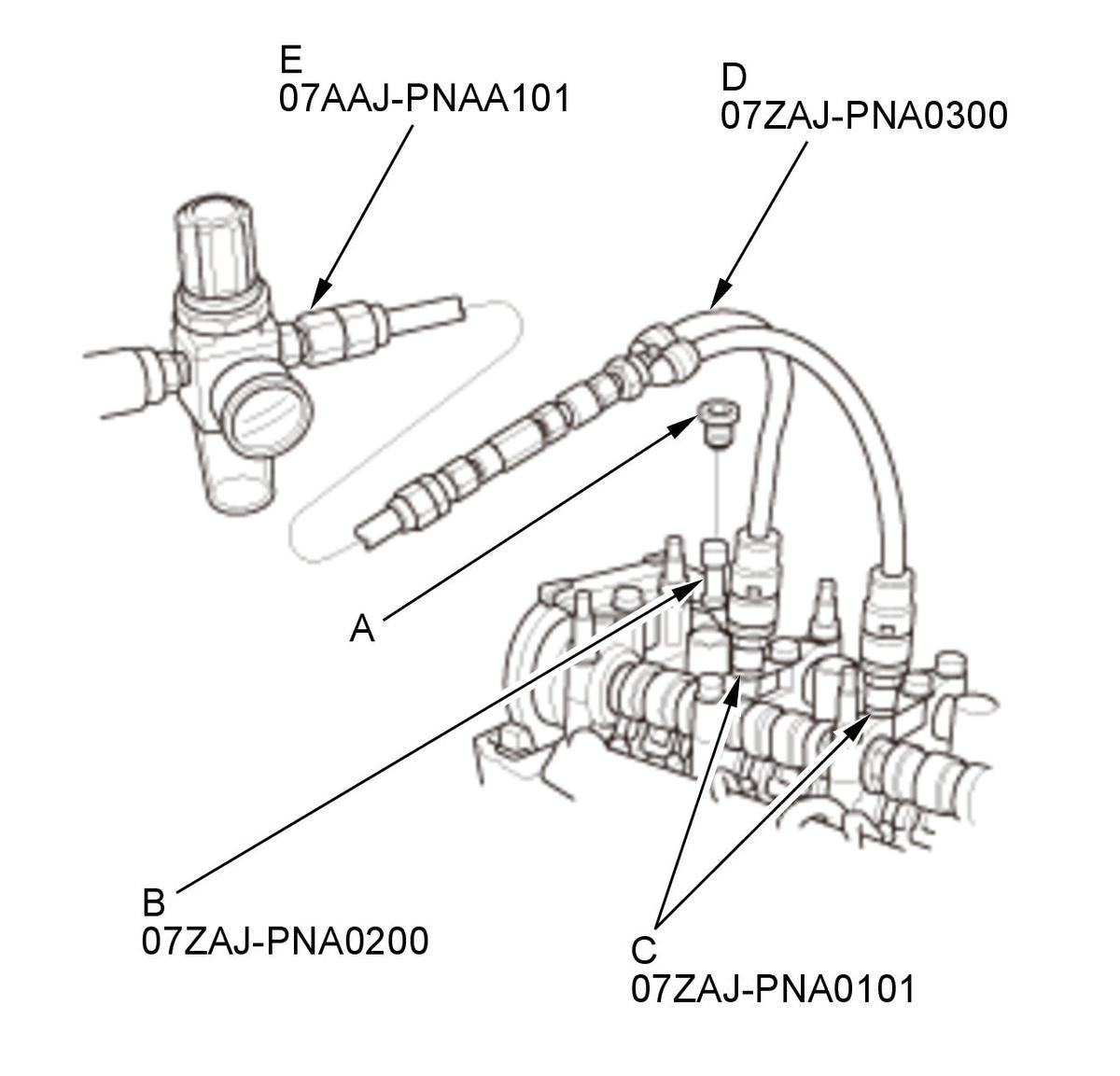

    GHH469020Courtesy of HONDA, U.S.A., INC.
    		 4. Remove the sealing bolt (A) from the relief hole, and install the VTEC air stopper (B).

    5. Remove the No. 2 and No. 3 camshaft holder bolts, and install the VTEC air adapters (C) finger-tight.

    6. Connect the air joint adapter (D) and the air pressure regulator (E).

    7. Loosen the valve on the air pressure regulator, and apply the specified air pressure.
    Specified Air Pressure:
    290 kPa (2.96 kgf/cm 2, 42.1 psi)

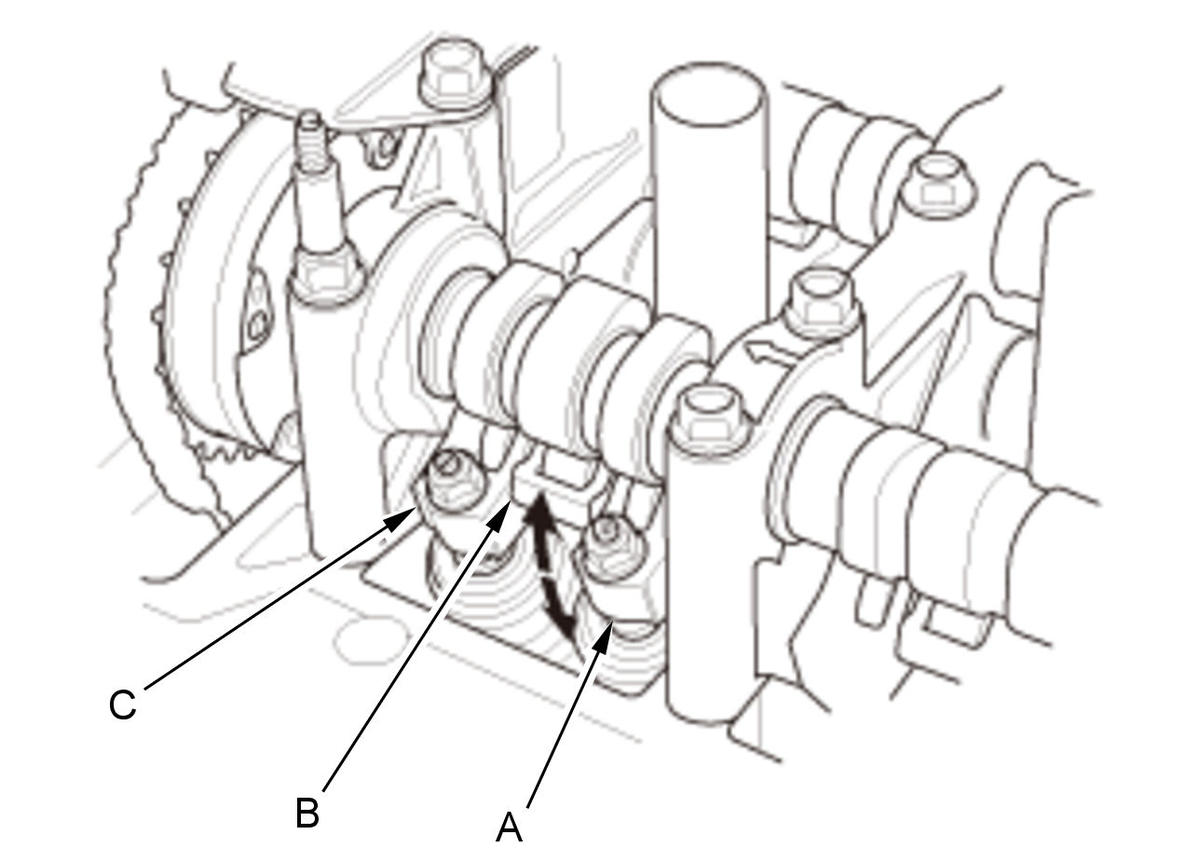

    GHH469021Courtesy of HONDA, U.S.A., INC.
    		 8. With the specified air pressure applied, rotate the crankshaft pulley clockwise. The secondary rocker arm (A) should move together with the mid rocker arm (B) and the primary rocker arm (C):
    • If the mid, primary, and secondary rocker arms move independently, remove the mid, primary, and the secondary rocker arms as an assembly, and check that the pistons in the rocker arms move smoothly. If any rocker arm needs replacing, replace the mid, primary, and secondary rocker arms as an assembly, then retest.
    • If the mid, primary, and secondary rocker arms move together, go to step 9.

    9. Remove the air pressure regulator, the air joint adapter, the VTEC air adapters, and the VTEC air stopper.

    10. Torque the camshaft holder mounting bolts to 22 N.m (2.2 kgf.m, 16 lbf.ft).

    11. Torque the sealing bolt to 10 N.m (1.0 kgf.m, 7 lbf.ft).
  3. Cylinder Head Cover - Install
    1. Install the cylinder head cover .
