Relay Box Locations & Control Unit Locations (2013 2014 2015): Dashboard

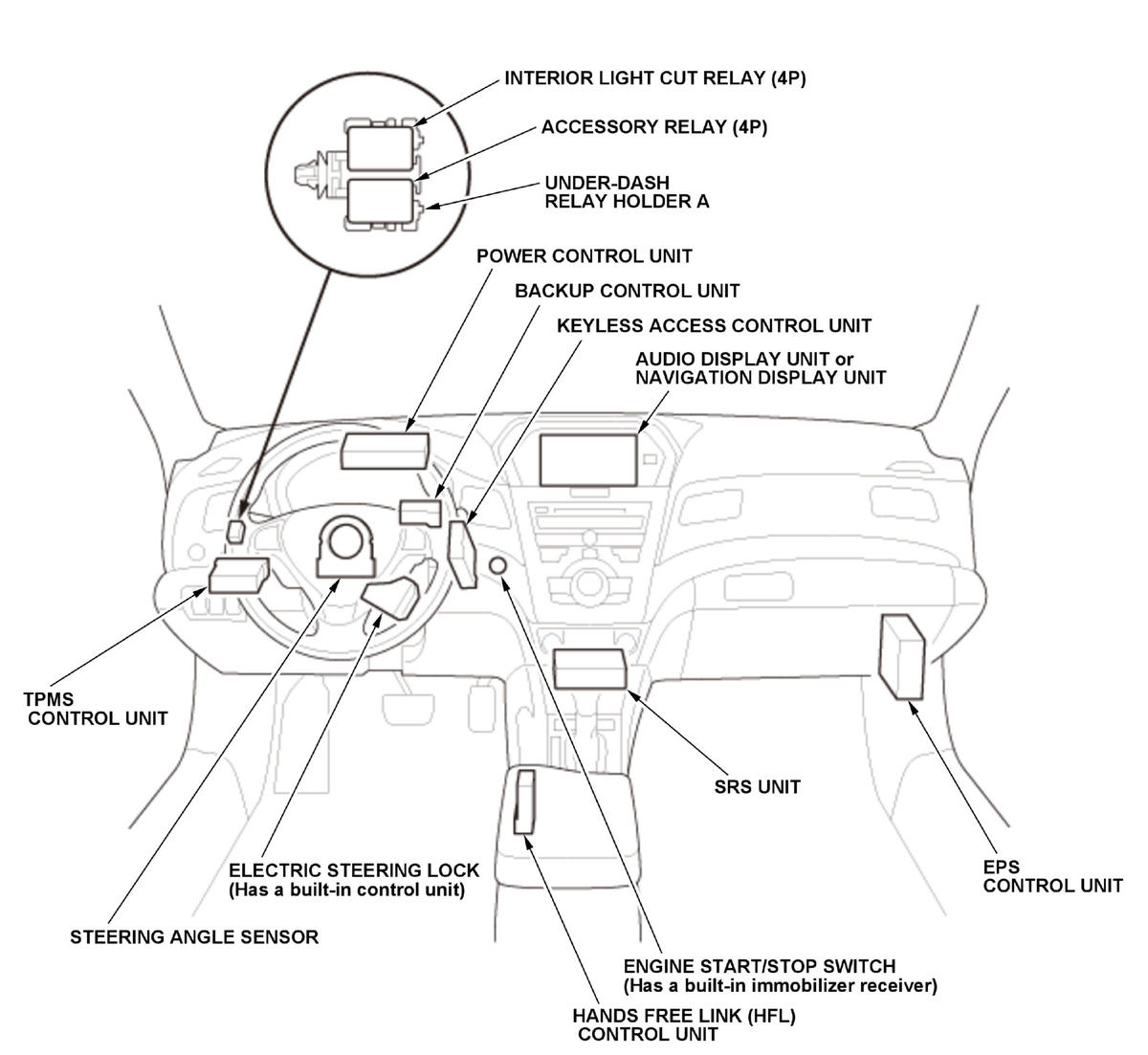

Dashboard (1/2)
Courtesy of HONDA, U.S.A., INC.

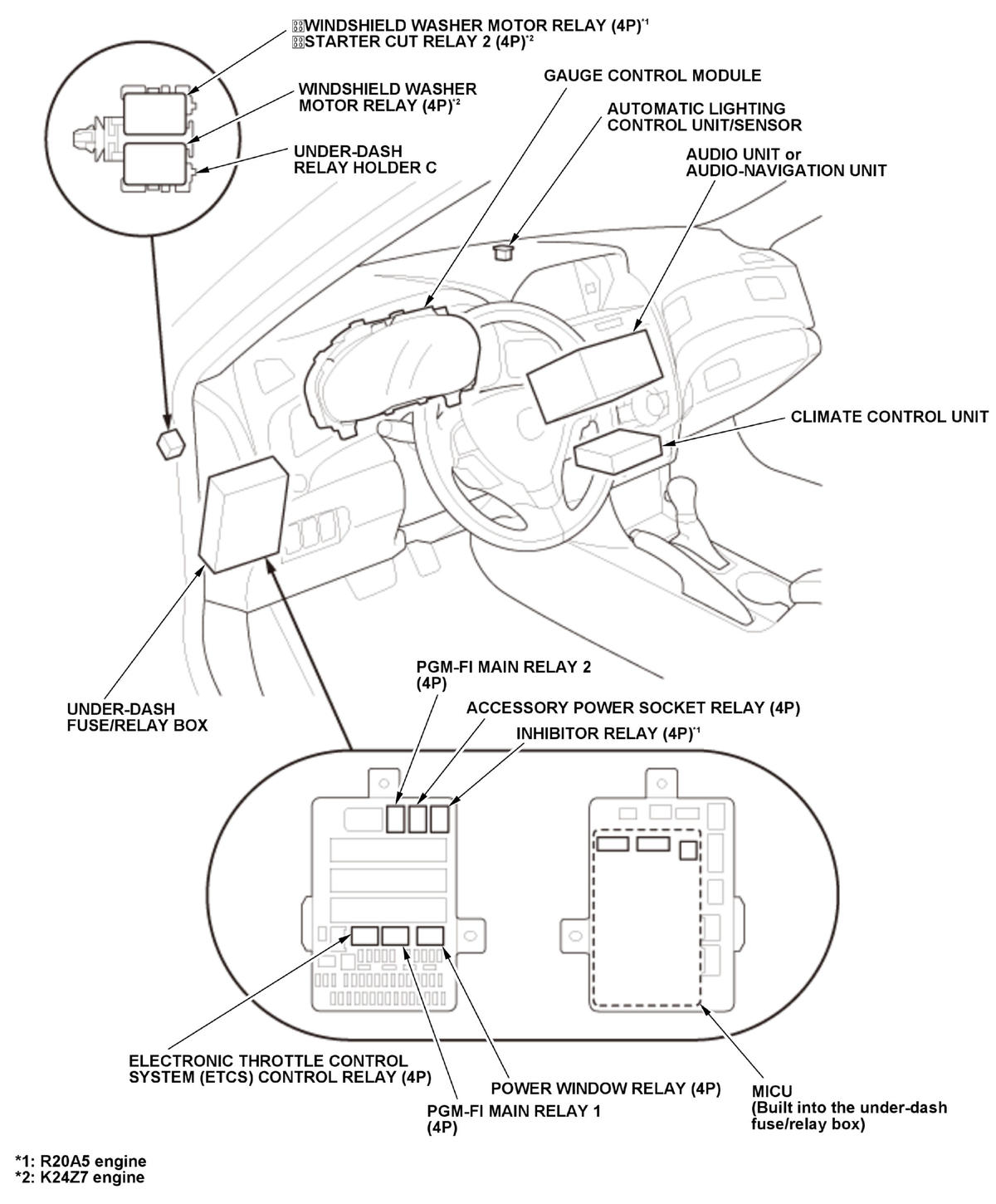

Dashboard (2/2)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
