Engine Compartment

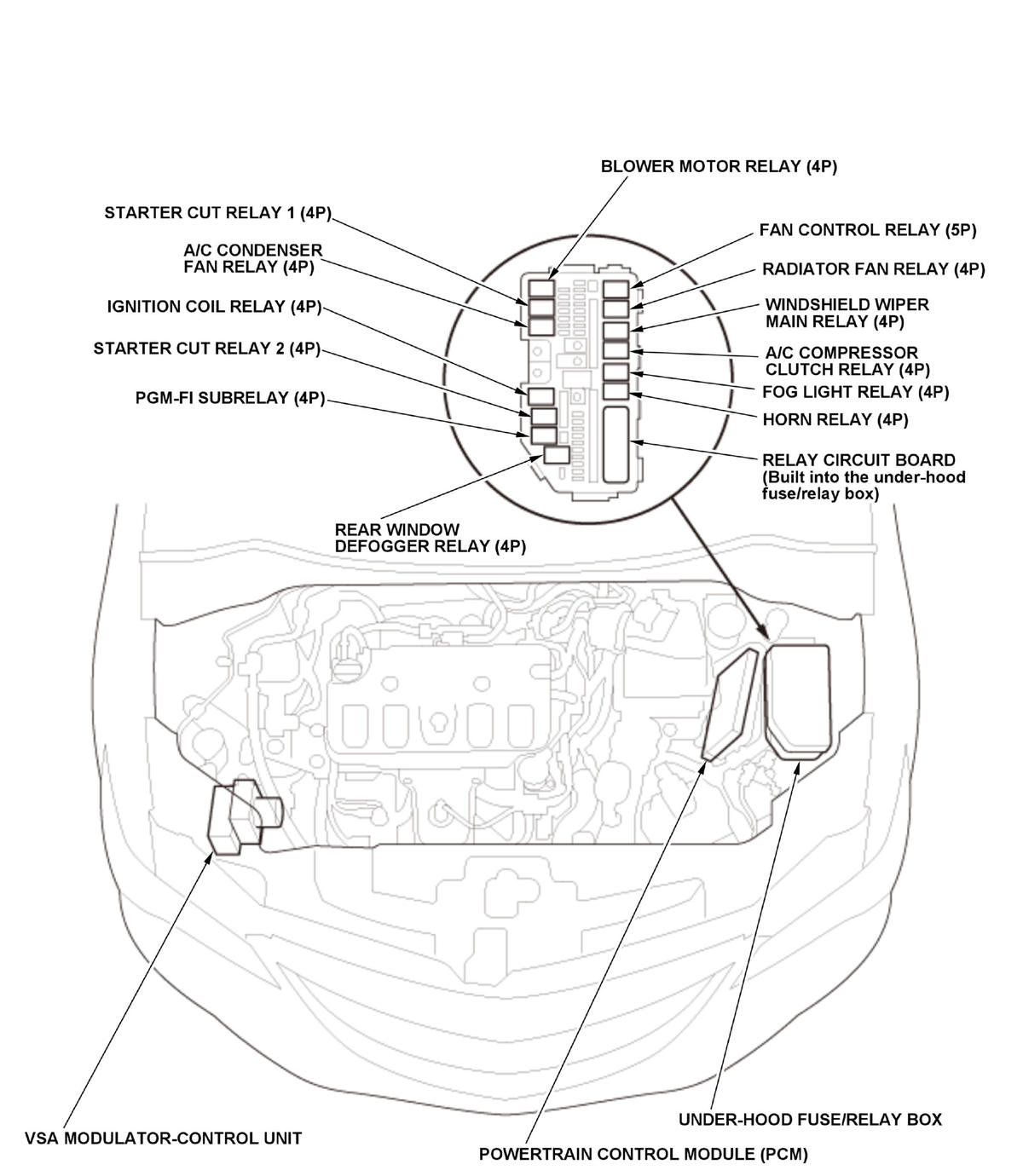

R20A5 Engine
Courtesy of HONDA, U.S.A., INC.

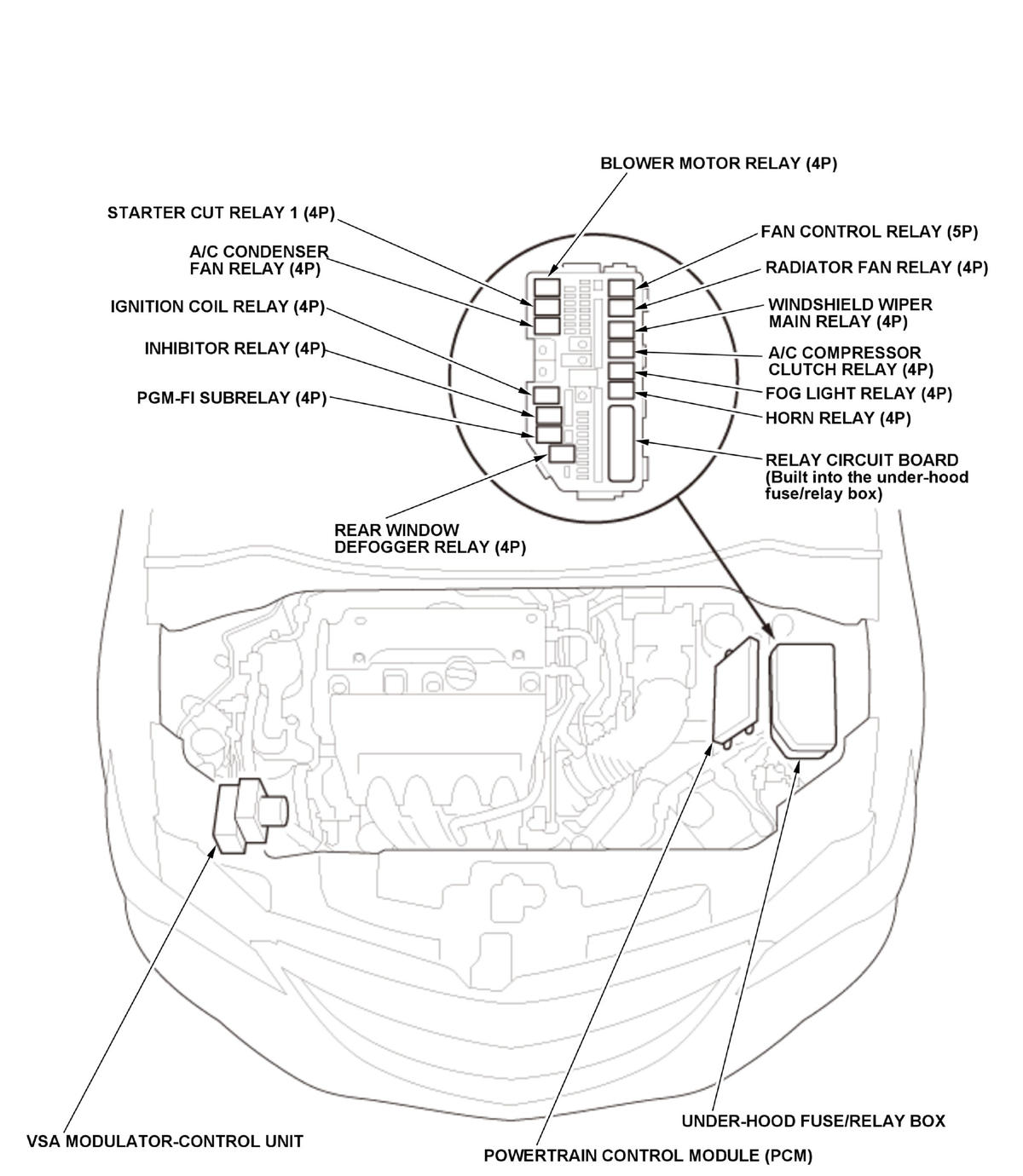

K24Z7 Engine
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
