Relay Box Locations & Control Unit Locations (2016): Dashboard

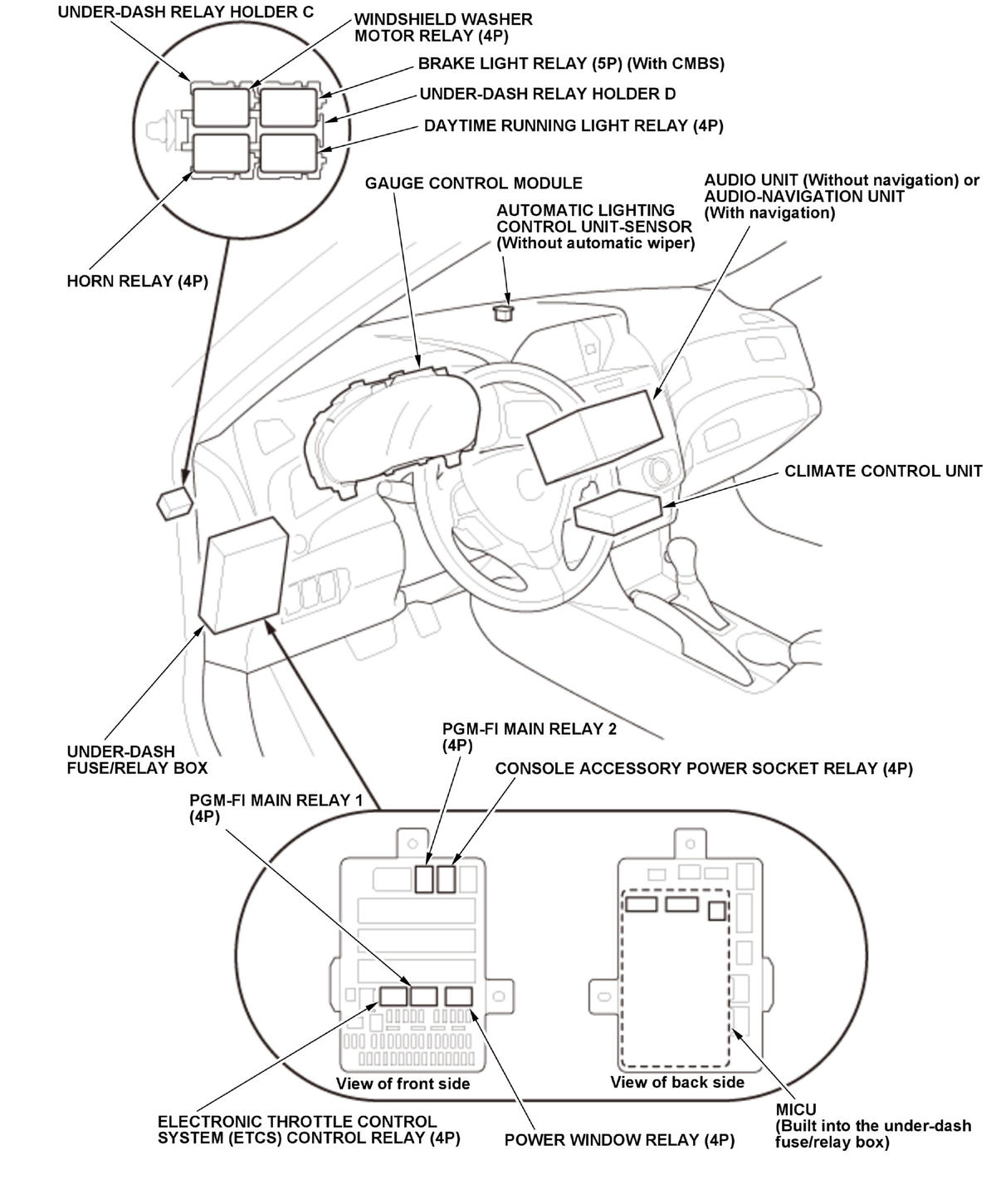

Dashboard 1/2

GHH464669Courtesy of HONDA, U.S.A., INC.

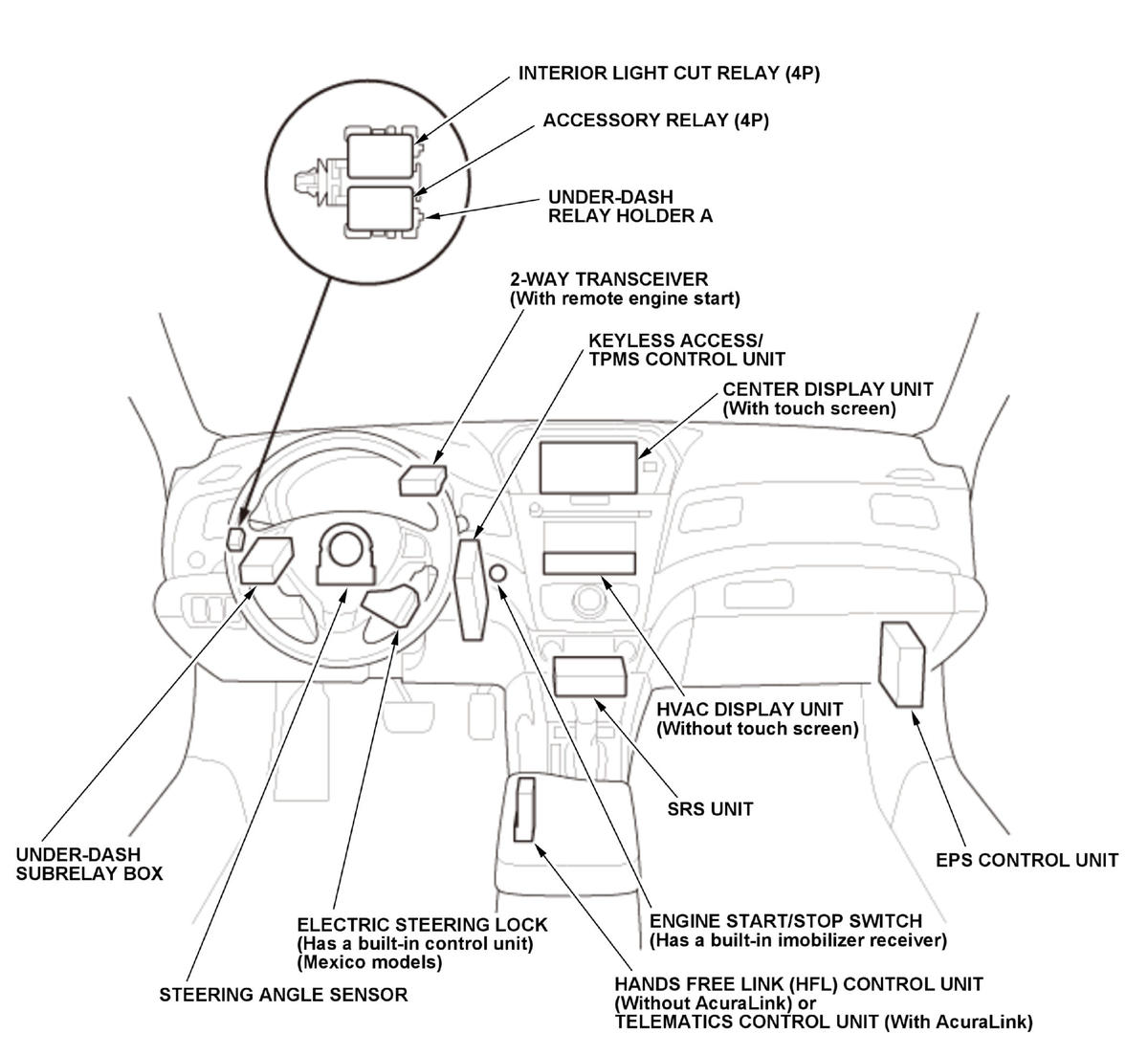

Dashboard 2/2

GHH464670Courtesy of HONDA, U.S.A., INC.
