TPMS Control Unit Connector for Inputs and Outputs (2013 2014 2015)

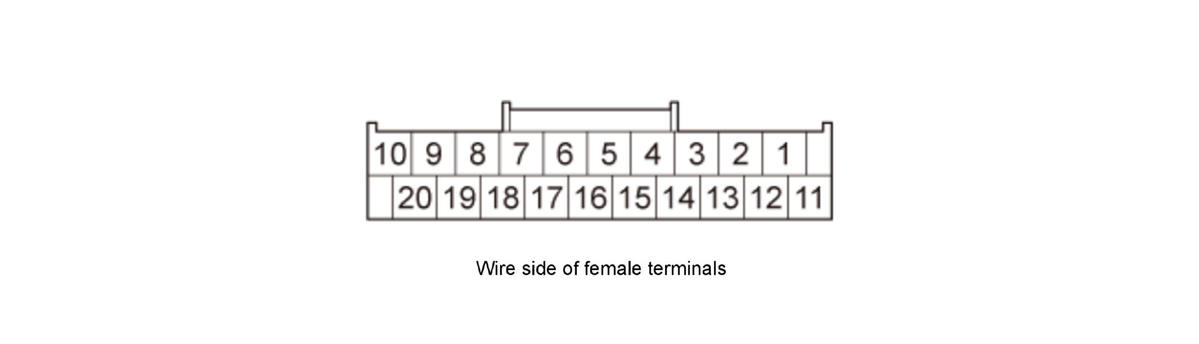

TPMS Control Unit Inputs and Outputs for 20P Connector (Connector Disconnected)
| Terminal number | Wire color | Terminal sign | Description | Signal |
|---|---|---|---|---|
| 1 | BLU | +B TPMS | Power source for the TPMS control unit | Battery voltage (about 12 V) at all times |
| 2 | Not used | Not used | --- | --- |
| 3 | BRN | IG1 METER | Power source for activating the system | With vehicle in ON mode: battery voltage (about 12 V) |
| With vehicle in OFF mode: less than 0.1 V | ||||
| 4 | LT BLU | K-LINE | Communications with the HDS | --- |
| 5 | Not used | Not used | --- | --- |
| 6 | Not used | Not used | ||
| 7 | Not used | Not used | ||
| 8 | BLK | GND | Ground for the TPMS control unit | Less than 0.1 V at all times |
| 9 | WHT | F CAN-H | F-CAN communication circuit | With vehicle in ON mode: pulses |
| 10 | Not used | Not used | --- | --- |
| 11 | Not used | Not used | ||
| 12 | Not used | Not used | ||
| 13 | Not used | Not used | ||
| 14 | Not used | Not used | ||
| 15 | Not used | Not used | ||
| 16 | Not used | Not used | ||
| 17 | Not used | Not used | ||
| 18 | Not used | Not used | ||
| 19 | Not used | Not used | ||
| 20 | RED | F CAN-L | F-CAN communication circuit | With vehicle in ON mode: pulses |
