Exploded View
Intake Manifold

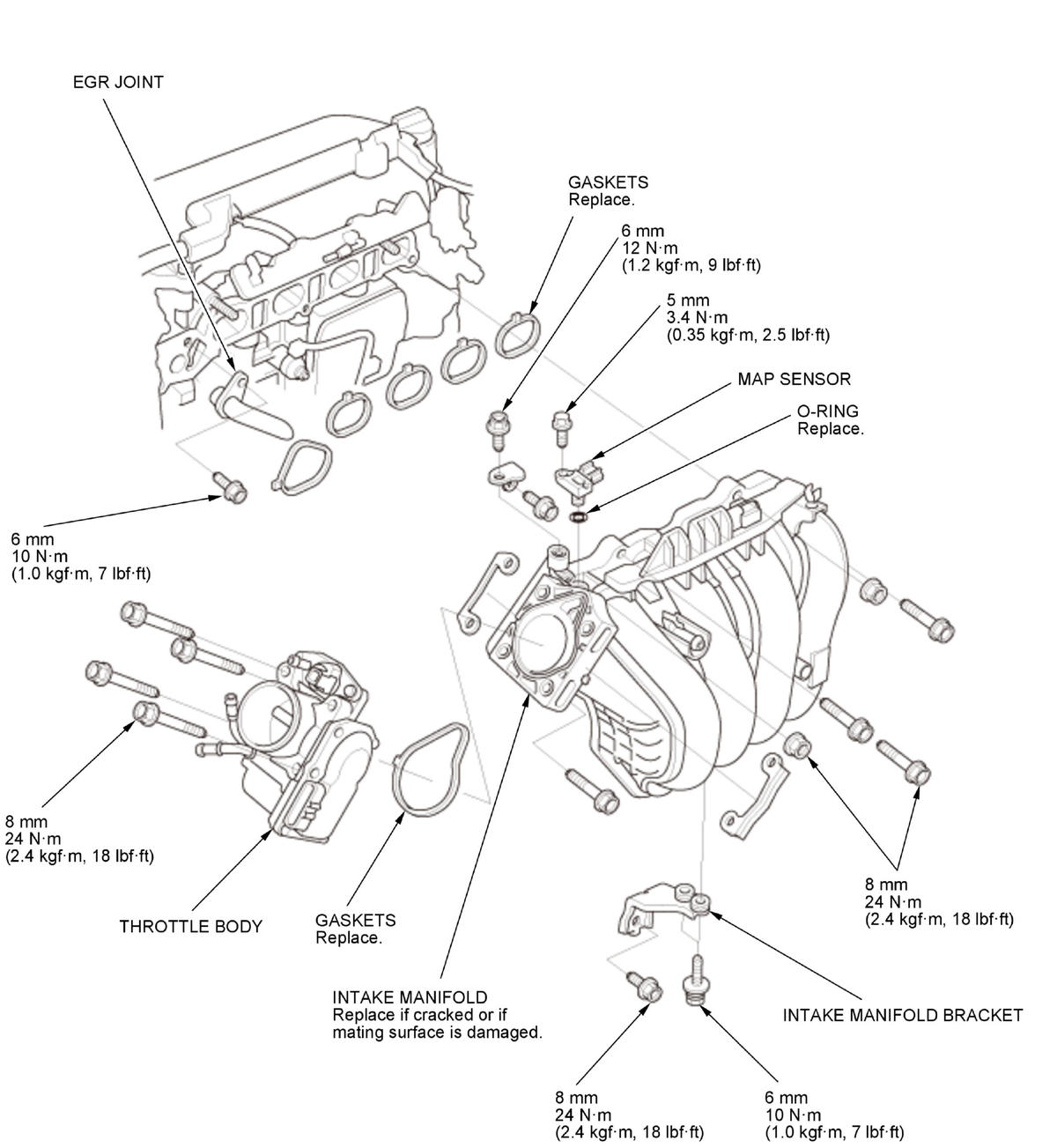

Fig 1: Intake Manifold With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
