Rocker Arm Assembly (R20A5) (2013 2014 2015): Installation

Rocker Arm Assembly - Reassemble

1. If the rocker arm assembly is disassembled, reassemble the rocker arm assembly .

Rocker Arm Assembly - Install

Courtesy of HONDA, U.S.A., INC.

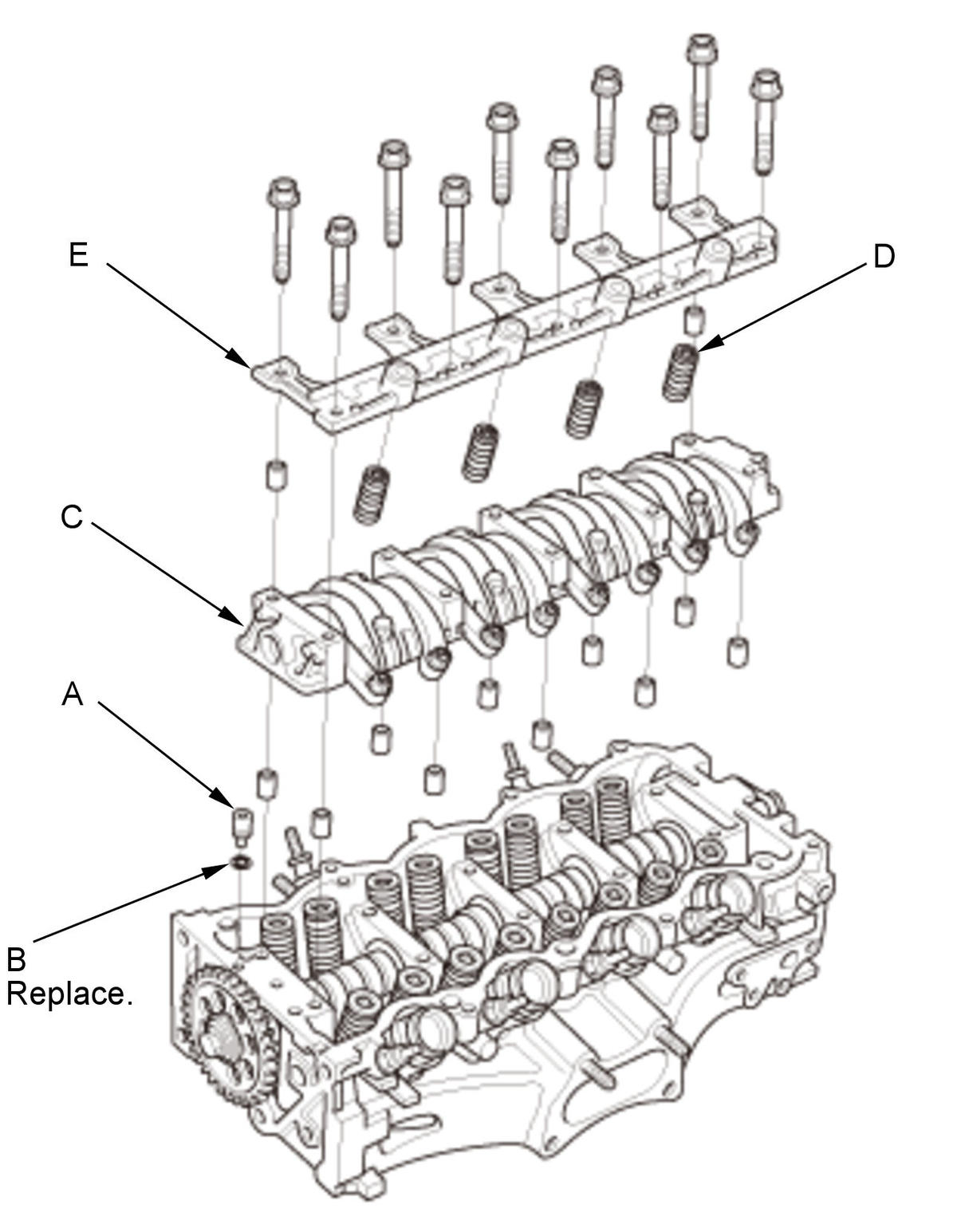

1. Install the oil control orifice (A) with a new O-ring (B).

2. Install the rocker arm assembly (C).

3. Install the lost motion assembles (D) and the lost motion holder (E).

NOTE:

Apply new engine oil to the lost motion assembly.

Courtesy of HONDA, U.S.A., INC.

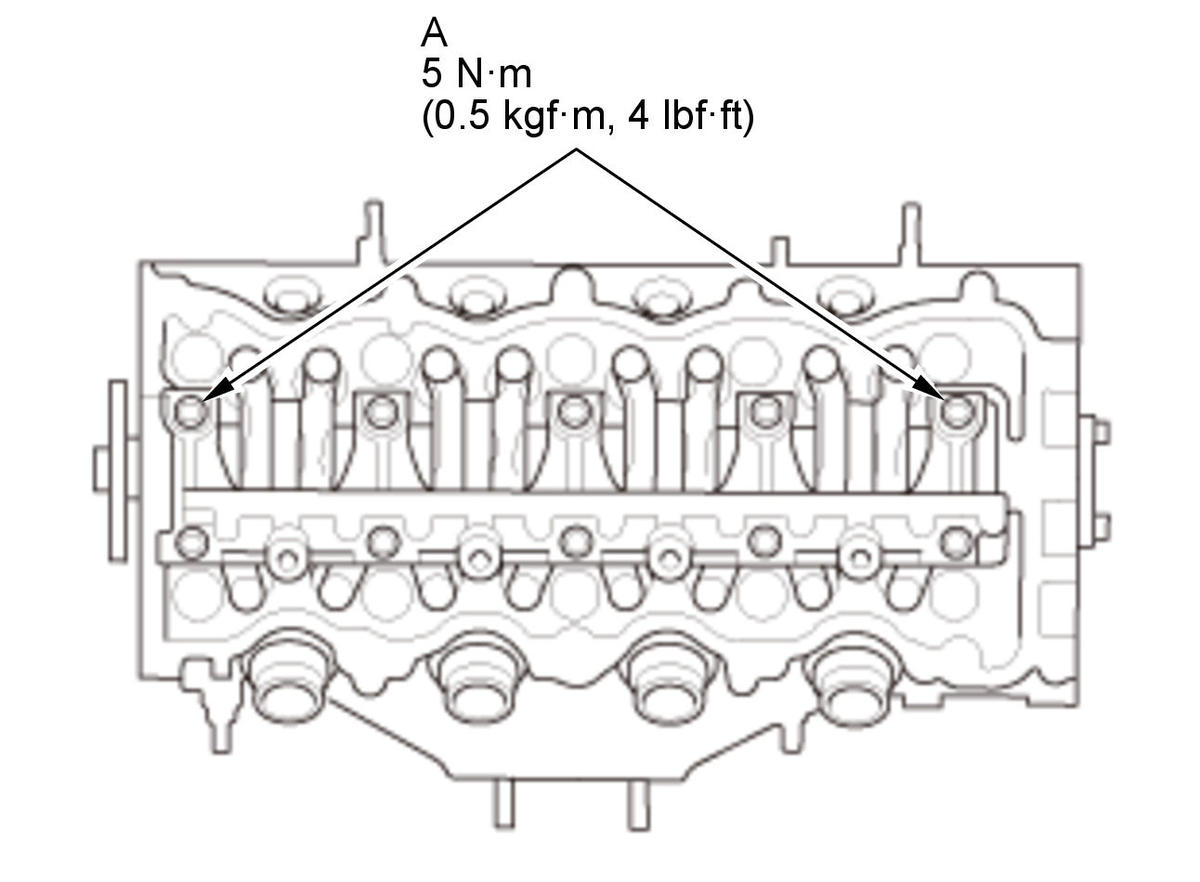

4. Tighten the two lost motion holder bolts (A).

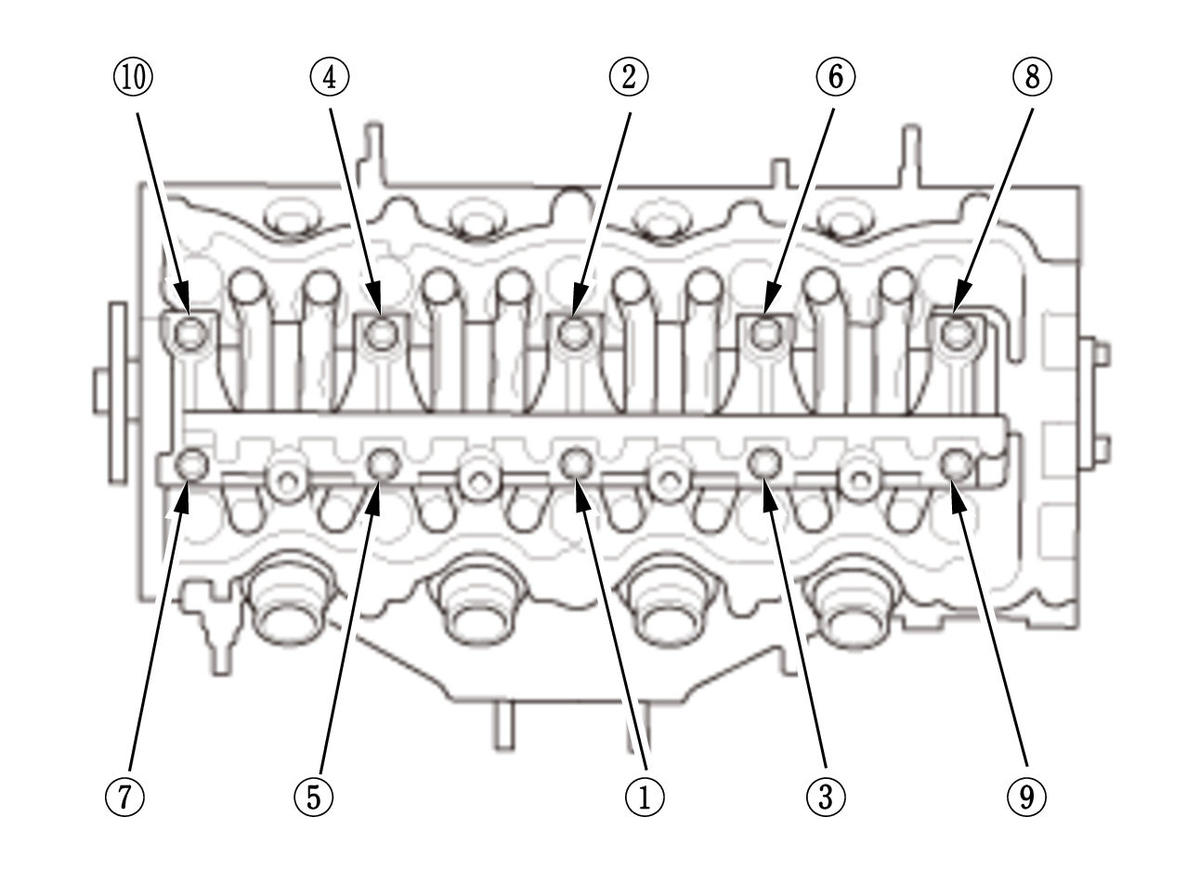

Fig 1: Lost Motion Holder Bolts Tightening Sequence

Courtesy of HONDA, U.S.A., INC.

5. Tighten each bolts two turns at a time in sequence.

15 N.m (1.5 kgf.m, 11 lbf.ft)

Specified Torque:
