Engine Start/Stop Switch: Test

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Engine Start/Stop Switch - Test
Switch Test

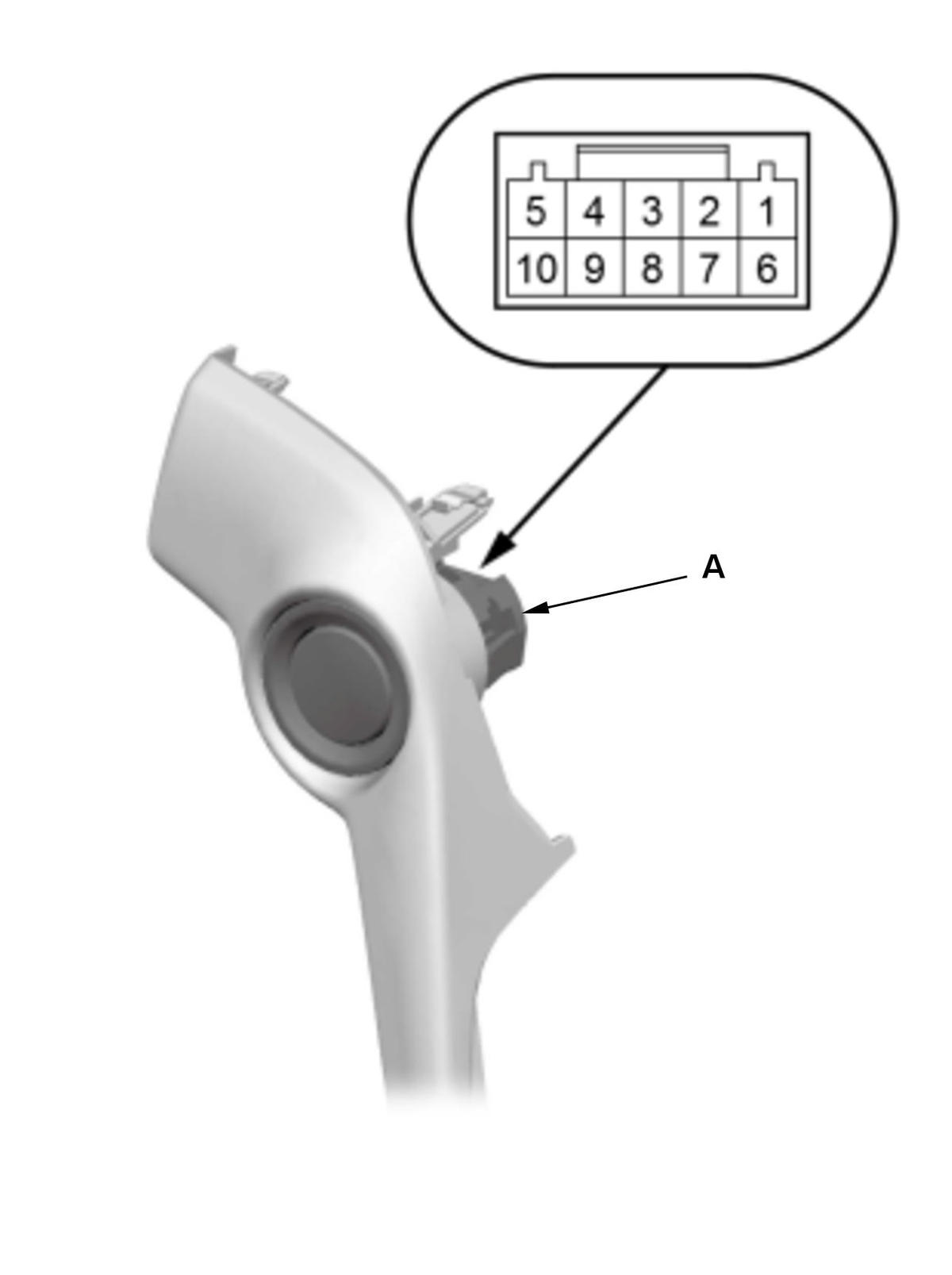

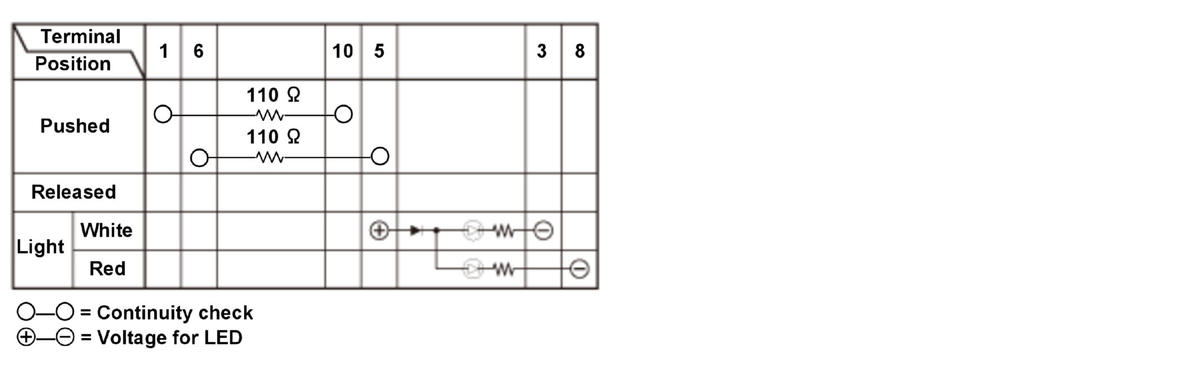

1. Check the engine start/stop switch (A) according to the table.
- NOTE: When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the engine start/stop switch.

LF Antenna Test

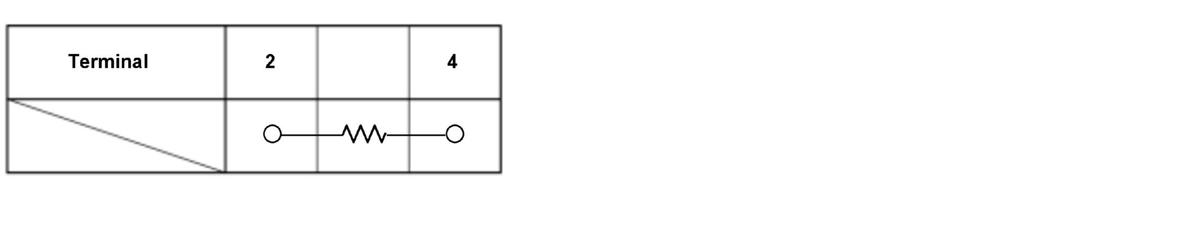

3. Check for continuity between the terminals according to the table. There should be continuity.

Courtesy of HONDA, U.S.A., INC.

4. If the continuity is not as specified, replace the engine start/stop switch.
