Trunk Lid Opener Main Switch: Test

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

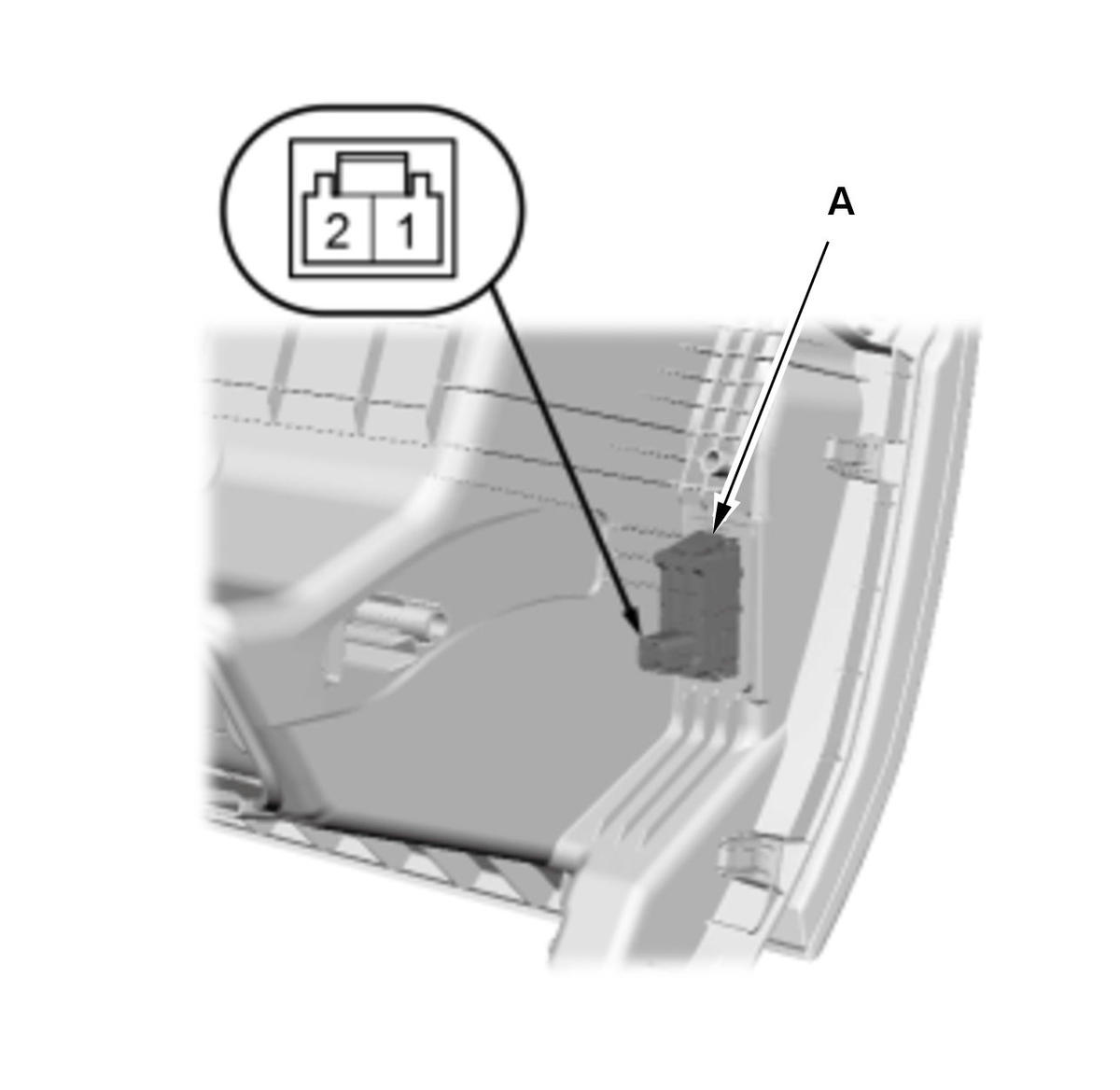

  1. Trunk Lid Opener Main Switch - Test
    GHH398200GHH398201Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH398200GHH398201Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

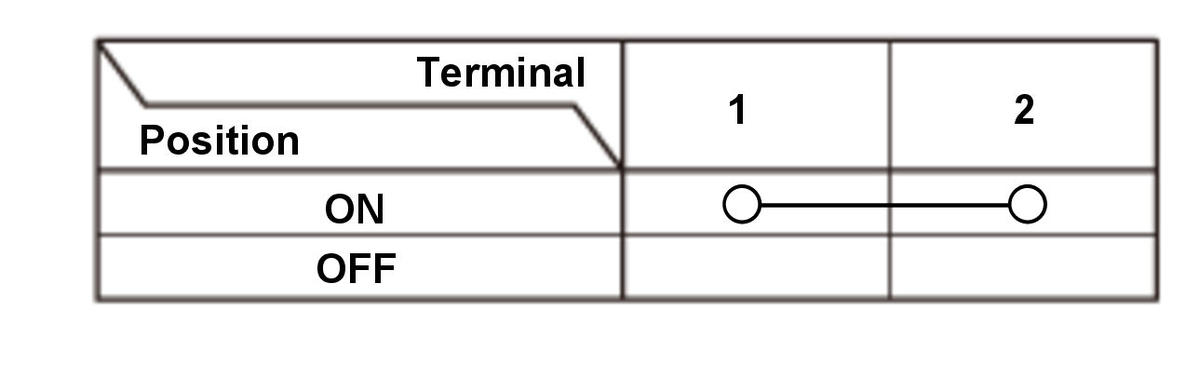

    		 1. Check for continuity between the terminals in each switch position according to the table.

    2. If the continuity is not as specified, replace the trunk lid opener main switch (A).
