Trunk Lid Outer Handle Switch: Test

WARNING: This page is about a different car, the 2022 Honda Accord, 2021 Honda Accord, 2020 Honda Accord, 2019 Honda Accord, and 2018 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.
  1. Trunk Lid Outer Handle Switch - Test
    GHH398202GHH398203Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH398202GHH398203Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    		 1. Check for continuity between the terminals in each switch position according to the table.

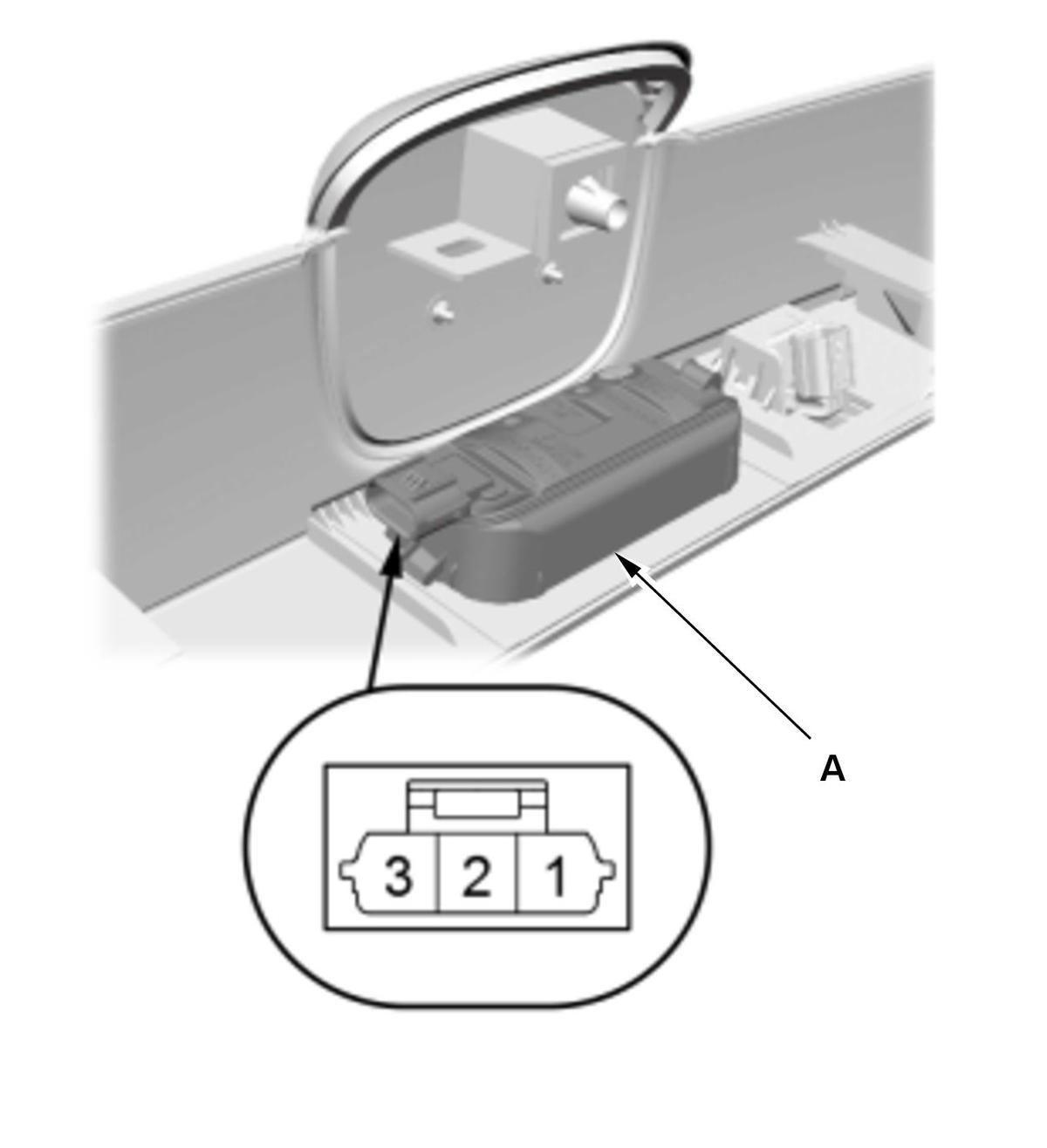

    2. If the continuity is not as specified, replace the license plate light

    (A).
