Keyless Access System Symptom Troubleshooting - The engine starts but stalls immediately
The engine starts but stalls immediately
- Keyless access system check 1
-1. Check the security indicator.
Does the security indicator blinking?
YES
Go to step 2.
NO
Go to step 5.
- Keyless access system check 2
-1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter KEYLESS ACCESS SYSTEM INFORMATION.
-2. Do the SYSTEM CHECK 1 and 2 with the HDS.
SYSTEM CHECK 1
SYSTEM CHECK 2
Are N-1 OK and N-2 OK indicated?
YES: Without electric steering lock
Go to step 6.
YES: With electric steering lock
Go to step 3.
NO
Troubleshoot the keyless access system according to the result of the SYSTEM CHECK 1 and 2.
- Keyless access system check 3
-1. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter DATA LIST.
-2. Check the parameter (s) below with the HDS.
Signal Current conditions Value Unit Electrical Steering Lock SWITCH B Is information value correct?
YES
Go to step 6.
NO
Go to step 4.
- Open wire check (ESL SW B line)
-1. Turn the vehicle to the OFF (LOCK) mode.
-2. Disconnect the following connectors.
Body control module connector C (66P)Electric steering lock 12P connector -3. Check for continuity between test points 1 and 2.

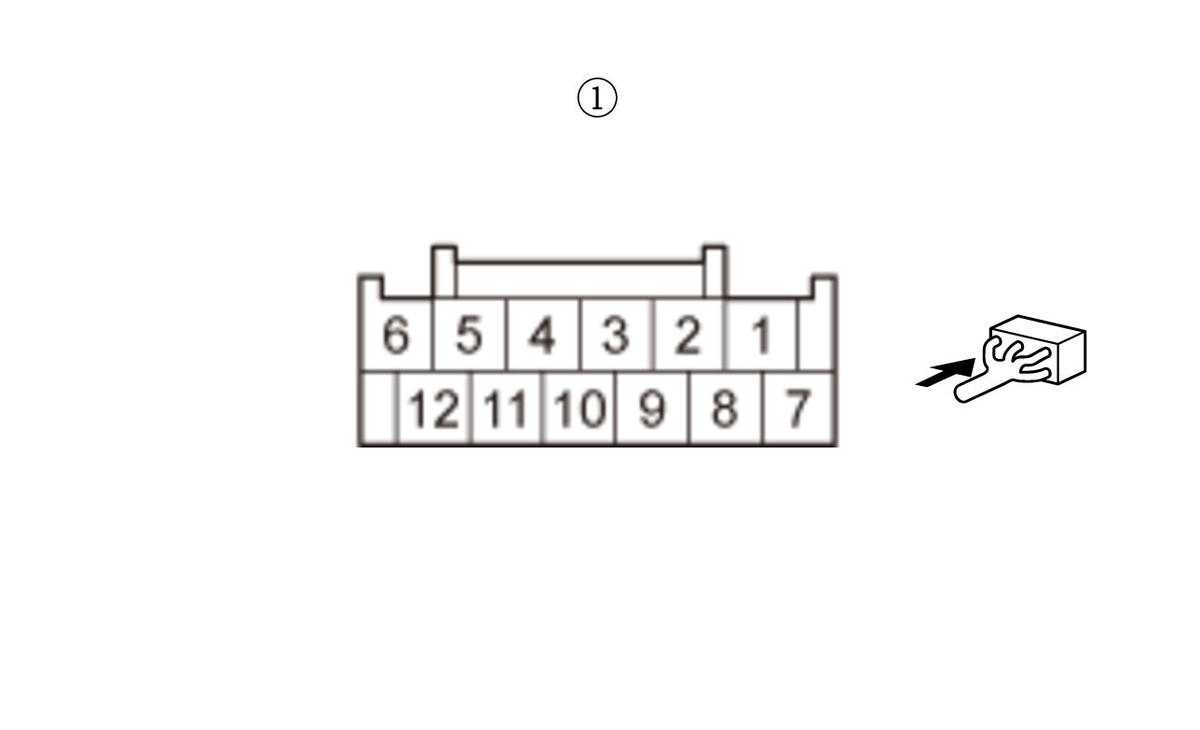

Test condition Vehicle OFF (LOCK) mode Body control module connector C (66P): disconnected Electric steering lock 12P connector: disconnected Test point 1 Electric steering lock 12P connector (female terminals) No. 8: Test point 2 Body control module connector C (66P) No. 55 Is there continuity?
YES
The ESL SW B wire is OK. Replace the body control module .
NO
Repair an open or high resistance in the wire.
- Gauge control module check
-1. Select GAUGES from the BODY ELECTRICAL SYSTEM SELECT menu with the HDS.
-2. Select FUNCTIONAL TESTS from the TEST MODE menu with the HDS, and enter SELF TEST.
Function Test
Does the security indicator blinking?
YES
Go to the PGM-FI system troubleshooting .
NO
- Keyless access system check 4
-1. With driver's power window open and all of the doors closed, turn the vehicle to the OFF (LOCK) mode.
-2. Remove all the keyless remotes from inside the vehicle. Hold them outside the open driver's window, at least 20 cm (7.9 in) away from the vehicle.
-3. Press the engine start/stop button. The MID should request the keyless remote to touch the engine start/stop switch. The LED on the engine start/stop switch will flash for up to 30 seconds.
-4. Touch the engine start/stop switch with the keyless remote. The buttons on the keyless remote should be facing you.
-5. Try to start the engine.
Does the engine start?
YES
Go to step 7.
NO
Go to step 8.
- PGM-FI DTC check
-1. Check for PGM-FI DTCs with the HDS.
DTC Description Confirmed DTC Pending DTC Are any DTCs indicated?
YES
Troubleshoot the PGM-FI DTCs.
NO
- Keyless access system check 5
-1. Select BACKUP CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter SYSTEM INFORMATION.
-2. Do the SYSTEM CHECK with the HDS.
System Check
Is N-1 OK indicated?
YES
Go to step 9.
NO
Troubleshoot the backup control unit according to the result of the SYSTEM CHECK.
- Keyless access system check 6
-1. Check the parameter (s) below with the HDS.
Signal Current conditions Value Unit Electrical Steering Lock SWITCH B Is information value correct?
YES
Troubleshoot the PGM-FI symptom troubleshooting .
NO
Go to step 10.
- Body control module check (substitution)
-1. Substitute a known-good body control module .
-2. Select REGISTRATION from the ONE-PUSH START system select menu with the HDS, then select REPLACE KEYLESS ACCESS CONTROL UNIT.
-3. Turn the vehicle to the ON mode.
Does the system change to ON mode?
YES
Replace the original body control module .
NO
