Keyless Buzzer Circuit Troubleshooting (2016)

Open wire check (PGND line)

-1. Turn the vehicle to the OFF (LOCK) mode.

- 2. Disconnect the following connector.

- 3. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode Keyless/power tailgate outside buzzer 2P connector: disconnected
Test circuit	PGND

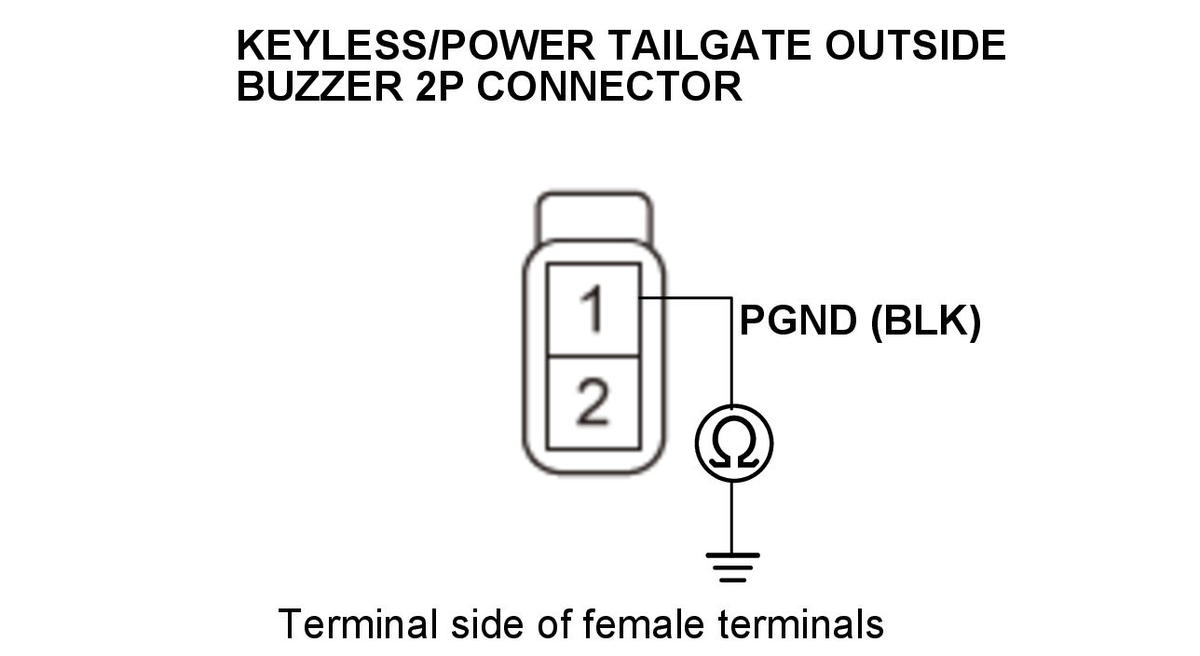

Test point 1	Keyless/power tailgate outside buzzer 2P connector No. 1 (BLK)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The PGND wire is OK. Go to step 2.

Repair an open or high resistance in the ground wire or poor ground (G603).

Open wire check (EXT BUZ line)

-1. Disconnect the following connector.

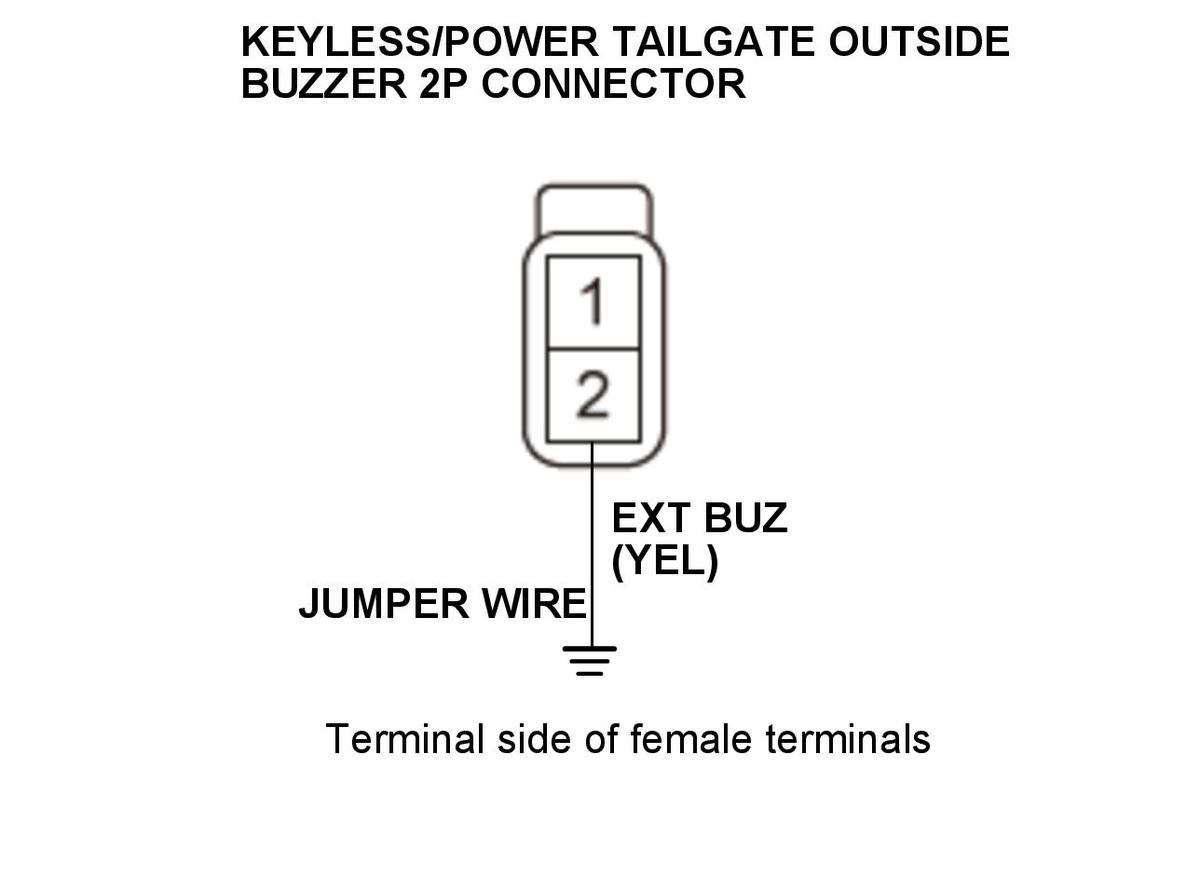

- 2. Connect terminals A and B with a jumper wire.

Terminal A	Keyless/power tailgate outside buzzer 2P connector No. 2 (YEL)
Terminal B	Body ground

Courtesy of HONDA, U.S.A., INC.

- 3. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode Keyless/power tailgate outside buzzer 2P connector: disconnected Keyless/power tailgate outside buzzer 2P connector: jumped to body groundRear fuse/relay box connector A (49P): disconnected
Test circuit	EXT BUZ

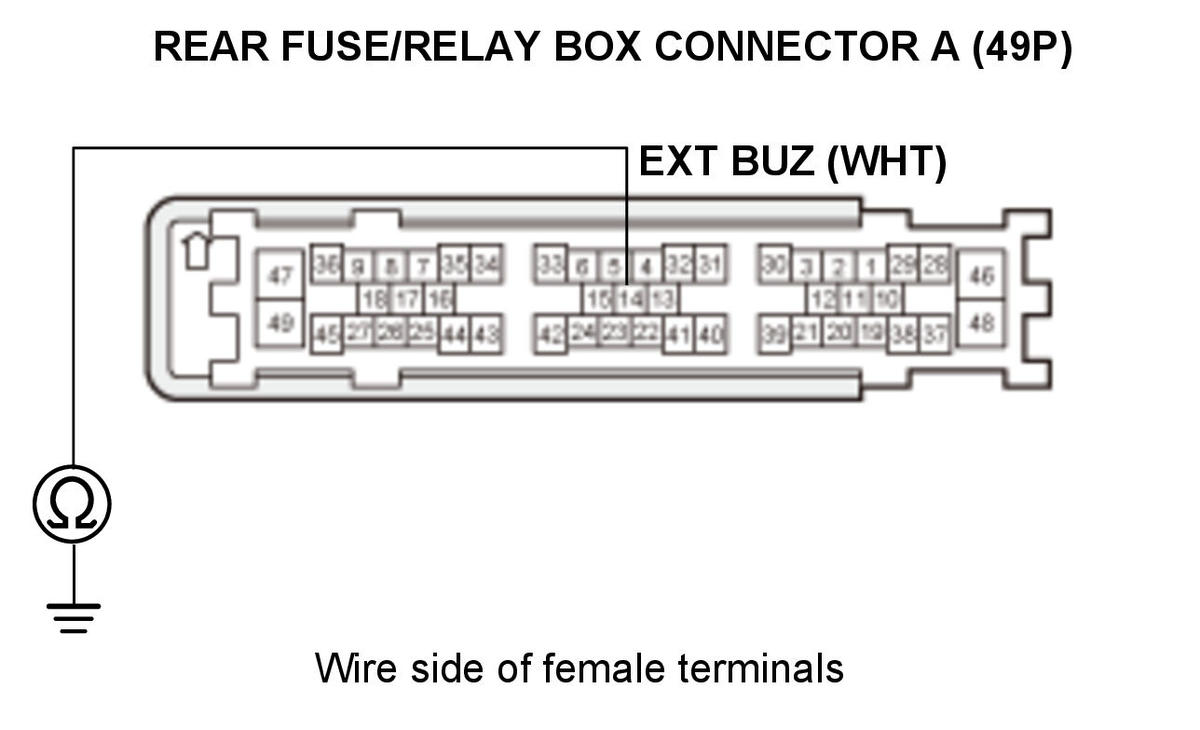

Test point 1	Rear fuse/relay box connector A (49P) No. 14 (WHT)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The EXT BUZ wire is not open. Go to step 3.

Repair an open or high resistance in the wire.

Shorted wire check (EXT BUZ line)

-1. Remove the jumper wire from the keyless buzzer 2P connector.

- 2. Check for continuity between test points 1 and 2.

Test condition

Vehicle OFF (LOCK) mode Keyless/power tailgate outside buzzer 2P connector: disconnected Rear fuse/relay box connector A (49P): disconnected

Test circuit	EXT BUZ
Test point 1	Rear fuse/relay box connector A (49P) No. 14 (WHT)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Repair a short to ground in the wire.

The EXT BUZ wire is OK. Go to step 4.
