Door Lock Knob Switch Test: Test

Front Door

1. Front Door Panel - Remove
2. Front Door Lock Knob Switch - Test

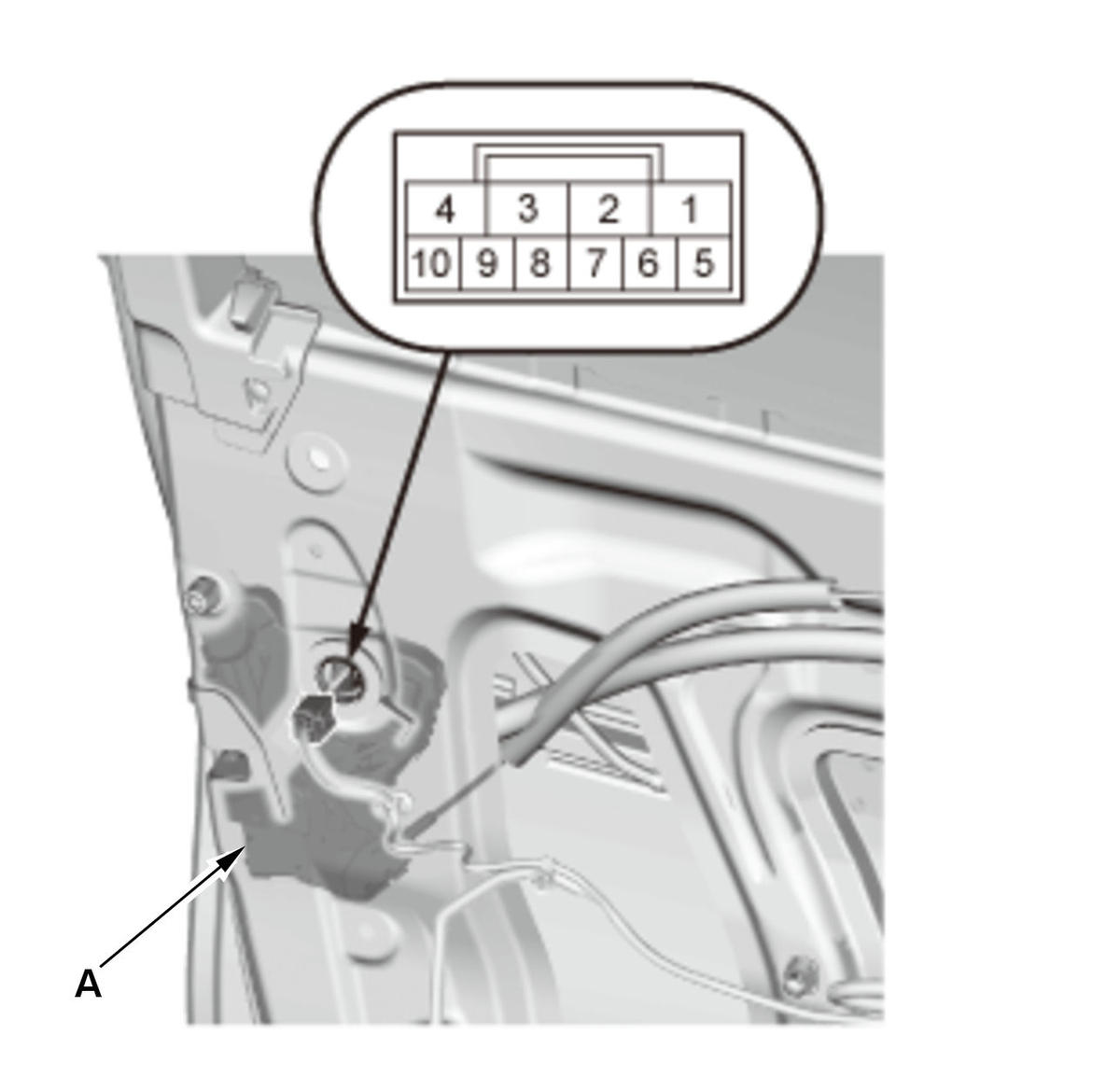

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Driver's Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Front Passenger's Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

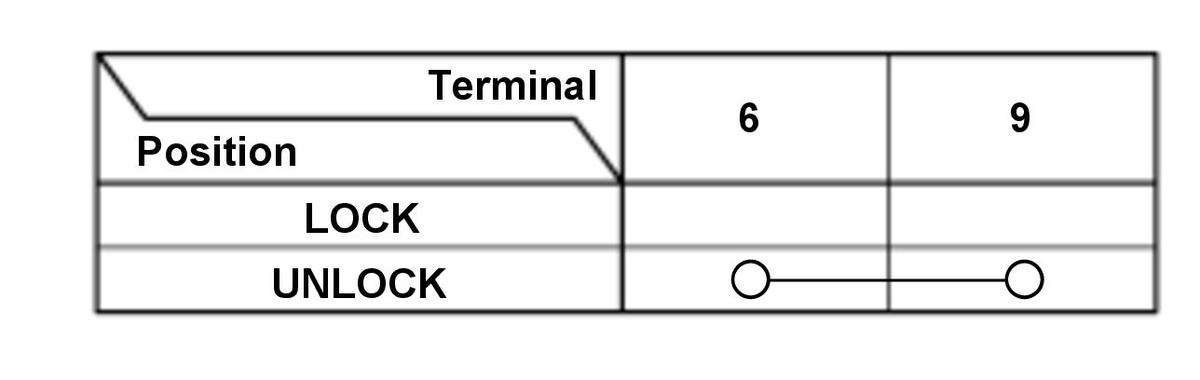

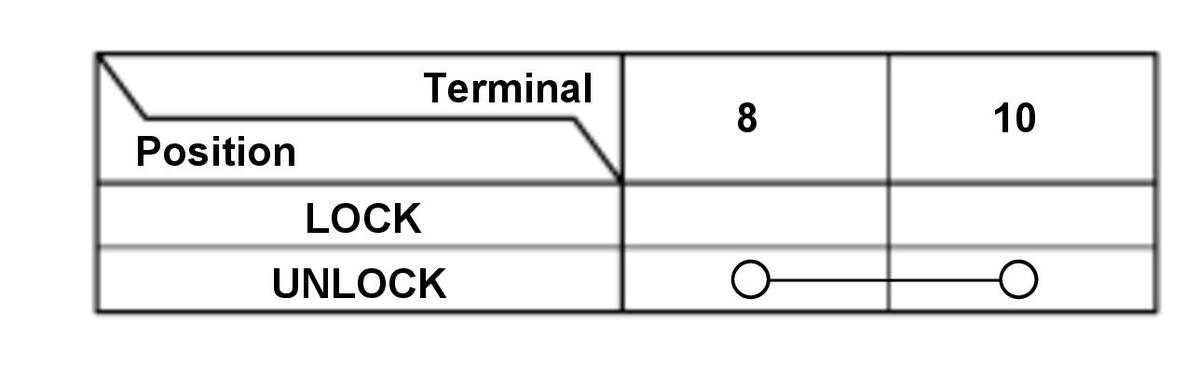

   1. Disconnect the front door latch connector. 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the front door lock knob switch is faulty; replace the front door latch (A).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Rear Door

4. Rear Door Panel - Remove
5. Rear Door Lock Knob Switch - Test

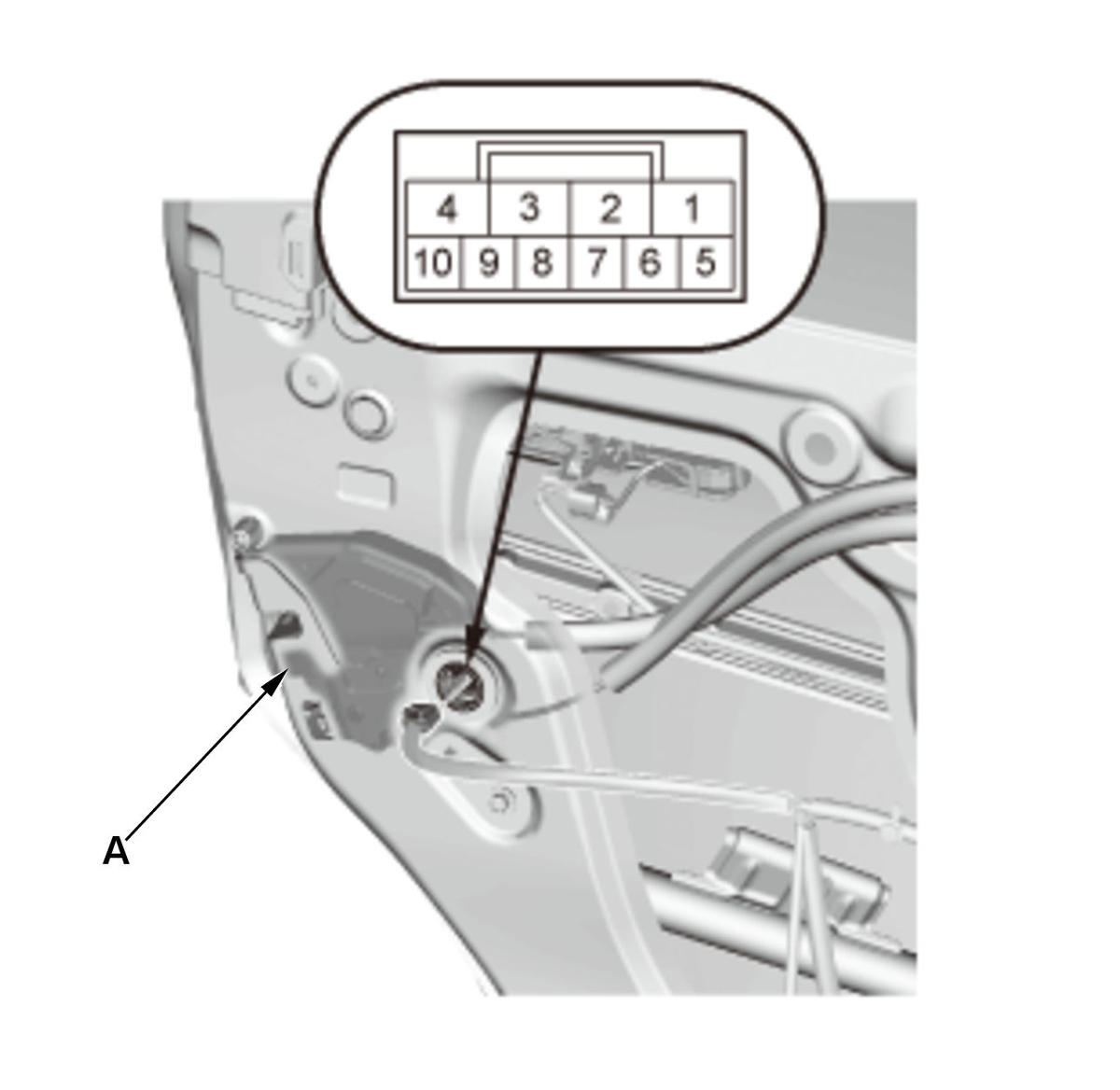

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Left and Right Rear Door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

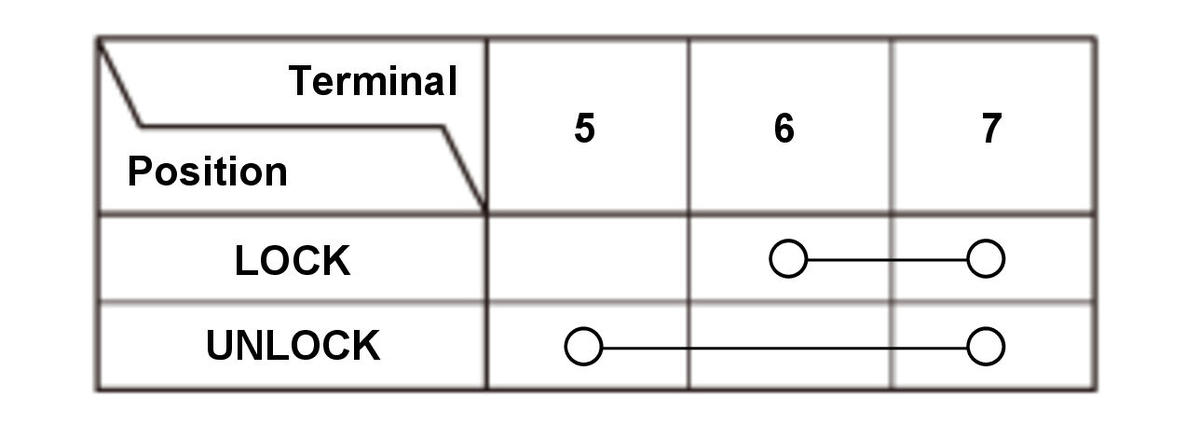

   1. Disconnect the rear door latch connector. 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch (A).

6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
