BSI Radar Unit Connector for Inputs and Outputs (2016)

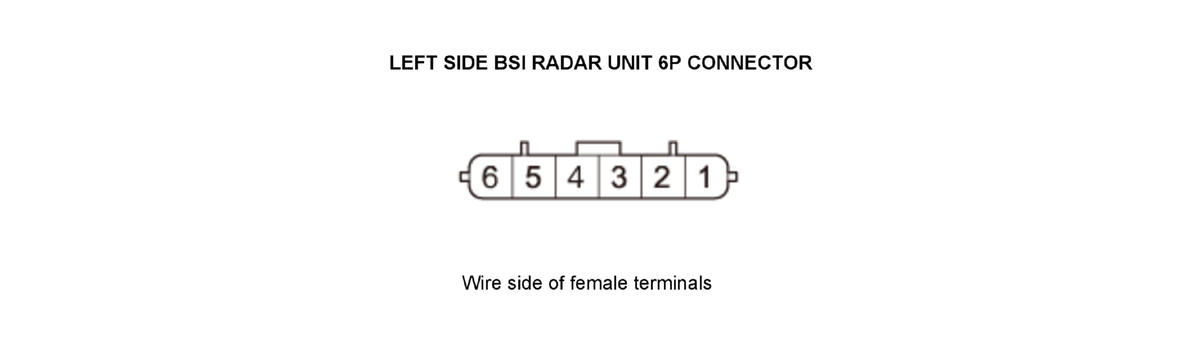

Left Side BSI Radar Unit 6P Connector Inputs and Outputs
| Terminal number | Wire color | Terminal name | Description | Signal |
| 1 | LT GRN | IG1 ECU RR (IG1 METER (DC/DC))* |
Detects ignition signal | Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V |
| 2 | GRY | DR BSI IND+ | Drives the left BSI alert indicator | - - - |
| 3 | PNK | B-CAN_H | B-CAN communication (high) circuit | - - - |
| 4 | Not used | Not used | - - - | - - - |
| 5 | ORN | B-CAN_L | B-CAN communication (low) circuit | - - - |
| 6 | BLK | GND | Ground circuit for the BSI radar unit | Less than 0.2 V at all times |
*: With auto idle stop system

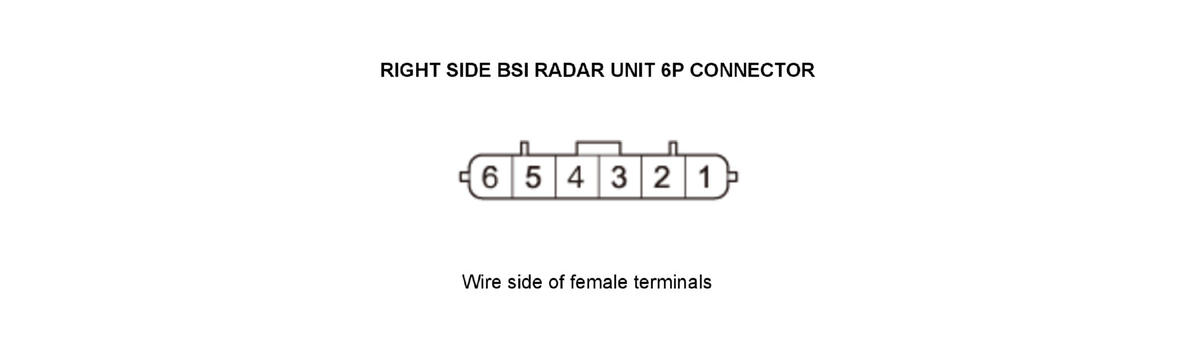

Right Side BSI Radar Unit 6P Connector Inputs and Outputs
| Terminal number | Wire color | Terminal name | Description | Signal |
| 1 | LT GRN | IG1 ECU RR (IG1 METER (DC/DC))* |
Detects ignition signal | Vehicle in ON mode: Battery voltage Vehicle in OFF mode: About 0 V |
| 2 | BLU | AS BSI IND+ | Drives the right BSI alert indicator | - - - |
| 3 | PNK | B-CAN_H | B-CAN communication (high) circuit | - - - |
| 4 | BLK | GND | Ground circuit for the BSI radar unit | Less than 0.2 V at all times |
| 5 | ORN | B-CAN_L | B-CAN communication (low) circuit | - - - |
| 6 | BLK | GND | Ground circuit for the BSI radar unit | Less than 0.2 V at all times |
*: With auto idle stop system
