ANC/Active Sound Control Unit Connector for Inputs and Outputs (2016)

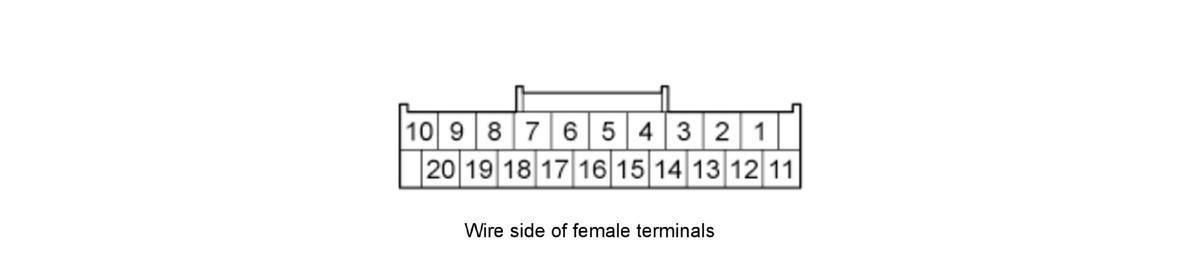

ANC/ACTIVE SOUND CONTROL UNIT 20P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | BLK | SGND | Ground for ANC/active sound control unit (G504) |
| 2 | Not used | Not used | - - - |
| 3 | PNK | RADIO SW(B) | Inputs signal for active noise cancellation unit switching ON/OFF |
| 4 | BLK* 1 | F-CAN B_H* 1 | F-CAN bus communication signal |
| WHT* 2 | F-CAN A_H* 2 | ||
| 5 | GRN* 1 | F-CAN B_L* 1 | F-CAN bus communication signal |
| BRN* 2 | F-CAN A_L* 2 | ||
| 6 | GRY | R MIC- | Shield for terminal No. 17 |
| 7 | BLK | F MIC- | Shield for terminal No. 18 |
| 8 | Not used | Not used | - - - |
| 9 | GRY | ANC R- | Outputs noise cancelling signal to stereo amplifier |
*1: With CAN gateway*2: Without CAN gateway*3: With auto idle stop system*4: Without auto idle stop system
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 10 | GRN | ANC F- | Outputs noise cancelling signal to stereo amplifier |
| 11 | YEL* 3 | +B RADIO (DC/DC)* 3 | Continuous power source |
| ORN* 4 | +B RADIO* 4 | ||
| 12 | GRN | IG1 METER (DC/DC)* 3IG1 METER* 4 | IG1 power source |
| 13 | LT GRN | ANC CK2 | Detects ANC test signal |
| 14 | LT BLU | K-LINE | Detects scan tool signal (serial data) |
| 15 | Not used | Not used | - - - |
| 16 | Not used | Not used | - - - |
| 17 | WHT | R MIC+ | Inputs rear ANC/active sound control microphone signal positive |
| 18 | BLU | F MIC+ | Inputs front ANC/active sound control microphone signal positive |
| 19 | PUR | ANC R+ | Outputs noise cancelling signal to stereo amplifier |
| 20 | RED | ANC F+ | Outputs noise cancelling signal to stereo amplifier |
*1: With CAN gateway*2: Without CAN gateway*3: With auto idle stop system*4: Without auto idle stop system
