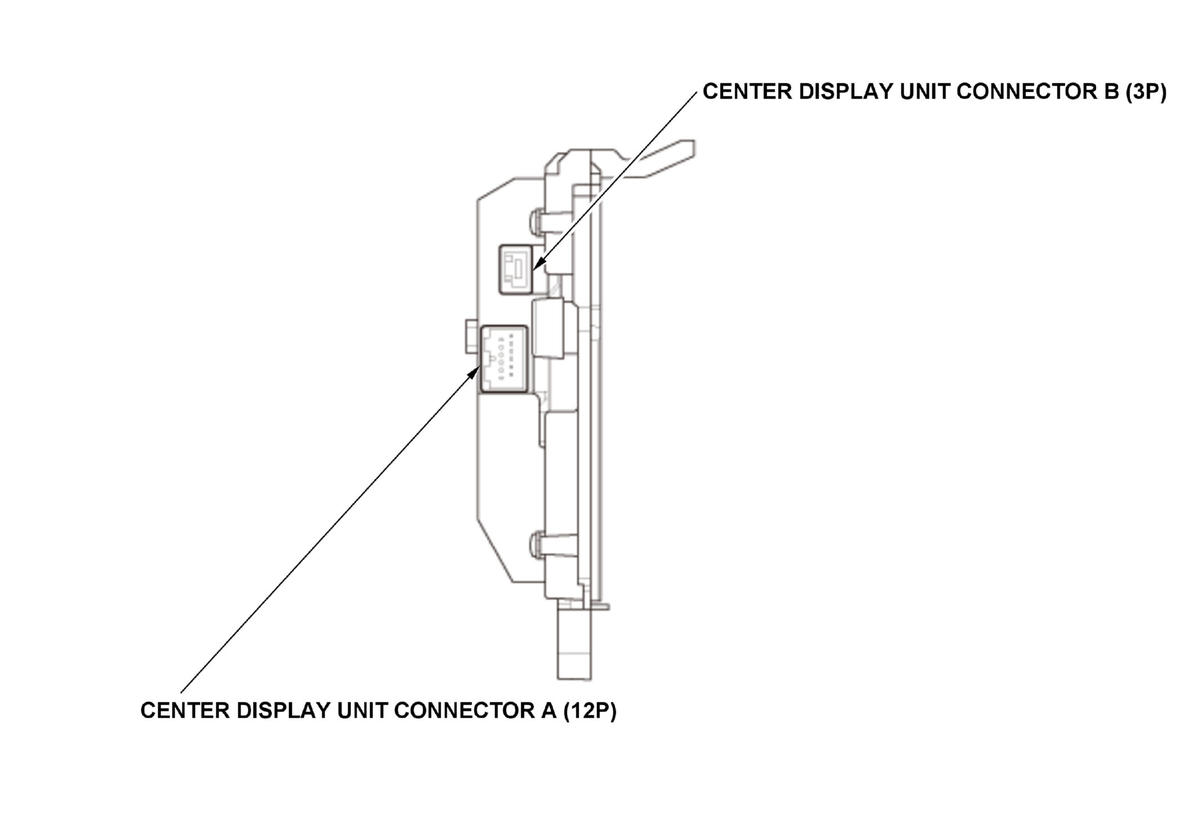

Center Display Unit Connector for Inputs and Outputs (Without Navigation) (2014 2015)
 Courtesy of HONDA, U.S.A., INC.
|

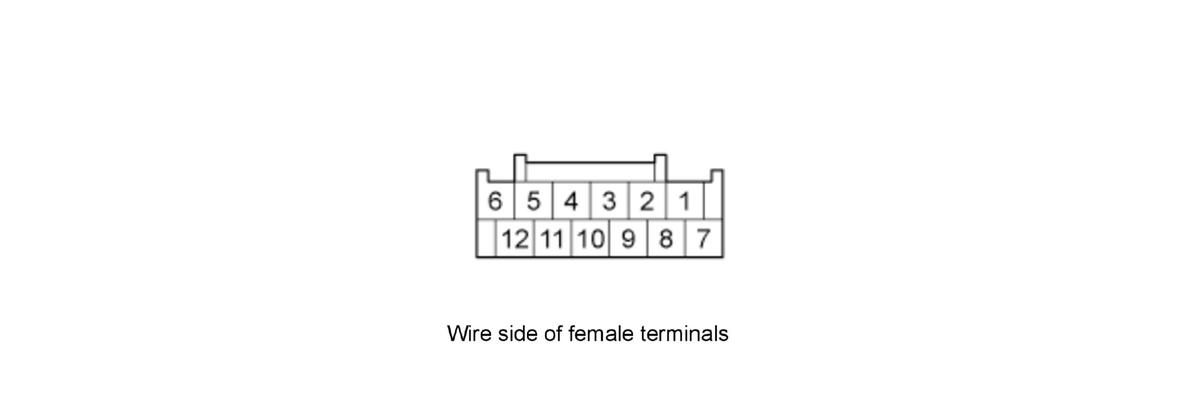

CENTER DISPLAY UNIT CONNECTOR A (12P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| A1 |
BRN |
GA BUS + |
GA-Net bus communication signal |
| A2 |
YEL |
GA BUS - |
GA-Net bus communication signal |
| A3 |
Not used |
Not used |
- - - |
| A4 |
Not used |
Not used |
- - - |
| A5 |
PUR |
B ACC |
Power source for accessories |
| A6 |
ORN |
+B RADIO |
Continuous power source |
| A7 |
GRY |
GA BUS SH |
Shield for terminals No. 1 and No. 2 |
| Cavity |
Wire Color |
Terminal Name |
Description |
| A8 |
Not used |
Not used |
- - - |
| A9 |
GRY |
ILLUMI+ |
Detects parking light on signal |
| A10 |
BRN |
SCTY (1) |
Security signal from MICU |
| A11 |
GRN |
SCTY (2) |
Security signal to audio unit |
| A12 |
BLK |
SGND |
Ground for center display unit (G504) |

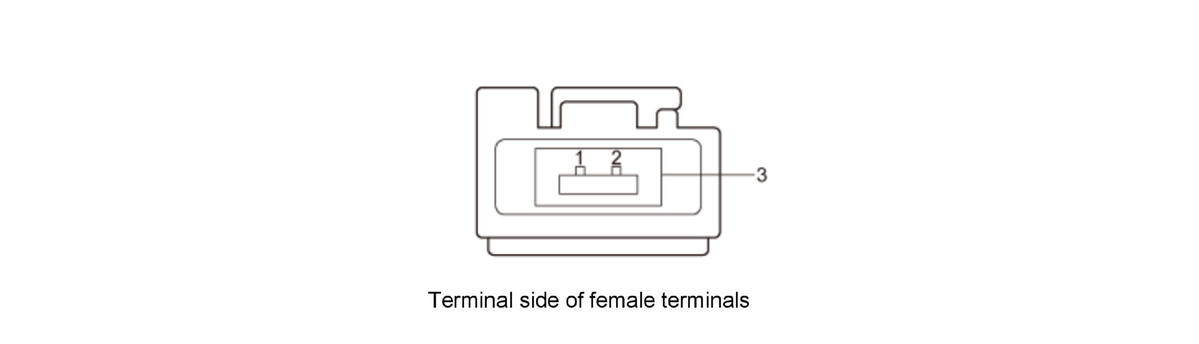

CENTER DISPLAY UNIT CONNECTOR B (3P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| B1 |
- - - |
GVIF- |
Inputs video signal |
| B2 |
- - - |
GVIF+ |
Inputs video signal |
| B3 |
- - - |
GVIF SH |
Shield for terminals No. 1 and No. 2 |
