Interface Dial Connector for Inputs and Outputs (Without Navigation) (2016)

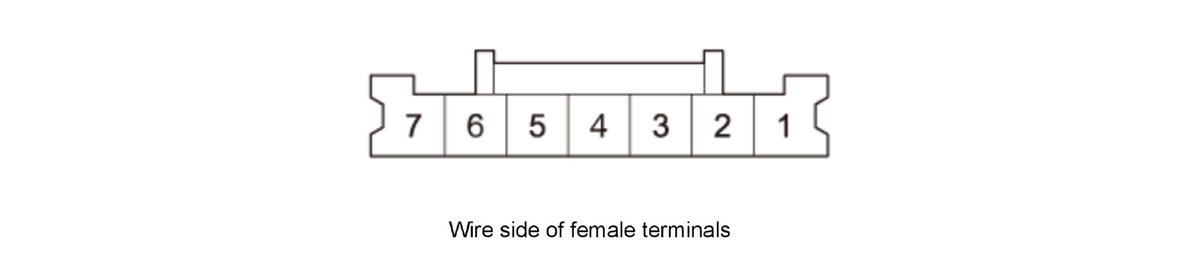

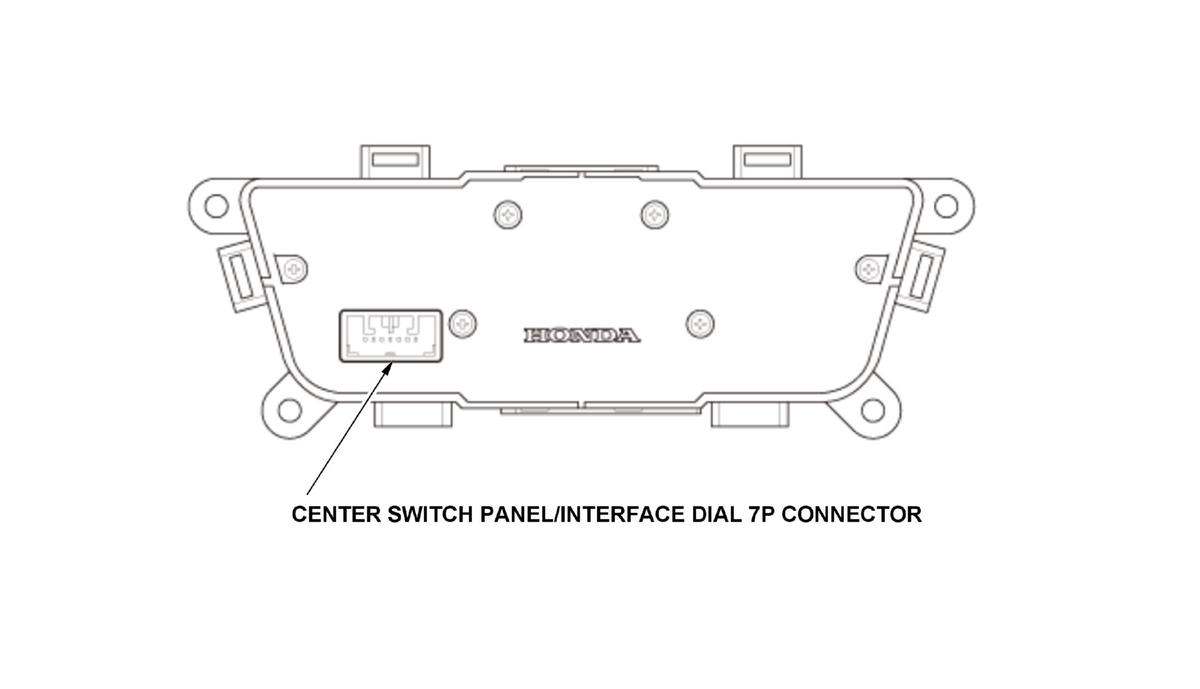

CENTER SWITCH PANEL/INTERFACE DIAL 7P CONNECTOR
| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | PUR | B ACC | Power source for accessories |
| 2 | GRY | ILLUMI+ | Detects parking light on signal |
| 3 | Not used | Not used | - - - |
| 4 | BLU | JOG | Outputs center switch panel/interface dial operation signal |
| 5 | GRY | JOG SH | Shield for terminal No. 4 |
| 6 | BLK | SGND | Ground for center switch panel/interface dial (G504) |
| 7 | RED | ILLUMI-(LED) | Detects illumination control signal |
