USB Adapter Connector for Inputs and Outputs

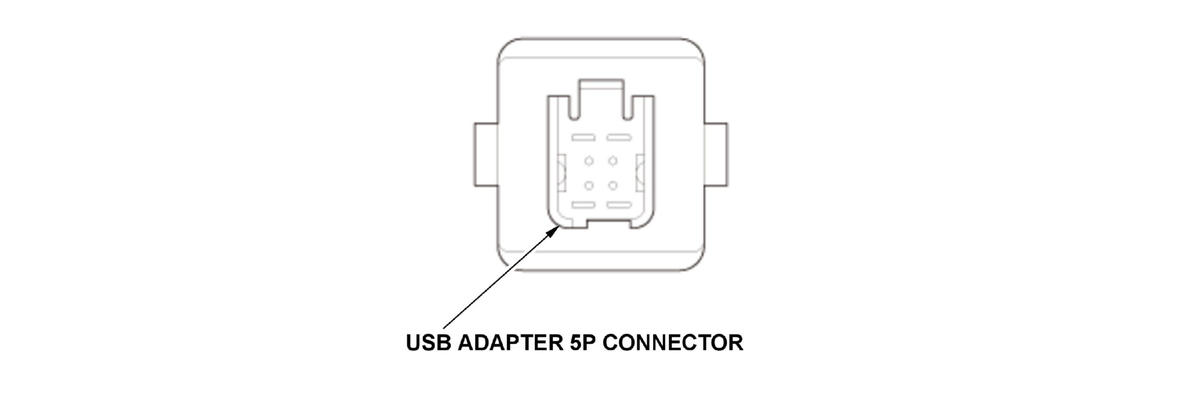

USB ADAPTER 5P CONNECTOR

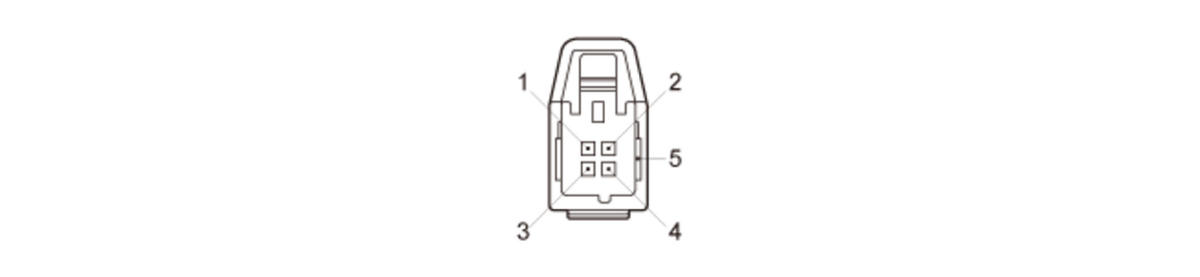

| Cavity | Wire Color | Terminal Name | Description |
|---|---|---|---|
| 1 | - - - | USB GND | Ground for communication signal |
| 2 | - - - | USB VBUS | Inputs power source for USB device |
| 3 | - - - | USB DATA+ | Communication signal |
| 4 | - - - | USB DATA- | Communication signal |
| 5 | - - - | USB SH | Shield for terminals No. 1, No. 2, No. 3, and No. 4 |
