USB CHARGER UNIT A 4P CONNECTOR
USB CHARGER UNIT B 4P CONNECTOR
USB CHARGER UNIT C 4P CONNECTOR
USB CHARGER UNIT D 4P CONNECTOR

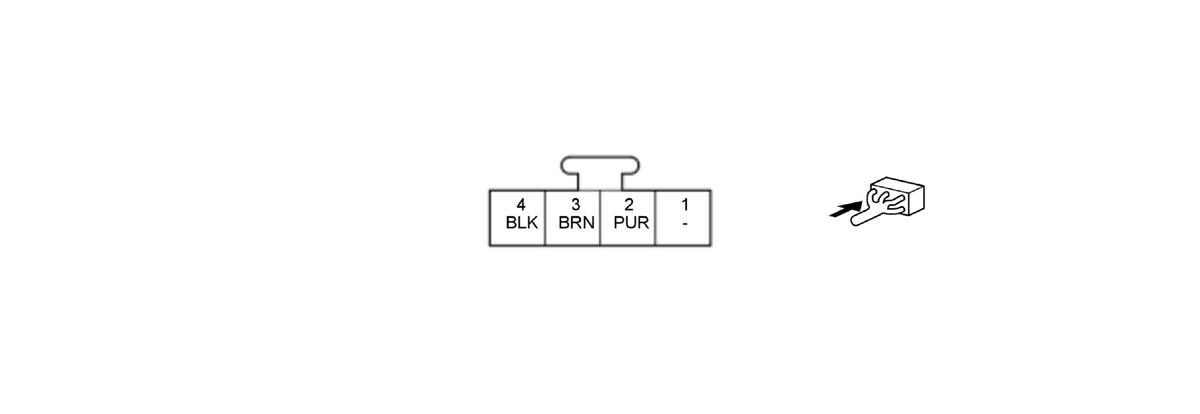

USB CHARGER UNIT A 4P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
1	- - -	Not used
2	ACC (DC/DC)* 1 B ACC* 2	Power source for accessories
3	+B USB CHARGE (15A)	Continuous power source
4	GND	Ground for USB charger unit

*1: With auto idle stop system*2: Without auto idle stop system

USB CHARGER UNIT B 4P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
1	- - -	Not used
2	ACC (DC/DC)* 1B ACC* 2	Power source for accessories
3	+B USB CHARGE (15A)	Continuous power source
4	GND	Ground for USB charger unit

*1: With auto idle stop system*2: Without auto idle stop system

USB CHARGER UNIT C 4P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
1	- - -	Not used
2	ACC (DC/DC)* 1 B ACC* 2	Power source for accessories
3	+B USB CHARGE (15A)	Continuous power source
4	GND	Ground for USB charger unit

*1: With auto idle stop system*2: Without auto idle stop system

USB CHARGER UNIT D 4P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
1	- - -	Not used
2	ACC (DC/DC)* 1B ACC* 2	Power source for accessories
3	+B USB CHARGE (15A)	Continuous power source
4	GND	Ground for USB charger unit

*1: With auto idle stop system*2: Without auto idle stop system
