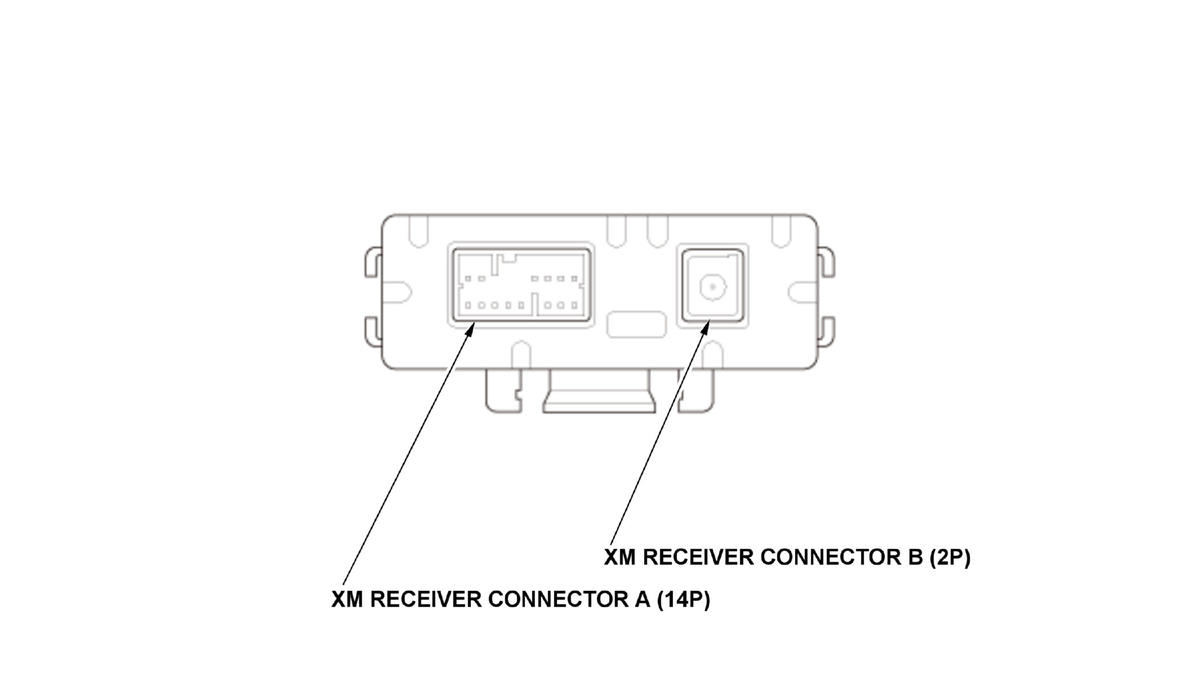

XM Receiver Connector for Inputs and Outputs (2016)
 Courtesy of HONDA, U.S.A., INC.
|

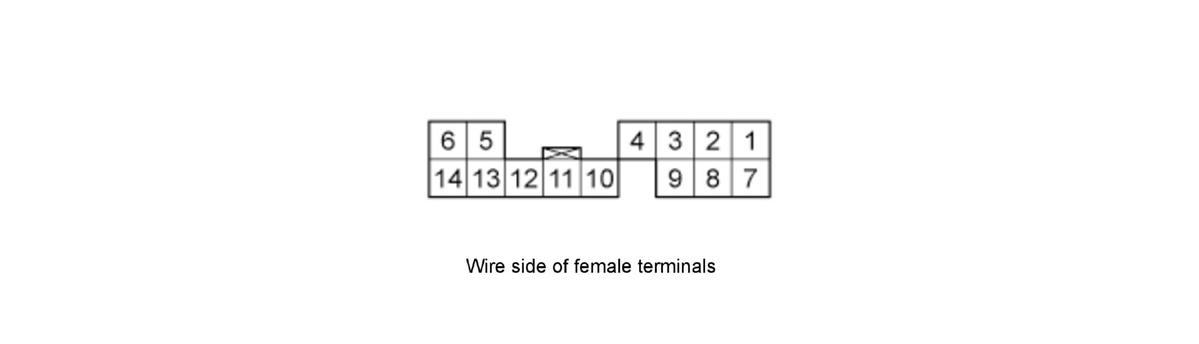

XM RECEIVER CONNECTOR A (14P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| A1 |
GRN |
GA AUDIO L+ |
Outputs sound signal |
| A2 |
RED |
GA AUDIO R+ |
Outputs sound signal |
| A3 |
Not used |
Not used |
- - - |
| A4 |
Not used |
Not used |
- - - |
| A5 |
ORN |
GA SYS ON |
Inputs signal for XM receiver switching ON/OFF |
| A6 |
WHT |
GA +B |
Continuous power source from audio-navigation unit or audio unit |
| A7 |
WHT |
GA AUDIO L- |
Outputs sound signal |
| A8 |
BLK |
GA AUDIO R- |
Outputs sound signal |
| A9 |
Not used |
Not used |
- - - |
| A10 |
PUR |
GND |
Ground for XM receiver |
| A11 |
YEL |
GA BUS - |
GA-Net bus communication signal |
| A12 |
BRN |
GA BUS + |
GA-Net bus communication signal |
| A13 |
Not used |
Not used |
- - - |
| Cavity |
Wire Color |
Terminal Name |
Description |
| A14 |
Not used |
Not used |
- - - |

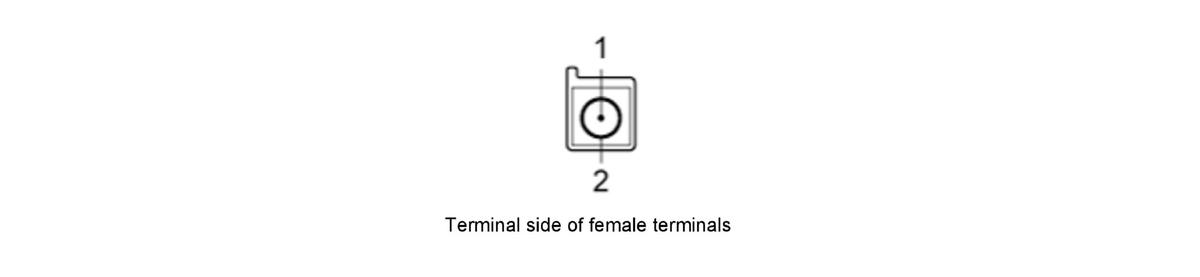

XM RECEIVER CONNECTOR B (2P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Wire Color |
Terminal Name |
Description |
| B1 |
- - - |
SAT/TERM |
Inputs satellite/terrestrial signal |
| B2 |
- - - |
SH (SAT/TERM) |
Shield for terminal No. 1 |
