Audio System Component Location Index (2018 2019 2020)

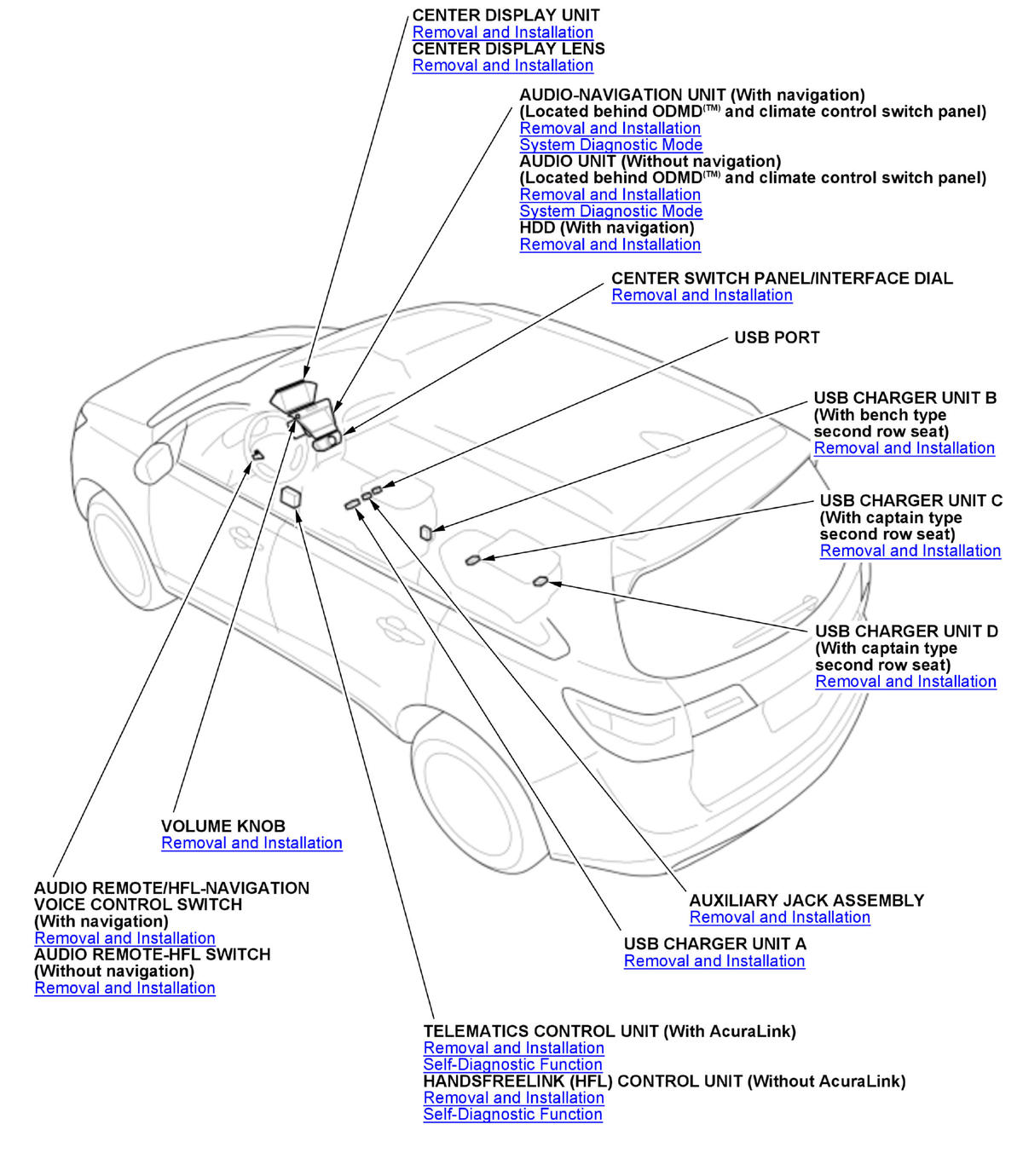

GHH314069Courtesy of HONDA, U.S.A., INC.

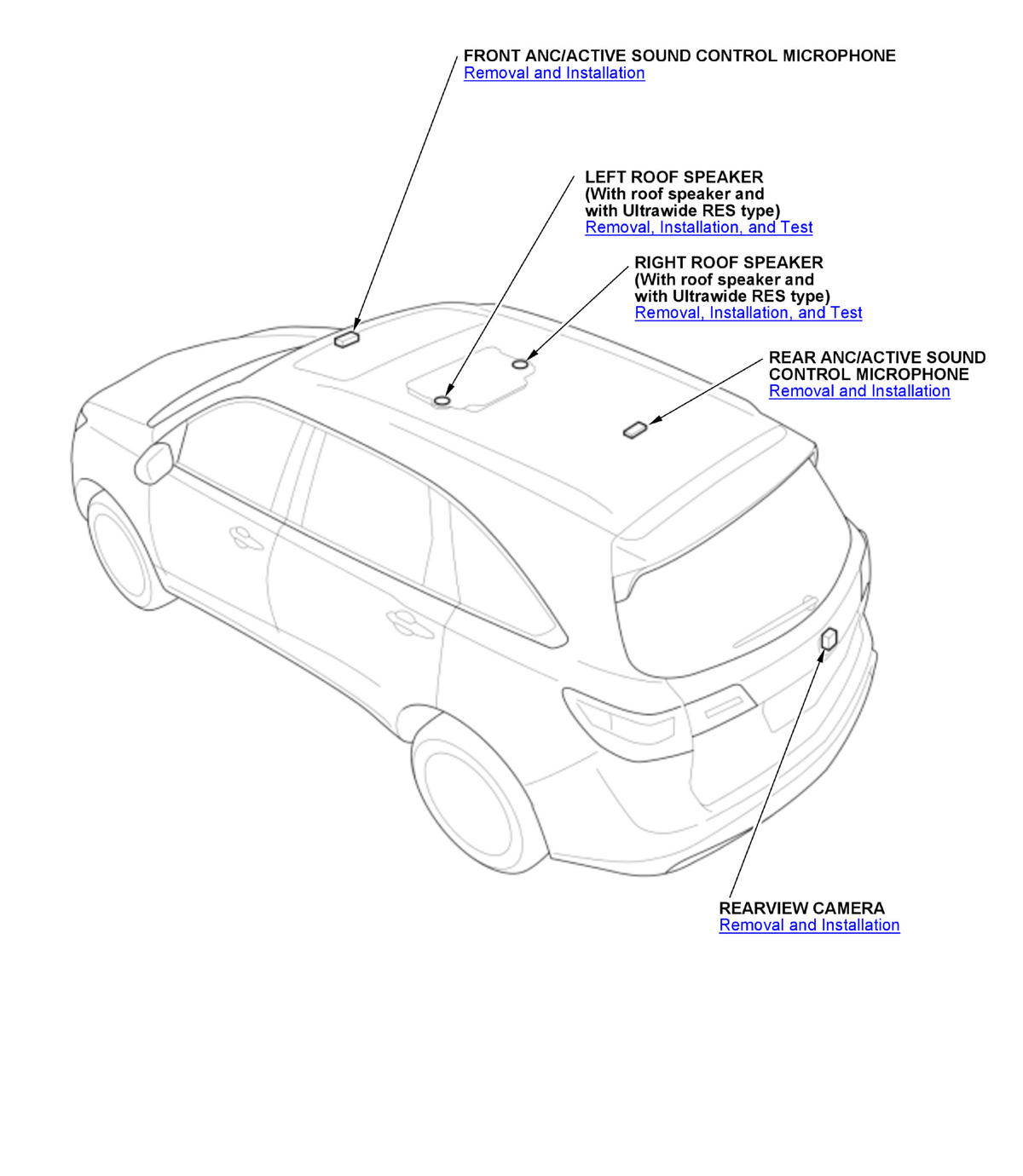

GHH314070Courtesy of HONDA, U.S.A., INC.

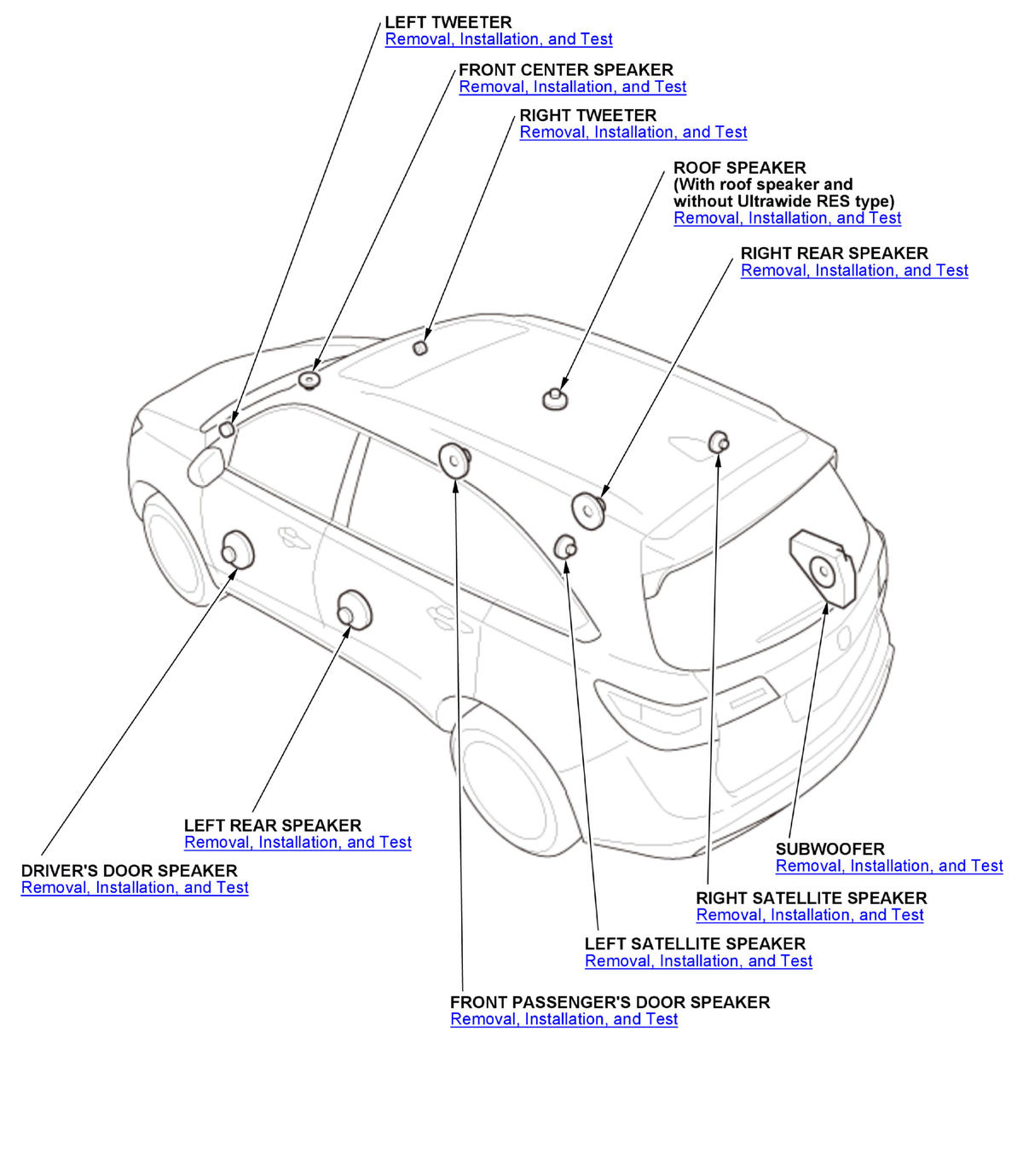

GHH314071Courtesy of HONDA, U.S.A., INC.

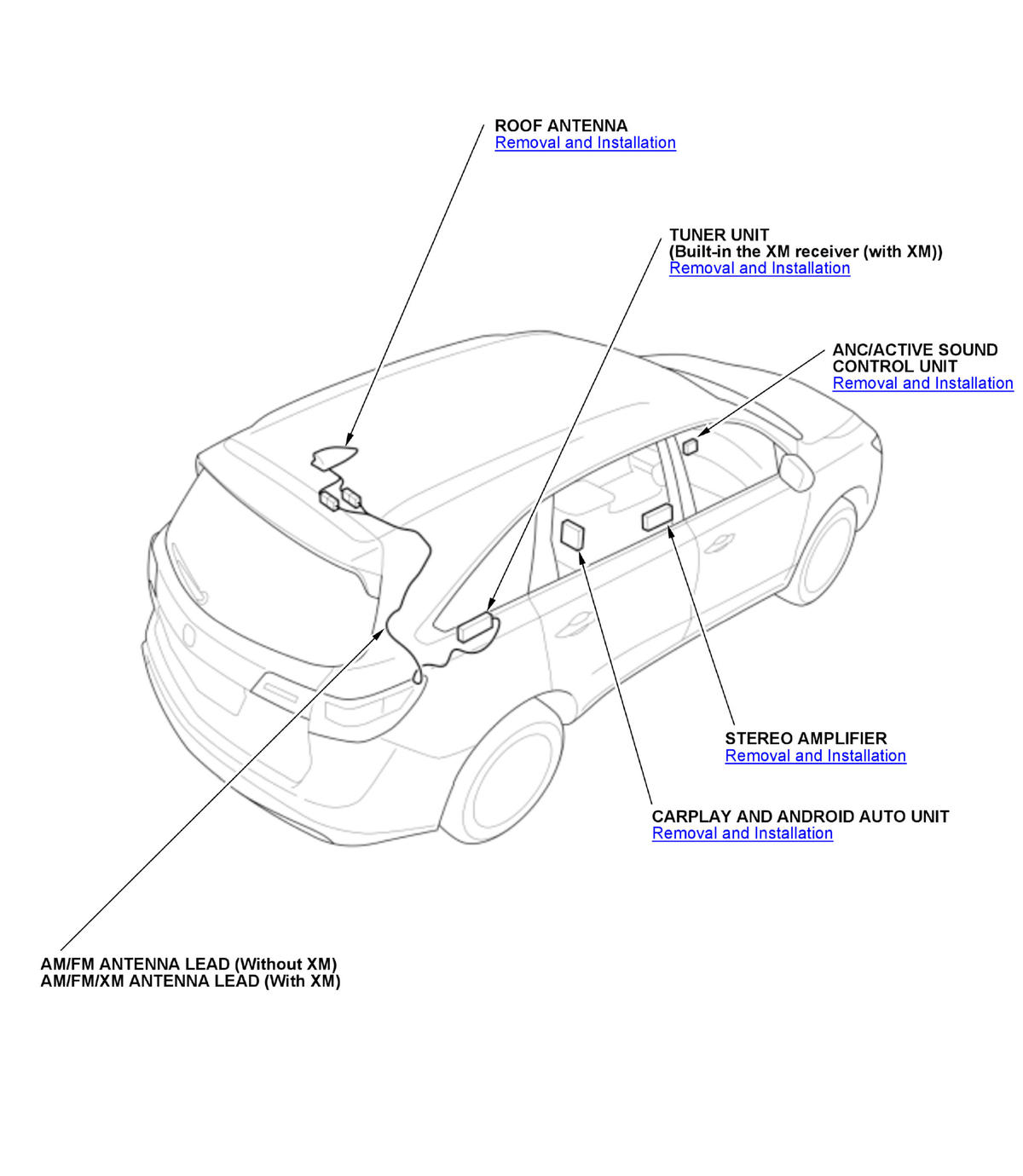

GHH314072Courtesy of HONDA, U.S.A., INC.
